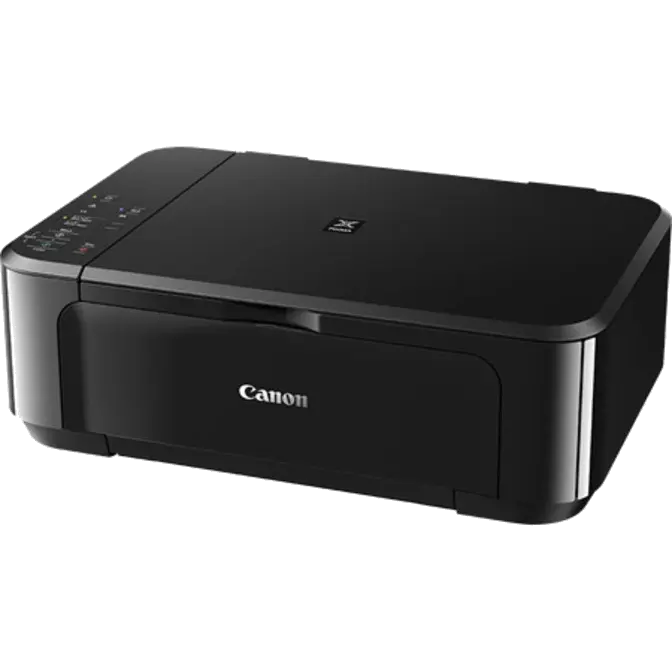

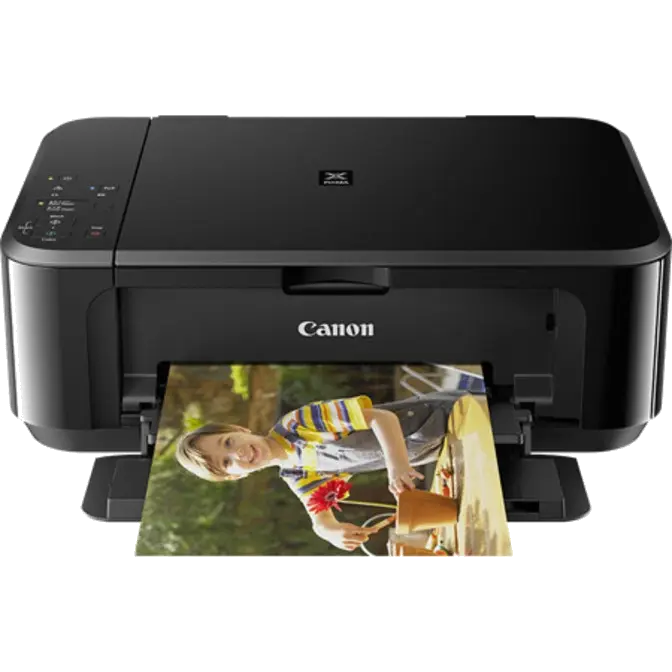

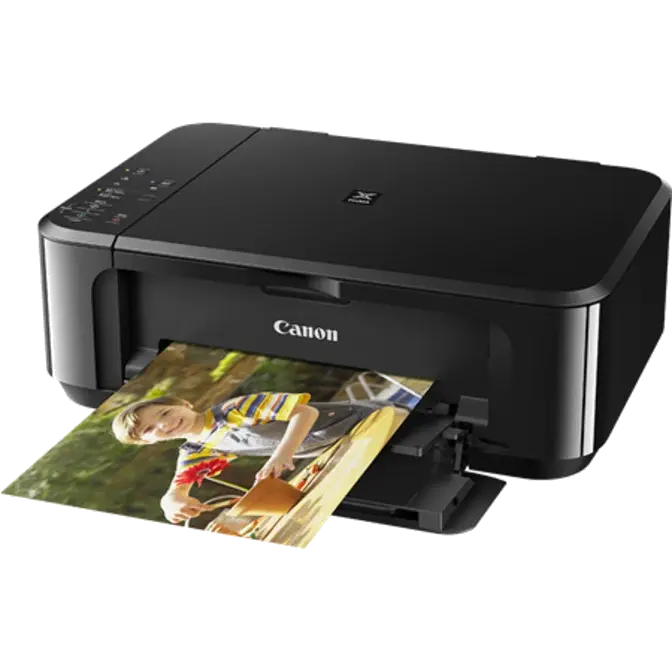

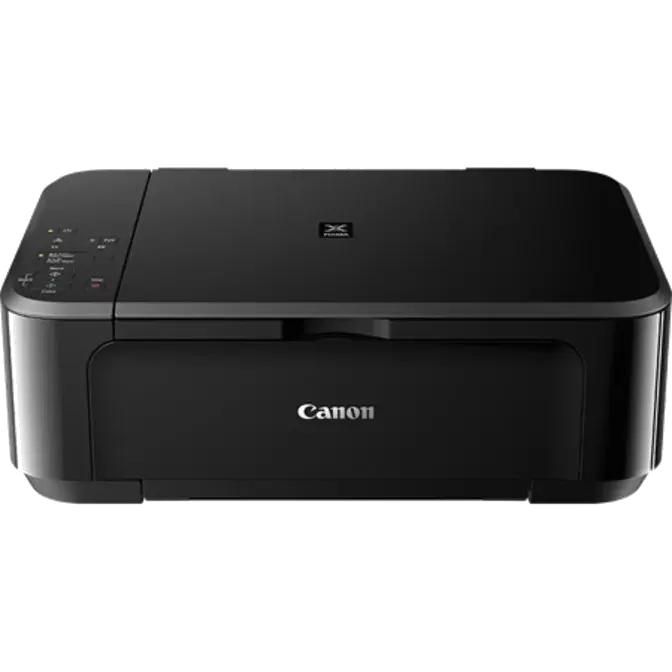

PIXMA MG3660 Technical Specifications
Printer Functions
Ink Droplet Size
2pl/5pl (C/M), 3pl/5pl(Y), 11pl (PGBK)
Printing Resolution1
4800 (horizontal) x 1200 (vertical) dpi
Print Speed2
B&W: 9.9 ipm, Colour: 5.7 ipm
Paper Capacity
A4, A5, B5, LTR=60, LGL=10, 4"x6" photo paper =20, 5"x7", 8”x10” photo paper =10, European DL/US Com. #10=5
Supported Paper Sizes
A4, A5, B5, LTR, LGL, 4"x6", 5"x7", Envelopes(DL, COM10), Custom size (width 101.6 mm - 215.9 mm, length 152.4 mm - 676 mm)
Supported Paper Weights
Plain Paper: 64-105 g/m2 , Canon specialty paper: max paper weight : approx. 275 g/m2 (Photo Paper Plus Glossy II (PP-201))
Protocol
TCP/IP
Frequency Band / Channel3
2.4GHz / 1-13
Wireless LAN Range
indoor 50m (depends on the transmission speed and conditions)
Wireless LAN Security
WEP64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
Wireless LAN Network Type
IEEE802.3u (100BASE-TX) / .11n/IEEE802.11g/IEEE802.11b
Camera Direct Printing
Available via PictBridge (Wireless LAN)
Mobile Phone/Tablet Printing
Print from any iOS device through Apple Air Print.
Camera / Card Printing
N/A
CD Printing
N/A
Interface
Hi-Speed USB (USB Port B)
Auto 2 Sided Printing
Available
Borderless
Available
Copier Functions
10 Speed4
Colour document: Approx. 22sec / 2.7ipm
Multiple Copy
1-21 pages
Reduction/enlargement
N/A
Scanner Functions
Scanner Type
Flatbed CIS
Scanning resolution5
1200 x 2400 optical dpi
Scanning Bit Depth (Input/ Output)
Grayscale; 16bit/8bit / Colour: 48bit/24bit (RGB each 16bit/8bit)
Scanning Speed (Reflective) 6
Approx. 14sec
Connectivity and Printing Solutions
NFC
N/A
PIXMA Cloud Link
Available through smartphone or tablet
PIXMA/MAXIFY Printing Solutions
Available
Mopria
Available
Apple Air Print
Available
Google Cloud Print
Available
General Features
Colour LCD Screen
N/A
Intelligent Touch System
N/A
Dual Paper Path
N/A
Operating System
Windows XP SP3 (32 Bit only), Windows Vista SP2, Windows 7, Windows 7 SP1, Windows 8, Windows 8.1, Windows 10.0, Mac OS X 10.7.5 or later, Mac OS EI X Capitan 10.11
Included as Standard
PIXMA MG3660 printer, Set up CD-ROM and operational guide, 2 individual ink tanks, sample photo paper, power chord and Canon warranty card. A-B USB cable to connect to computer not included
Software Included
MP Driver, XPS Printer Driver, Easy-WebPrint EX, MyPrinter, Quick Menu, My Image Garden, On-Screen Manual
Environment
Eco Label: Energy Star
Power Source
AC100 - 240V, 50/60Hz
Power Consumption
Off: Approx. 0.1W, Standby (scanning lamp is off) connection to PC: approx. 1.4W, Copying (USB connection to PC) approx. 16W7
Dimensions (W x D x H)
Approx. 449 x 304 x 152 mm
Weight
Approx. 5.4 kg
Footnotes
PIXMA MG3660
1. Ink droplets can be placed with a pitch of 1/4800 inch at minimum. 2. Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734. Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. 3. 1-11 in US, CND, LTN, BRA, TW and HK. 4. Copy speeds are the average of sFCOT and sESAT, ISO/IEC 29183. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warming up time. 5. Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard. 6. Colour document scan speed is measured with ISO/IEC 29183 Target A. Scan speed indicates the time measured between pressing the scan button of th
