Brateck LPA36-466 Economy Solid Full Motion TV Wall Mount for 37"-70" Up to 50kg

Web ID: 32542

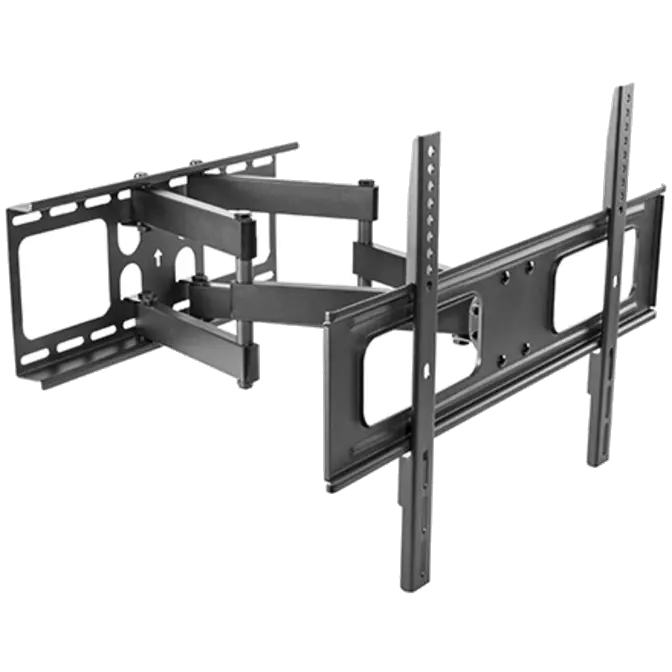

The LPA36-466 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70, 50kg/110lbs. This mount extends out 510mm from wall and allows TVs to turn 60 left or right. Full motion allows maximum flexibility tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to roll up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organized and protected. Wide wall plate fits for 406/450mm stud installation.
Manufacturer Warranty: 1 Year
Manufacturer PN: LPA36-466
GTIN: 9341756012789
Manufacturer Website

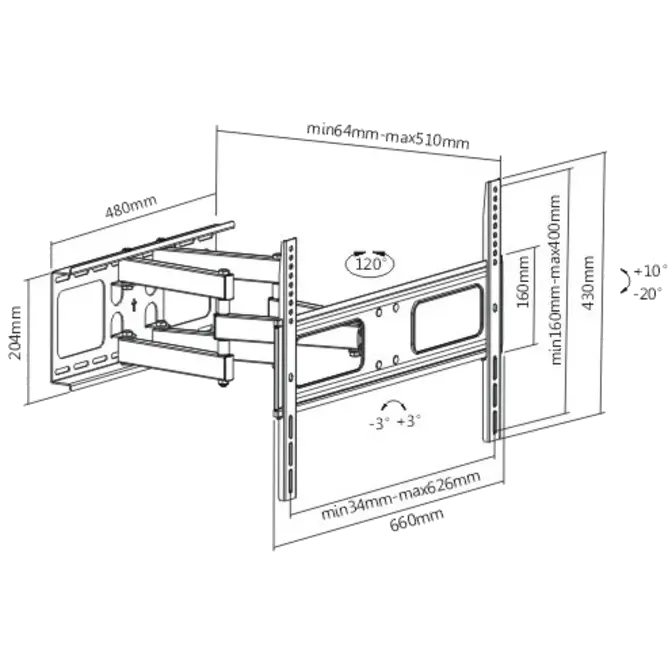

Dimensions510x660x430mm (20.1"x26"x16.9")
Fit Screen Size37"-70"
Fit Curved TVYes
Mounting Hole PatternUniversal
VESA Compatible200x200,300x300,400x200,400x400,600x400
Max. VESA600x400
Weight Capacity50kg (110lbs)
Profile64mm-510mm (2.5"-20.1")
Tilt Range-20°~+10°
Swivel Range-60°~+60°
Screen Level-3°~+3°
Screen Freely TiltingYes
InstallationSolid wall, Double Stud(406mm), Double Stud(450mm)
Panel TypeDetachable Panel
Wall Plate TypeFixed Wall Plate
Cable ManagementCable Management
