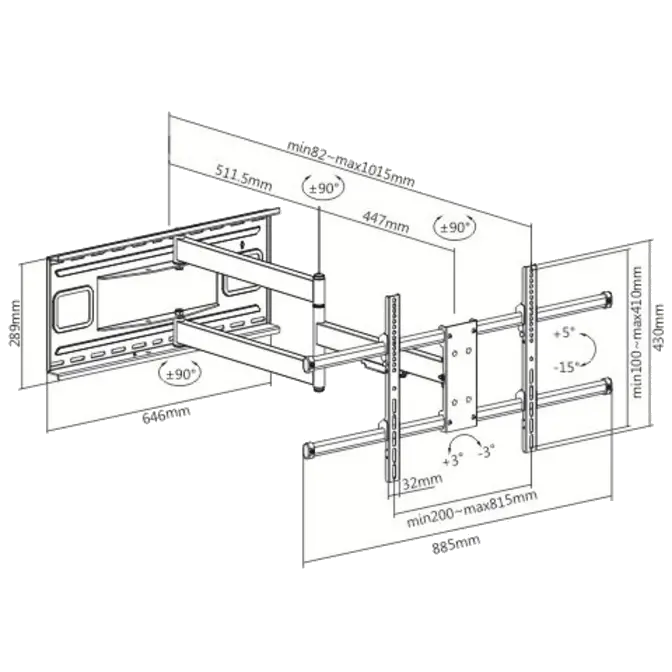

| Dimensions | 1015x885x430mm (40"x34.8"x16.9") |
|---|
| Fit Screen Size | 43"-80" |
|---|
| Fit Curved TV | Yes |
|---|
| Mounting Hole Pattern | VESA Only |
|---|
| VESA Compatible | 200×200,300×200,300×300,400×200,400×300,400×400,600×400,800×400 |
|---|
| Max. VESA | 800×400 |
|---|
| Weight Capacity | 50kg (110lbs) |
|---|
| Profile | 82~1015mm (3.2"~40") |
|---|
| Tilt Range | +5°~-15° |
|---|
| Swivel Range | +90°~-90° |
|---|
| Screen Level | +3°~-3° |
|---|
| Screen Freely Tilting | Yes |
|---|
| Installation | Solid Wall,Double Stud(406mm/450mm/600mm) |
|---|
| Panel Type | Detachable Panel |
|---|
| Wall Plate Type | Fixed Wall Plate |
|---|
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
|---|
| Pipe Size | 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube) |
|---|
| Direction Indicator | Yes |
|---|
| Cable Management | Yes |
|---|
| Bubble Level | Hook-on Bubble Level(Included in Components Package) |
|---|
