Display

• Brightness (ANSI lumens)

  2200

• Resolution

  4K UHD (3840×2160)

• Native Aspect Ratio

  16:9

• Contrast Ratio (FOFO)

  (w/ Lightsource Dimming), 600,000:1

• Display Color

  30-bit (1.07 billion colors)

• Light Source

  4LED

• Light Source Life

  a. Normal 20000 hrs, b. ECO 30000 hrs

Optical

• Throw Ratio

  0.69~0.83

• Zoom Ratio

  1.2x

• Lens

  F / # = 2.53~2.73 , f = 10.2~12.24 mm

• Projection Offset (Full-Height)

  102.5%

• Keystone Adjustment

  2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees


• DCI-P3 Coverage

  84%

• Rec. 709 Coverage

  95%

• Picture Modes

  3D, Bright, Cinema, FPS, HDR FPS, HDR RPG, HDR SPG, HDR10, RPG, SPG

Compatibility

• Input Lag

  16.7 ms (1080P 60Hz), 16.7ms (2K 60Hz)*downscaling to 1080p 60Hz, 16.7 ms (4K 60Hz), 4.2 ms (1080P 240Hz), 8.3 ms (1080P 120Hz), 8.3ms (2K 120Hz) *downscaling to 1080p 120Hz

• Resolution Support

  VGA (640 x 480) to 4K UHD (3840 x 2160)

• Horizontal Frequency

  15K~135KHz

• Vertical Scan Rate

  23~240Hz

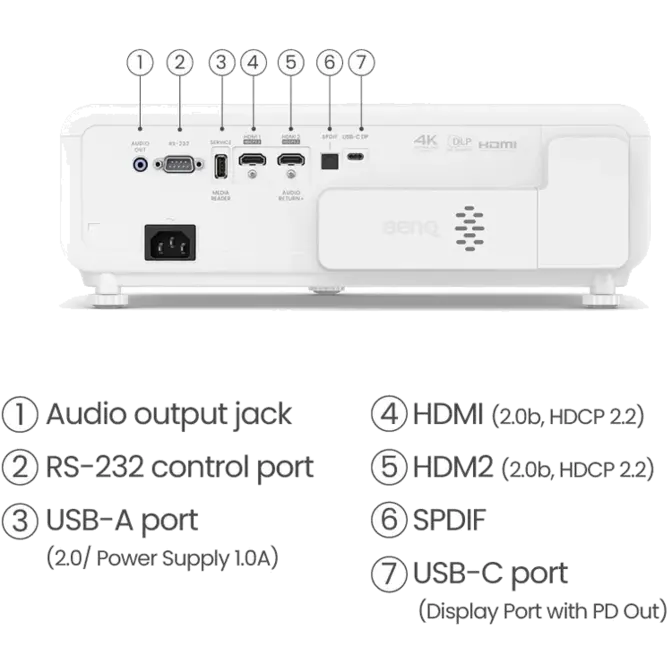

I/O Interface

• HDMI in

  HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

• USB Type A

  USB Type A-1 (2.0/Power Supply1.0A/Reader/FW Upgrade)

• USB Type C

  (x1), Display Port with PD out 5V/1A

• RS232 in (DB-9pin)

  (x1)

Audio

• Speaker

  (x2), 5W

• Audio out (3.5mm Mini Jack)

  (x1)

• HDMI Audio Return

  Yes, eARC, Dolby Atmos

• S/PDIF

  Multi-Channel, RAW

Environment

• Operating Temperature

  0~40?

• Power Supply

  AC 100 to 240 V, 50/60 Hz

• Typical Power Consumption (110V)

  236W

• Stand-by Power Consumption

  <0.5W

• Acoustic Noise (Typ./Eco.)(dB)

  31/29

Accessories

• Android TV dongle

  QS02

• Remote Control w/ Battery

  RCI074

• Power Cord (by region)

  x1 (1.8M)

• Quick Start Guide

  (x1) 21L

• Warranty Card (by region)

  Yes

Smart System

• Built-in OS

  Yes, Android 11.0

• Bluetooth

  Yes, Bluetooth 5.0

• Wi-Fi Standard

  802.11 a/b/g/n/ac (2.4G/5G)

• Wireless Projection

  AirPlay, Google Cast

• Preload Apps

  Netflix

Dimension & Weight

• Dimensions (WxHxD) (mm)

  366 x 118 x 244

• Net Weight (kg)

  3.6

Projection System

• Projection System

  DLP
