Display

• Brightness (ANSI lumens)

  2000

• Native Resolution

  4K UHD (3840×2160)

• Native Aspect Ratio

  16:9

• Contrast Ratio (FOFO)

  (w/ Dynamic Iris), 30,000:1

• Display Color

  30-bit (1.07 billion colors)

• Light Source

  Lamp

• Light Source Life

  a. Normal 4000 hrs, b. ECO 10000 hrs, c. SmartEco 15000 hrs

Optical

• Throw Ratio

  1.13~1.47

• Zoom Ratio

  1.3x

• Lens

  F/# = 1.9 - 2.47, f = 12 - 15.6 mm

• Projection Offset (Full-Height)

  100%

• Keystone Adjustment

  1D, (Auto) Vertical ± 30 degrees

• Lens Shift Vertical

  0%~+10%


• DCI-P3 Coverage

  95%

• Rec. 709 Coverage

  100%

• Picture Modes

  3D, Bright, Cinema, D. Cinema, HDR, HLG, ISF Day, ISF Night, Silence, User, Vivid TV

Compatibility

• Input Lag

  83.34ms (1080p@60Hz), 83.34ms (4K@60Hz)

• Resolution Support

  VGA (640 x 480) to 4K UHD (3840 x 2160)

• Horizontal Frequency

  15K~135KHz

• Vertical Scan Rate

  23~120Hz

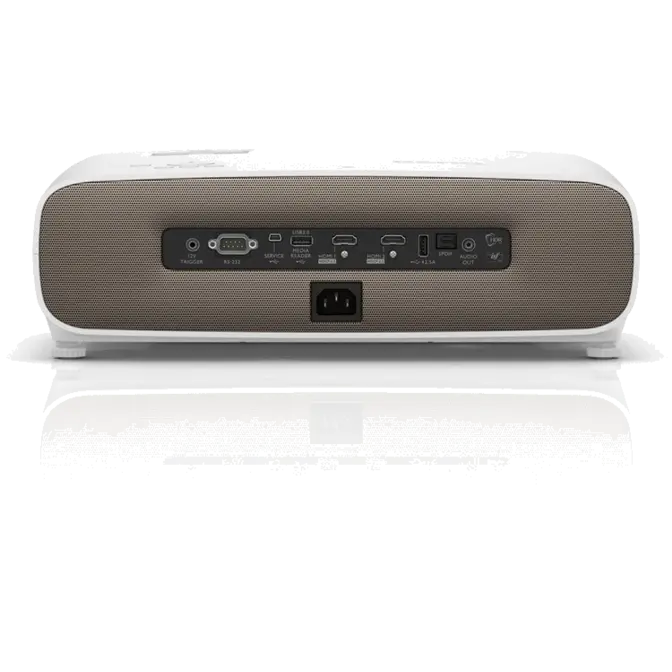

I/O Interface

• HDMI in

  (x3), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2), HDMI-Internal (2.0b/HDCP2.2)

• USB Type A

  , USB Type A-1 (3.0/Power Supply1.0A/Reader), USB Type A-3 (2.0/Power Supply2.5A)

• USB Type Mini B

  (x1), USB Type Mini B-1(service)

• RS232 in (DB-9pin)

  (x1)

• DC 12V Trigger (3.5mm Jack)

  (x1)

Audio

• Speaker

  (x2), 5W Chamber

• Audio out (3.5mm Mini Jack)

  (x1)

• HDMI Audio Return

  Yes, ARC, 2 channel

• S/PDIF

  2-Channel, PCM

Environment

• Operating Temperature

  0~40?

• Power Supply

  AC 100 to 240 V, 50/60 Hz

• Typical Power Consumption (110V)

  330W

• Stand-by Power Consumption

  <0.5W

• Acoustic Noise (Typ./Eco.)(dB)

  30/28

Accessories

• Android TV dongle

  (Standard), QS01

• Remote Control w/ Battery

  RCI067, RCV017

• Power Cord (by region)

  (Standard), x1 (3.0M)

• 3D Glasses

  (Optional), DGD5

• Quick Start Guide

  (x1) 21L

• Warranty Card (by region)

  Yes

• Lens cover

  Yes

• Universal Ceiling Mount

  (Standard), CM00G3

Smart System

• Built-in OS

  Yes, Android 10.0

• Bluetooth

  Yes, Bluetooth 4.2

• Wi-Fi Standard

  802.11 a/b/g/n/ac (2.4G/5G)

• Wireless Projection

  Google Cast

Dimension & Weight

• Dimensions (WxHxD) (mm)

  380 x 127 x 263

• Net Weight (kg)

  4.2

• Dimensions (WxHXD) (inch)

  14.96 x 4.99 x 10.35

• Net Weight (lb)

  9.25

Projection System

• Projection System

  DLP
