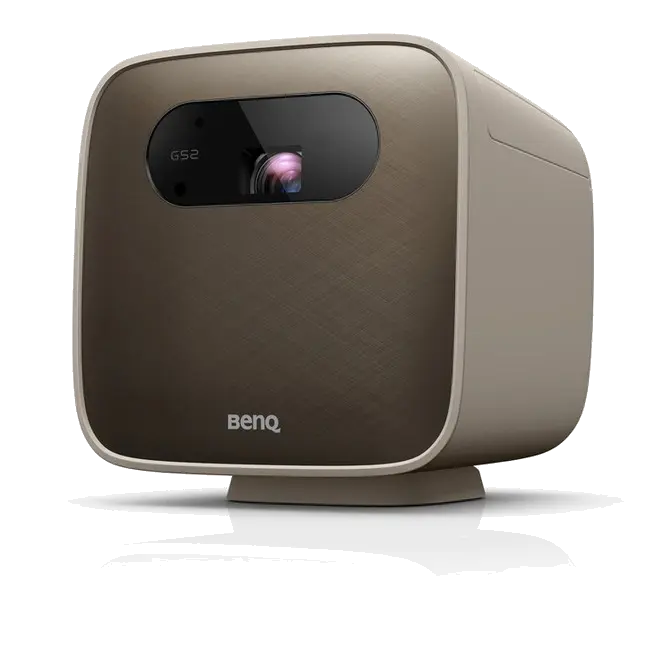

BenQ GS2 Wireless Portable LED Projector
Web ID: 32405
Splash-proof, Drop-proof, Eye-Protection Sensor and Parental Timer designed with your child in mind
Wireless cast, HDMI, USB Type-C, USB for multi-connectivity
NOTE: Copyrighted content from Netflix, Hulu, and similar services CANNOT be mirrored or screencast. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: GS2
GTIN: 4718755077951
Manufacturer Website
Native Resolution
720p (1280x720)
Native Aspect Ratio
16:9
Brightness (ANSI lumens)
500
Contrast Ratio (FOFO)
100,000:1
Selectable Aspect Ratio
16:10,16:9,4:3,Auto
Display Color
30-bit (1.07 billion colors)
Light Source
LED
Light Source Life
a. Normal 20000 hrs,b. ECO 30000 hrs
Projection System
DLP
Native Resolution
720p (1280 x 720 pixels)
Native Aspect Ratio
Native 16:9 (5 aspect ratio selectable)
Brightness (ANSI luments)
500 ANSI Lumen (About 1200 LED lumens & 8300 Light Source Lumens)
DMD type
0.3"
Contrast Ratio (FOFO)
100,000:1
Display Color
1.07 billion colors
Light Source
Osram Q8A LED
Light Source Life
20,000/30,000 hrs (Normal/ Eco)
Dimension & Weight
Dimensions (WxHxD) (mm)
139mm x 144mm x 139mm
Net Weight (kg)
1.6kg
Marketing
Product Features
1. IPX2 and 0.5 meter Drop Proof for Outdoor Care 2. LumiExpertTM and Eye-Protection Sensor for Eye Care 3. Wireless projection* for multiple OS and devices 4. 15°Tiling and Auto Focus Lens 5. Corner Fit 6. 3 Hours Battery Life 7. 2 Wattage Chamber Speakers with BT Speaker Mode 8. BenQ Smart Control App for Mobile Devices
Optical
Throw Ratio
1.3
Zoom Ratio
Fixed
Lens
Fixed
Projection Offset (Full-Height)
100%
Keystone Adjustment
1D, (Auto) Vertical ± 40 degrees
Clear Image Size
30"~100"
Throw Ratio
1.3 (80"@2.3m)
Zoom Ratio
Fixed
Lens
Auto Focus
Projection Offset(Full-Height)
100% ± 5%
Keystone Adjustment
1D, Vertical +/- 40 degrees
Projection Size (Clear Focus / Maximum)
30"~100"
Compatibility
Input Lag
34 ms (1080p@60Hz)
Resolution Support
VGA(640 x 480) to Full HD(1920 x 1080)
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~85Hz
Resolution Support
VGA(640 x 480) to Full HD(1920 x 1080)
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM / HDTV
Horizontal Frequency
15~ 102KHz
Vertical Scan Rate
23~85Hz

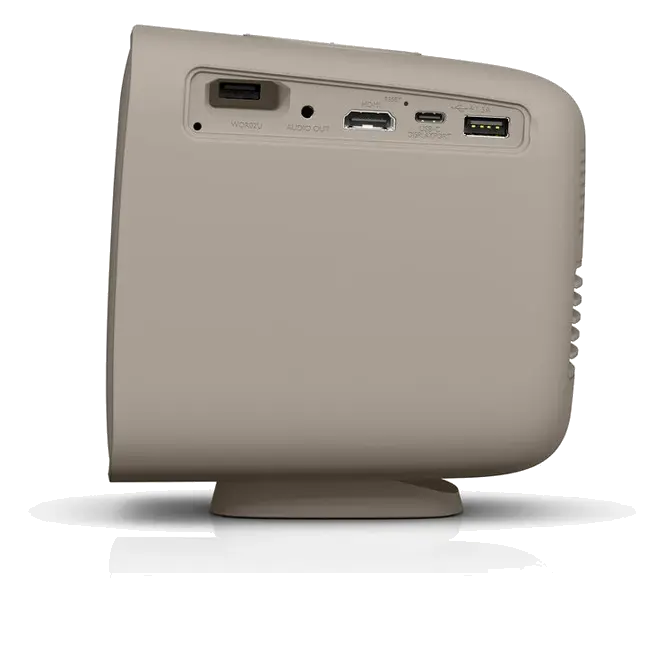

I/O Interface
HDMI in
(x1),HDMI-1 (1.4a/HDCP1.4)
USB Type A
USB Type A-1 (2.0/Power Supply1.5A/Reader)
USB Type C
USB Type C-1 (2.0/DisplayPort Alt Mode/Reader)
Audio
Speaker
(x2),2W
Speaker
2W x 2
Environment
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
42W@100 ~ 240VAC
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
31/29 dBA
Operating Temperature
0~40?
Accessories
Wireless USB dongle
WDR02U
Carry Bag
Yes
Remote Control w/ Battery
RCI014
Power Cord (by region)
x1 (1.8M)
Quick Start Guide
1 (12L)
Warranty Card (by region)
Yes
Battery
(Standard)
OSD
Launcher
Smart Home
OSD Language
English/ French/ German/ Japanese/ Korean/ Portuguese/ Simplified Chinese/ Spanish/ Traditional Chinese (9 Languages)
Smart System
Built-in OS
Yes, Android 6.0
Bluetooth
Yes, Bluetooth 4.0
Dimension and Weight
Dimensions (W x H x D) (mm)
139 x 144 x 139
Net Weight (kg)
1.6 KG
SoC
IC
MStar 648
OS
Android 6.0
RAM
2G LPDDR3
Flash
8G EMMC
Internet
WLAN
IEEE 802.11 a/b/g/n/ac, 2.4G/5G
Antenna
Yes
Interface
HDMI (1.4a) / HDCP (1.4)
X1
USB 2.0 (Type A)
X1
Audio Out
X1 (3.5mm)
USB Type-C
X1
Light Sensor
Yes
Wireless
WiFi
IEEE 802.11 a/b/g/n/ac, 2.4G/5G
Bluetooth
4.0
Special Feature
LumiExpert
Yes
Feature
IPX2, Parental Timer, LumiExpert, Wireless Projection* (for iOS/macOS, for AndroidTM, for PC), USB-C DisplayPort and Reader, 15°Tiling Lens, Auto Focus, Auto Keystone, 3 Hours Battery
Power
Typical Power Consumption
65W / 42W / 30W (Max / Normal / Eco)
Standby Power Consumption
0.5W Max. at 100 ~ 240VAC
Power Supply
VAC 100 ~ 240 (50/60Hz)
Operation Condition
Noise Level (Normal/Eco)
31/29 dBA
Operating Temperature
0~40?
Accessories (Standard)
Power Adaptor
X1
Plug set (depends on SKU)
Yes
USB-C™ wire (for DP alt mode and data transfer)
X1
Carry Bag
X 1
Remote Control w/ Battery (RC model name)
X 1
Power Cord (by region)
X 1
Quick Start Guide
Yes
Warranty Card (by region)
Yes
Accessories (Optional)
Wireless USB Dongle
X1 WDR02U (Detachable)
* The wireless projection and Bluetooth features are supported by detachable BenQ Wireless Dongle, WDR02U.
* The performance of WLAN and Bluetooth might be disturbed by distance and obstacles.
* LED life results will vary depending on environmental conditions and usage. The actual product's features and specifications are subject to change without notice.
* The Contrast is measure by Full On Full Off standard.
