Audioengine N22 Gen 2 Desktop Power Amplifier With USB-C
Web ID: 39388
The N22 is an easy-to-use integrated amplifier that drives a wide range of speakers (and headphones) with authority and includes a number of inputs (analog input, wireless capability) to seamlessly integrate your music sources with your speakers. Plus, the N22's versatility extends to its seamless compatibility with our P4's or any legacy passive speakers of your choice.
Manufacturer Warranty: 3 Year
Manufacturer PN: 90054250
GTIN: 819955220018
Manufacturer Website
Type
Compact Integrated Stereo Amplifier
Power output
22W RMS / 100W peak channel (AES) @ 4ohms
Amplifier type
Dual Class D TDA 7492 amplifier
Input voltages
110-240V, 50/60Hz auto-switching

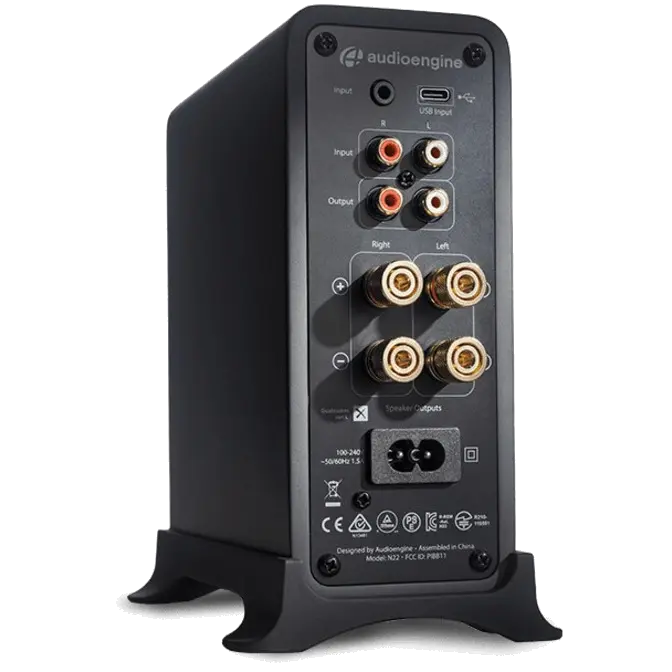

Inputs
RCA and 1/8″ (3.5mm) mini-jack
USB-C
Outputs
RCA variable preamp
Speaker outputs
5-way binding posts
SNR
>95dB A-weighted
THD+N
<0.02% at all power settings
Crosstalk
-50dB
Frequency response
20Hz-22kHz ±1dB
Input impedance
10K ohms unbalanced
Input sensitivity
410mV (@max volume)
Protection
Output current limiting, thermal over-temperature, power on/off transient protection
Headphone amplifier
Burr-Brown/TI OPA2134
Dimensions
7″(H) x 2.75″(W) x 5.5″(D)
Weight
3.55 lbs (1.6kg)
Shipping weight
5.0 lbs (4.6kg)
Shipping box dims
11.5″(H) x 7.5″(W) x 9.5″(D)
Finish
Satin Black
Upstanding design
The vertical design of the N22 with its integrated stand allows the 22 watt/per channel stereo class D TDA 7492 amplifier to run cool through passive convection without a fan or massive heatsink. The N22 fits easily on your desk and doesn’t take up much space.
Discrete headphone amplifier
For headphone enthusiasts the N22 includes a high-performance, low-noise discrete amplifier which works well with all types of headphones and earphones.
USB power
The Audioengine N22 has a built-in power port for charging portable devices, while listening to your music. The USB connector allows you to charge and power your Smartphone, Tablet, Audioengine wireless adapters or any other USB powered product. USB is for power only, not USB audio or data transfer.
Variable line out
The N22 includes a variable preamp output so you can connect a subwoofer, external amplifier, or Audioengine wireless adapter and control the volume of the line-out from the front panel.
Simple operation
Both audio inputs on the N22 are active so two audio sources may be connected to the amplifier at the same time without the need for an input switch. A standby idle mode is also included to conserve power when you’re not playing music.
Wireless rear speakers
Use the N22 amp, Audioengine P4 passive speakers, and our W3 wireless adapter for a low-cost but great-sounding wireless rear channel setup for your home theater.
