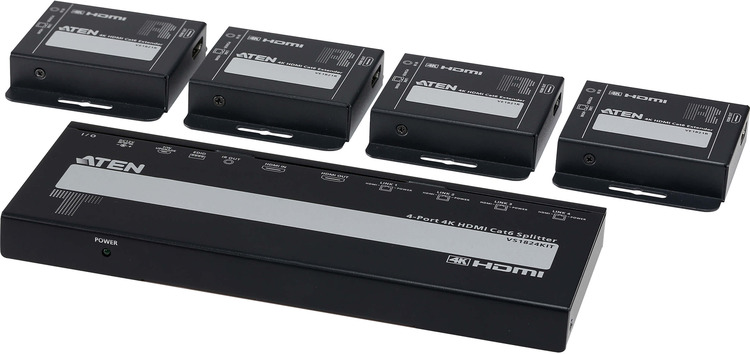

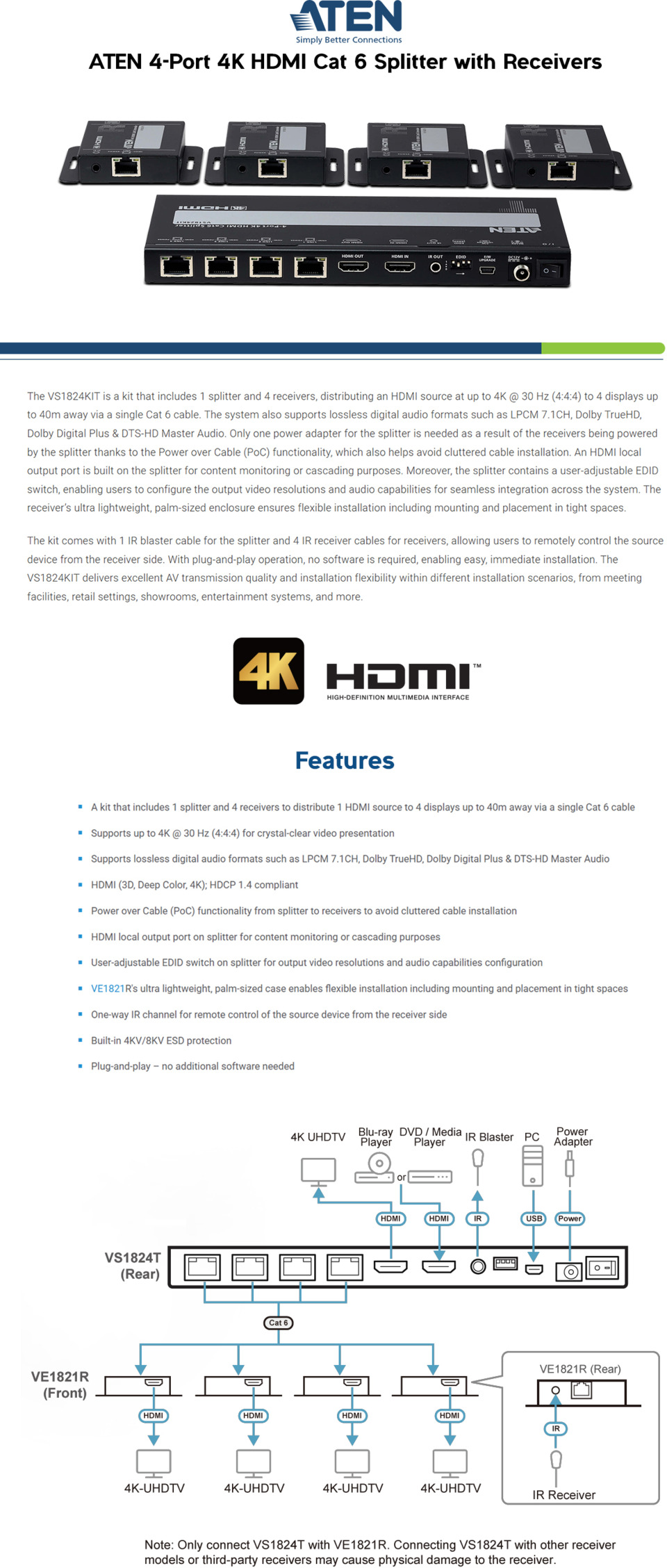

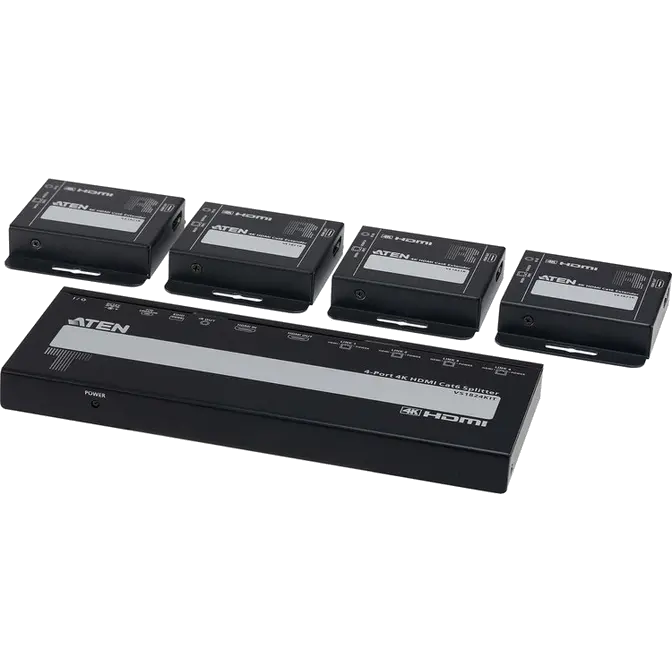

A kit that includes 1 splitter and 4 receivers to distribute 1 HDMI source to 4 displays up to 40m away via a single Cat 6 cable
Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration
Display Input: HDMI In
Display Output: HDMI Out
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ω |
| Max. Distance | N/A | 3 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω | 100 Ω |
| Max. Distance | 3 m | 3 m |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible |
HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible |
| Max. Resolutions / Distance | Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Control | ||
| IR Channel | 1 x Mini Stereo Jack Female (Black); (NOTE1) |
1 x Mini Stereo Jack Female (Black); (NOTE1) |
| Connectors | ||
| Unit To Unit | 1 x RJ-45 Female | 4 x RJ-45 Female |
| Power | 1 x RJ-45 Female (Power over Cable, power supply from VS1824T) |
1 x DC Jack (Black) with locking |
| Maintenance | N/A | Micro USB for F/W upgrade |
| Switches | ||
| Mode Switch | N/A | EDID Mode Selection |
| Power | N/A | Power ON/OFF |
| Power Consumption | 11WBTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
11WBTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0 - 40°C | 0 - 40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 20 - 90% RH, Non-Condensing | 20 - 90% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.12 kg ( 0.28 lb ) | 0.44 kg ( 0.99 lb ) |
| Dimensions (L x W x H) with bracket | 7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.) |
N/A (Housing comes without bracket) |
| Dimensions (L x W x H) without bracket | 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.) |
21.00 x 8.20 x 1.80 cm (8.27 x 3.23 x 0.71 in.) |
| Note | NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. NOTE 2: The maximum power consumption assumes that all receivers in the package are installed. |
NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. NOTE 2: The maximum power consumption assumes that all receivers in the package are installed. |
| Input Resolutions | 640x480 @ 60/67/72/75 Hz | 1080p 60 Hz |
| 720x400 @ 70 Hz | 480p 60 Hz (4:3)/(16:9) | |
| 1024x768 @ 60/70/75 Hz | 720p 60 Hz | |
| 1280x800 @ 60 Hz | 1080i 60 Hz | |
| 1280x1024 @ 60/75 Hz | 640x480 60Hz (4:3) | |
| 1400x1050 @ 60 Hz | 576p 50 Hz (4:3)/(16:9) | |
| 1440x900 @ 60 Hz | 720p 50 Hz | |
| 1600x1200 @ 60 Hz | 1080i 50 Hz | |
| 1680x1050 @ 60 Hz | 1080p 24/25/30/50 Hz | |
| 1920x1080 @ 60 Hz | 3840x2160p 24/25/30 Hz | |
| 1920x1200@ 60 Hz | 4096x2160p 24/25/30 Hz |
