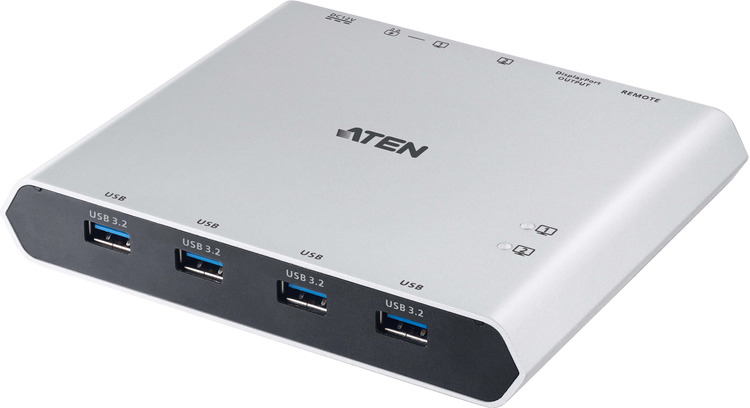

ATEN US3311 2-Port 4K DisplayPort USB-C KVM Switch with Power Pass-Through
Web ID: 46406
2-in-1 solution for 2 USB-C host devices combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
Supports DP 1.4 Alt Mode
Superior video quality up to 8K 7680 4320, 4K 3840 x 2160 @ 144 / 120 / 60 Hz
Supports PD 3.0 up to 100 W USB PD charging, allows your laptop to obtain the maximum power via your USB-C power adapter
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: US3311-AT-U
Manufacturer Website
$239
| Computer Connections | 2 |
| Connectors | |
| Computer | CPU1: 1 x USB Type C Female CPU2: 1 x USB Type C Female |
| Device | 4 x USB 3.2 Gen 1 Type-A Female |
| Video Output | 1 x DisplayPort Female |
| Power | 1 x DC jack for 12V 3.3A 1 x USB-C Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output Port 2 : Supports max. 5V, 3A output *Supports maximum 100W USB-C PD power adapter input. |
| Port Selection | |
| Input | Port Switch Button |
| Video Resolution | 3840 x 2160@60 3840 x 2160@120 3840 x 2160@144 7680 x 4320 Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz. |
| System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and later, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311's user manual. iPadOS 13.1 and later, iPad Pro (USB-C)* *Support video output in mirror mode iOS 17.1 and later* *Compatible with the Apple iPhone 15 Pro series. |
| Power | |
| Maximum Input Power Rating | DC12V, 3.3A |
| Power Consumption | DC12V:1.68W:117BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| LEDs | |
| Selected | 2 (White) |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.35 kg ( 0.77 lb ) |
| Dimensions (L x W x H) | 14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
