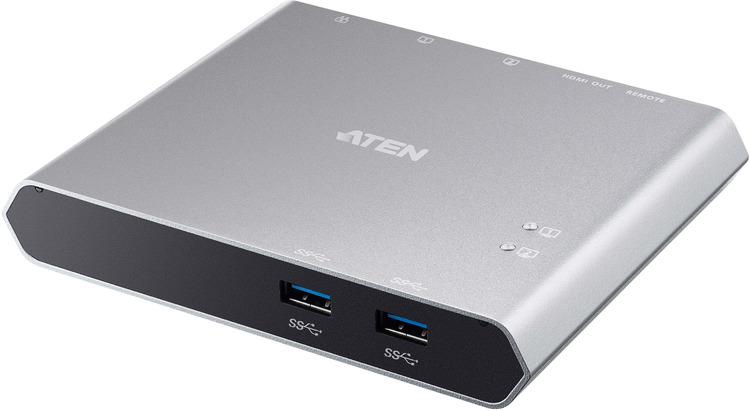

ATEN US3310 2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-Through
Web ID: 46405
Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals
Compatible with Apple M1 / M2 chip devices; provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter is needed)
Supports 4K resolutions up to 3840 x 2160 @ 30Hz
Video DynaSync allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: US3310-AT
Manufacturer Website
$209
| Computer Connections | 2 |
| Connectors | |
| Computer | USB 3.2 Gen 1 Type-C Port 1 (Laptop) USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode) |
| Device | 2 x USB 3.2 Gen 1 Type-A Female |
| Video Output | 1 x HDMI Female |
| Power | 1 x USB-C DC-in Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output* Port 2 : Supports max. 5V, 2A output *Supports maximum 100W USB-C PD power adapter input. *For device charging, a Limited Power Source (LPS) certi?ed USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A. *The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1. |
| Port Selection | |
| Input | Remote port selector |
| Video Resolution | Up to 3840 x 2160@30hz |
| System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual. iOS 12.1 and above, iPad Pro 3rd generation (2018)*** *** For better HID experience, iPad OS 13 and above is recommended. |
| Power Consumption | DC5V:1.24W:406BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| LEDs | |
| Selected | 2 (White) |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.33 kg ( 0.73 lb ) |
| Dimensions (L x W x H) | 14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
