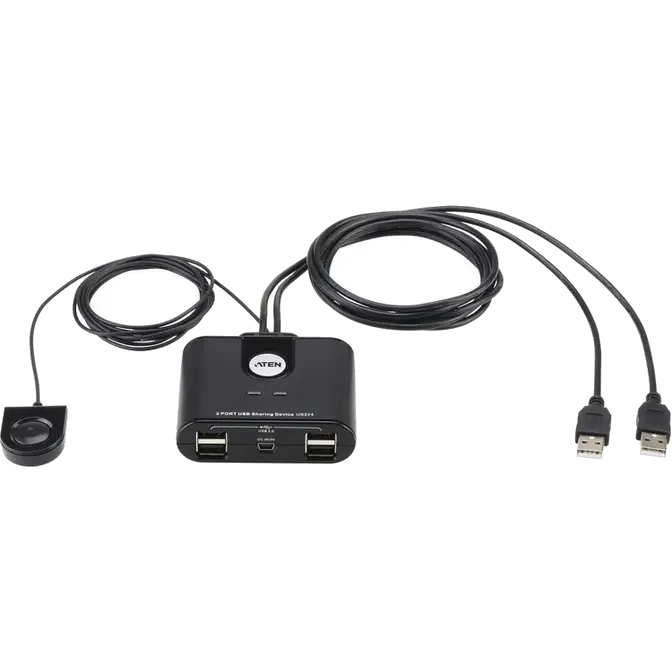

The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installation – no need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.

For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US224 is the ideal way to share USB peripherals in a multimedia office environment.

4 built in USB ports – all-in-one design allows for a neat and tidy installation that reduces cable clutter
Enables 2 computers to share 4 USB devices – a USB keyboard, mouse and up to two peripheral devices
Simple port selection via remote port selector for convenient switch placement
USB 2.0 compliant
Multiplatform support – Windows, Linux ,Mac and Sun
LED indicators display port focus
Overcurrent protection
Non-powered (supports optional USB power adapter)
Hot pluggable

Computer Connections	2
Port Selection	Remote port selector
Connectors
Computer	2 x USB Type A Male (Black)
Device	4 x USB Type A Female (Black)
Power (Optional)	1 x USB mini B Female (Black)
Cable Length
USB Cable	2 x 1.2 m
Remote Port Selector	1.8 m
LEDs
Selected	2 (Green)
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.14 kg ( 0.31 lb )
Dimensions (L x W x H)	8.24 x 6.65 x 2.53 cm (3.24 x 2.62 x 1 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
