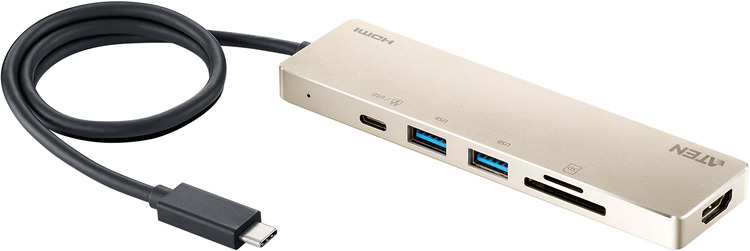

ATEN UH3239 USB-C Multiport Mini Dock with Power Pass-Through
Web ID: 46408
6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter power profiles include 5V, 12V, 15V, 20V
Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video distribution
Compatible with Apple M1 chip devices; works with all major operating systems: Windows, macOS X, and iPadOS
Display Input: USB-C In
Display Output: HDMI Out
USB-A Ports: 2
USB-C Ports: 1
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UH3239-AT
Manufacturer Website
$69
| Computer Connections | 1 |
| Cable Length | 55cm |
| Connectors | |
| Computer | USB 3.2 Gen1 Type-C Male Cable |
| Device | 2 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W for each)* 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12W)* * 2 x USB-A and 1 x USB-C ports share total 5V, 12W when UH3239 powered by PC via USB-C. (@5V,3A bus-powered) |
| Power | 1 x USB Type-C Female (supports USB 3.2 Gen1 Type-C Port data transfer) Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed) |
| Video Output | 1 x HDMI Female (Black) |
| Performance | |
| Flash Memory | Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0 SD (Capacity up to 2GB) SDHC (Capacity up to 32GB) SDXC (Capacity up to 2TB) |
| Video Resolution | 3840 x 2160@30Hz |
| Power Consumption | DC5V:15WBTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| System Requirements | Windows 10 or later, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 or later, USB-C enabled computer iPadOS 13.1 or later, iPad Pro (USB-C) |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.07 kg ( 0.17 lb ) |
| Dimensions (L x W x H) | 13.30 x 3.60 x 1.10 cm (5.24 x 1.42 x 0.43 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
