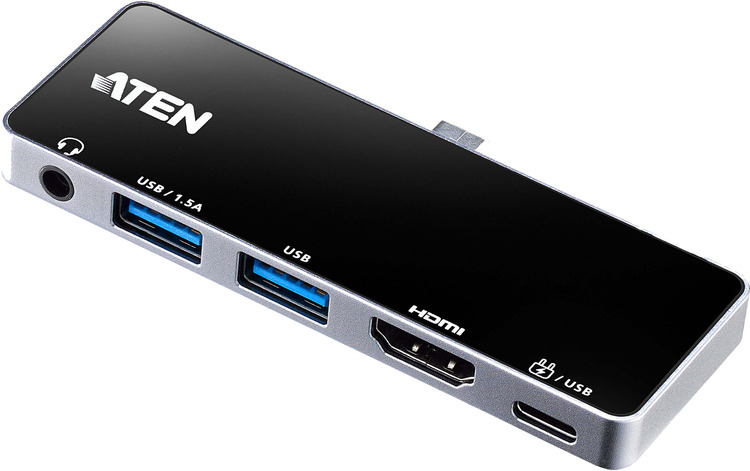

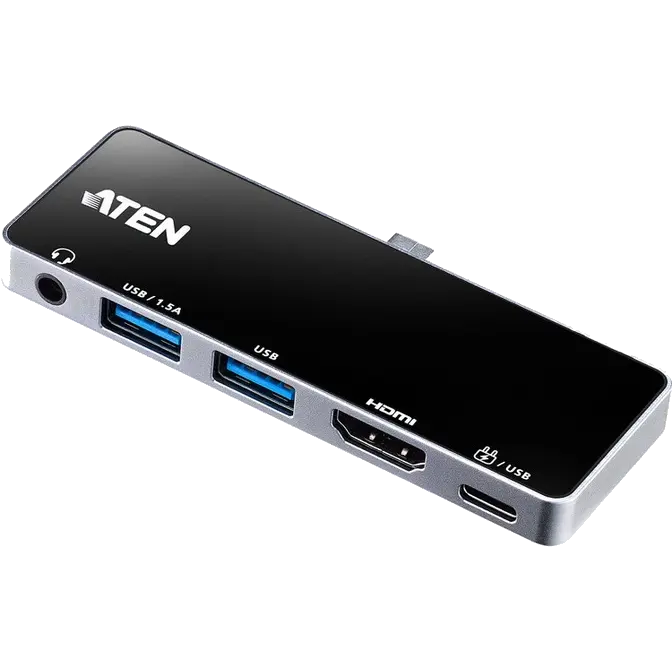

ATEN UH3238 USB-C Travel Dock with Power Pass-Through
Web ID: 46407
5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter power profiles include 5V, 9V, 15V, 20V
Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output; HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Compatible with Apple M1 chip devices; compact, lightweight design for mobile workstation
Display Input: USB-C In
Display Output: HDMI Out
USB-A Ports: 2
USB-C Ports: 1
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UH3238-AT
Manufacturer Website
$59
| Computer Connections | 1 |
| Connectors | |
| Computer | USB 3.2 Gen 1 Type-C |
| Device | 1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)* 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)* 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)* *a. 2 x USB-A ports share total 5V, 9W when UH3238 powered by external USB-C PD power adapter *b. 2 x USB-A and 1 x USB-C ports share total 5V, 7.5W when UH3238 powered by iPad via USB-C . *c. 2 x USB-A and 1 x USB-C ports share total 5V, 12.5W when UH3238 powered by PC via USB-C. (@5V,3A bus-powered) |
| Video Output | 1 x HDMI Female (Black) |
| Audio | 1 x 3.5mm stereo 4-pole microphone and headphone jack |
| Power | 1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)* *Support Power Delivery 3.0 for laptop charging up to 92W, power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed) |
| Video Resolution | 3840 x 2160@60Hz* * To get max bandwidth, upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitation |
| Power Consumption | DC5V:8WBTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| System Requirements | Windows 10 or above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html macOS 10.12 or later, USB-C enabled computer iPadOS 13.1 or later, iPad (USB-C) iOS 17.0 or later, iPhone (USB-C) Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.04 kg ( 0.1 lb ) |
| Dimensions (L x W x H) | 9.00 x 3.20 x 0.82 cm (3.54 x 1.26 x 0.32 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
