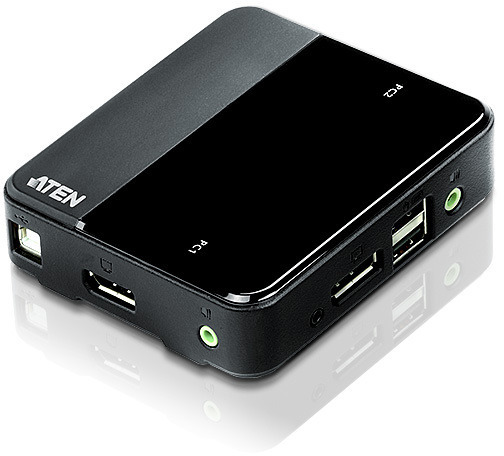

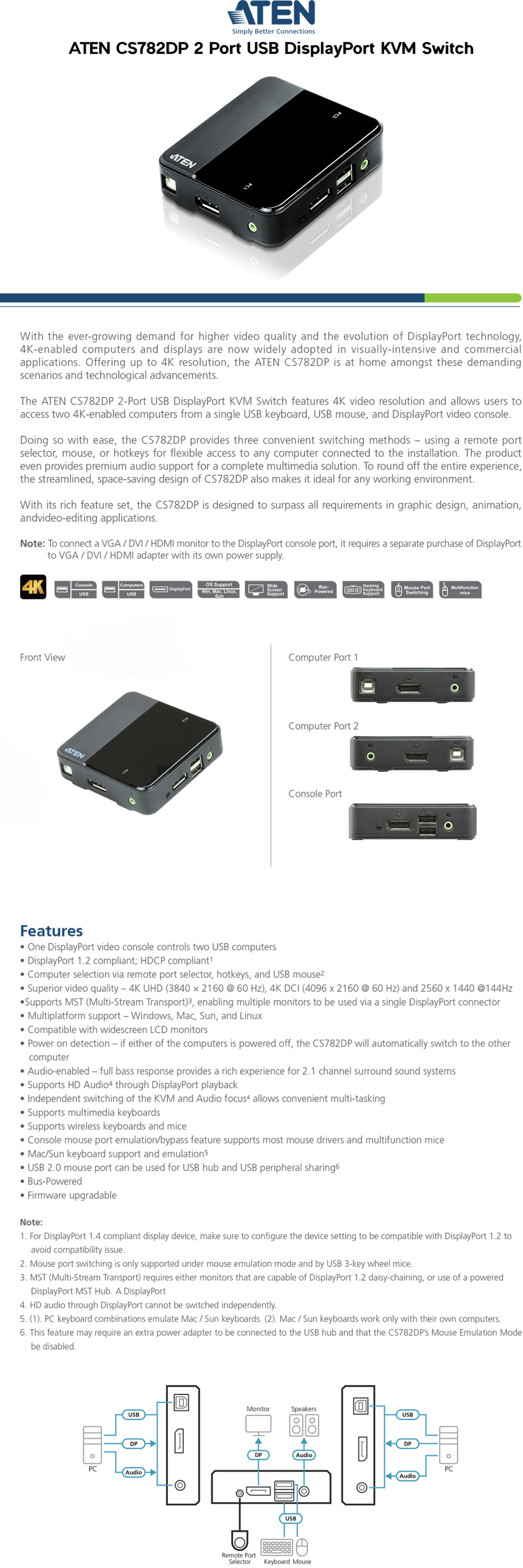

ATEN CS782DP 2-Port USB DisplayPort + Audio KVM Switch
Web ID: 46400
Superior video quality 4K UHD (3840 2160 @ 60 Hz), 4K DCI (4096 x 2160 @ 60 Hz) and 2560 x 1440 @144Hz
Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design
Supports MST (Multi-Stream Transport)2, enabling multiple monitors to be used via a single DisplayPort connector
Multiplatform support Windows, Mac, Sun, and Linux
Display Input: DisplayPort In
Display Output: DisplayPort Out
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CS782DP-AT
Manufacturer Website
$159
| Computer Connections | 2 |
| Port Selection | Hotkey, Mouse, Remote Port Selector |
| Connectors | |
| Console Ports | 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green) |
| KVM (Computer) Ports | 2 x USB Type B Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) |
| Remote Port Selector | 1 x 2.5mm Audio Jack Female |
| LEDs | |
| KVM | 2 (White) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz |
| Scan Interval | 3, 5, 10, 20 seconds (Default: 5 seconds) |
| Power Consumption | DC5V:2.18W:23BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | –20 – 60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.12 kg ( 0.26 lb ) |
| Dimensions (L x W x H) | 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
