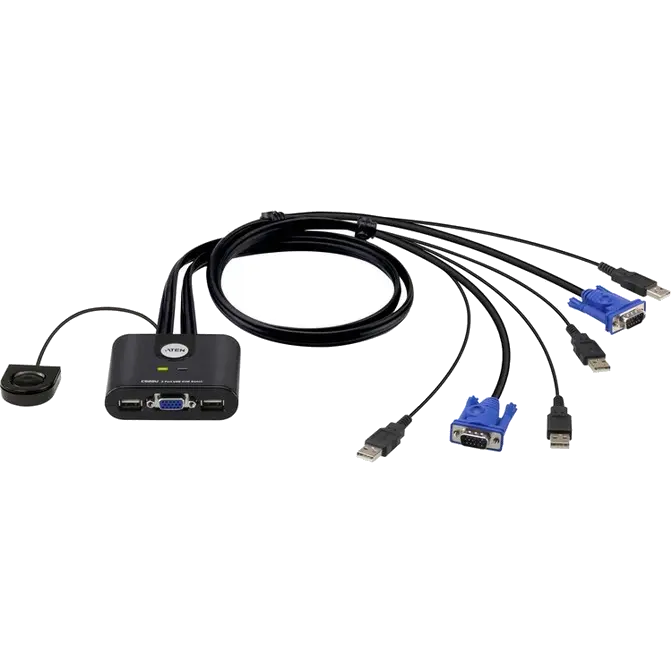

ATEN CS22U 2-Port USB VGA Cable KVM Switch with Remote Port Selector
Web ID: 46398
Superior video quality, up to 2048 x 1536; DDC2B
Computer Selection via a Remote Port Selector
Multiplatform support, Windows, Mac, Linux and Sun
Bus-powered design
Display Input: VGA In
Display Output: VGA Out
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: CS22U-AT
GTIN: 672792398018
Manufacturer Website
$29
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |
| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female |
| KVM Ports | 2 x HDB-15 Male (Blue) 4 x USB Type A Male (Black) |
| LEDs | |
| Selected | 2 |
| Cable Length | |
| Computer | 2 x 0.9 m |
| Remote Port Selector | 1.8 m |
| Video | 2048 x 1536, DDC2B |
| Power Consumption | DC5V:0.14W:13BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.30 kg ( 0.66 lb ) |
| Dimensions (L x W x H) | 8.24 x 7.01 x 2.46 cm (3.24 x 2.76 x 0.97 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
