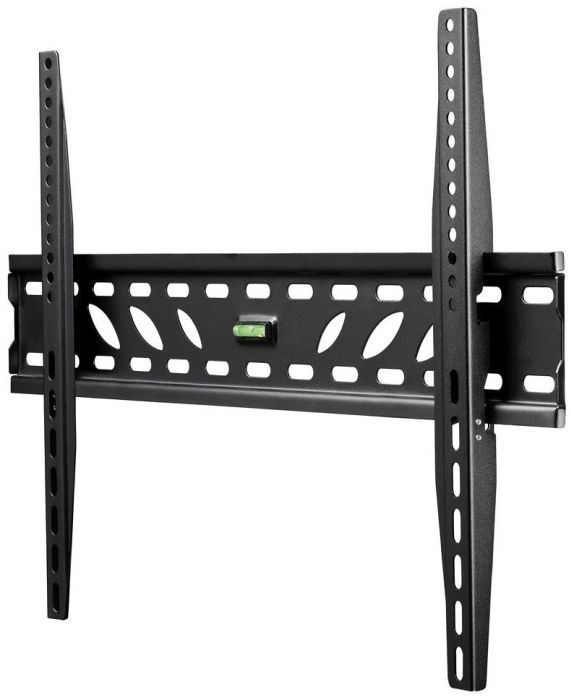

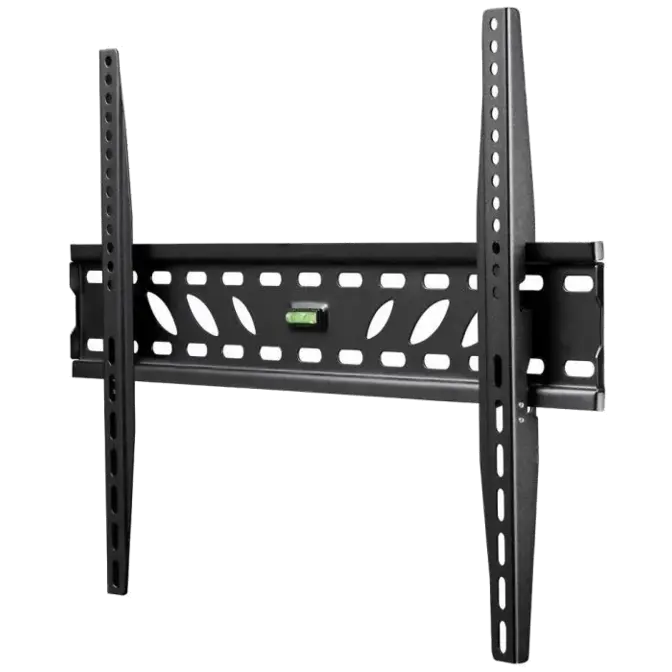

Atdec Telehook 30"-60" Wall Mount Ultra Slim TH-3060-UF
Web ID: 26425
Fixed angle mount. Max load 50kg. VESA up to 600x420 ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 10 Year
Manufacturer PN: TH-3060-UF
GTIN: 881493006898

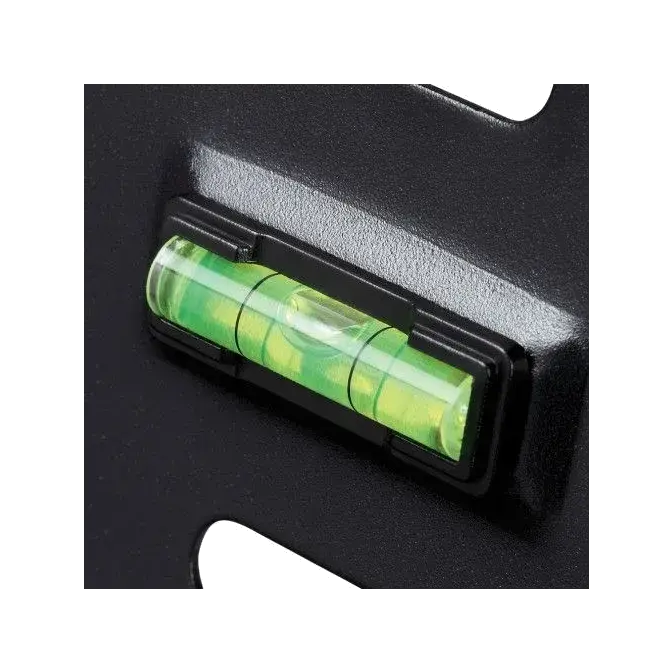

The TH-3060-UF is a wall mounting solution for the latest generation of consumer LED, LCD and Plasma displays. If you have a 32" or larger flat screen TV that you wish to mount flush to a wall then this may be the product for you. The slim profile provides a sleek finish while quality construction ensures a lifetime of worry-free operation. Universal VESA support ensures compatibility with a large number of displays. A mounting plate affixes directly to the wall while brackets attach to the display using screws included in the pack. After cabling the display is simply lifted and clicked into place. The wall plate incorporates a spirit level and slotted holes for easy alignment while the brackets allow for horizontal adjustment post installation. A latching system on the brackets incorporate sash pulls for easy display release. The sashes feature a folding design so they can be safely hidden beneath the display.
- Low profile mount, display sits 26mm (1") from the wall

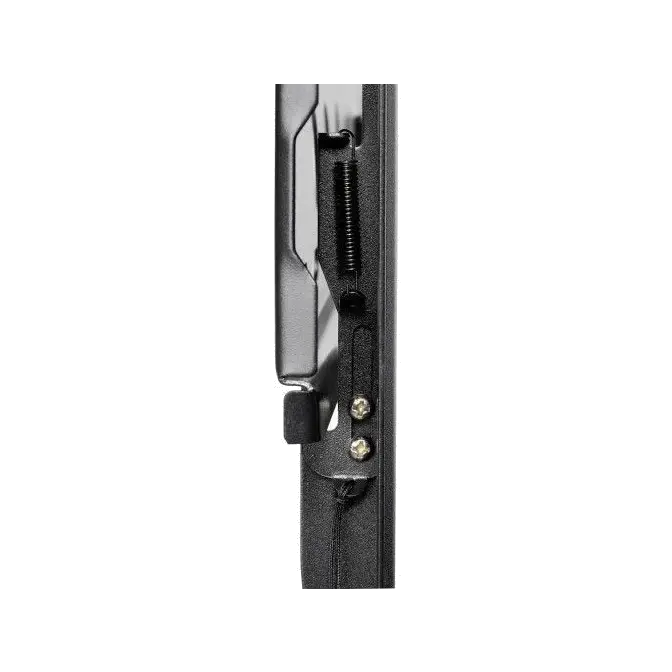

- Locking mechanism for safe installation
- All mounting hardware included
| Product code | TH-3060-UF |
| Material | Steel |
| Warranty | 10 years |
| Minimum display weight, kg | 0 |
| Maximum display weight, kg | 50 |
| VESA mounting hole pattern, mm | 100x100, 100x150, 100x200, 120x180, 200x100, 200x200, 200x300, 200x400, 280x150, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 |
| Universal width (mm) | From 100 to 600 |
| Universal height (mm) | From 100 to 420 |
| Range of motion | Fixed angle |
| Spring assisted height adjustability | No |
| Tilt adjustment | 0° |
| Pan adjustment | 0° |
| Horizontal levelling adjustment | - |
| Height adjustable | No |
| Landscape to portrait screen rotation | No |
| Minimum distance from wall (mm) | 25.5 |
| Maximum distance from wall (mm) | 25.5 |
| Security features | - |
| Mounting hardware included | Yes |
| Length, single unit (cm) | 67.3 |
| Width, single unit (cm) | 11.5 |
| Height, single box (mm) | 4.8 |
| Weight, single unit, kg | 1 |
| Length, master carton (cm) | 68.6 |
| Width, master carton (cm) | 25.7 |
| Height, master carton (cm) | 25.7 |
| Single units per master pack | 10 |
| Weight, master carton, kg | 19 |
