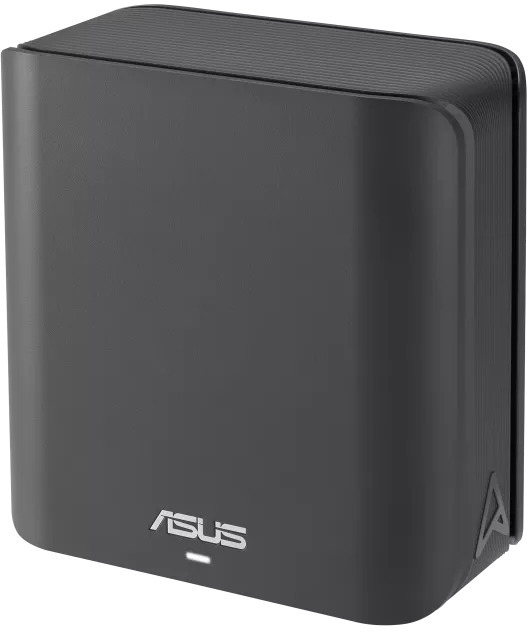

ASUS ZenWiFi BD4 BE3600 Quad Band Wi-Fi 7 Mesh Router Black
Web ID: 48275
WiFi Standard: Wi-Fi 7
Wireless Channel: Quad Band || 2.4GHz || 5GHz || 6GHz
LAN Speed: 2.5 Gigabit
Connection Type: Wireless
Manufacturer Warranty: 3 Year
Manufacturer PN: ASUS ZenWiFi BD4
Manufacturer Website
$239SAVE $10
| Model | ASUS ZenWiFi BD4 |
|---|---|
| Model Name | BD4(B-2-PK), BD4(B-3-PK) |
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6 |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps; WiFi 7 (802.11be) (5GHz): up to 2882 Mbps |
| Antenna | Internal antennas x 4 |
| Transmit / Receive | 2.4GHz 2x2; 5GHz 2x2 |
| Processor | 1.5GHz quad-core processor |
| Memory | RAM 512MB, Flash 128MB |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access); Beamforming: standard-based and universal; 4096-QAM high data rate; 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz; 5 GHz |
| Operating Mode | Wireless Router Mode; AiMesh Node Mode; Access Point Mode |
| I/O Ports | 2.5G x 2 (WAN/LAN auto detecting) |
| Buttons | WPS button, Reset button, Power switch |
| LED Indicator | Power x 1 |
| Power Supply | AC Input: 110V~240V (50~60Hz); DC Output: 12V with max 1.5A current |
| Package Content | ZenWiFi BD4; RJ45 cable; Power adapter; Warranty card; Quick start guide |
| Product Dimensions | 140 x 70 x 140 mm |
| Remark | Content may vary in different regions and packages |
| AiMesh | AiMesh; • Primary AiMesh Router; • AiMesh Node |
| Parental Control | Allow you to block access to unwanted websites and apps; Web & Apps Filters; Time Scheduling; Reward; Parental Control - Safe Browsing; Customized Internet Schedule |
| Router APP | APP: ASUS Router APP |
| Guest Network | The Guest Network provides Internet connection for guests but restricts access to your local network; Support Guest Network |
| Security | AiProtection; VPN; WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise; WPS; Let's Encrypt; DNS-over-TLS; Security Scan; Firewall |
| AiProtection Pro | • Router Security Assessment; • Malicious Site Blocking; • Two-Way IPS; • Infected Device Prevention and Blocking |
| VPN | Instant Guard; VPN Client L2TP; VPN Client Open VPN; VPN Client PPTP; VPN Client WireGuard; VPN Server IPSec; VPN Server Open VPN; VPN Server PPTP; VPN Server WireGuard; VPN Fusion |
| Traffic Control | Adaptive QoS; • Bandwidth Monitor; • Bandwidth Limiter; Traditional QoS; Traffic Monitor; Traffic Analyzer; • Website History |
| WAN | Port Forwarding; Port Triggering; DMZ; DDNS |
| LAN | DHCP Server; IGMP Snooping; IPTV; Manually Assign IP Address; Wake on LAN (WOL) |
| Wireless | MU-MIMO; UTF-8 SSID; WiFi MAC Address Filter; Wireless Scheduler; Airtime Fairness; RADIUS Client; Universal Beamforming; Explicit Beamforming |
| Administration | Diagnosis Tools; Feedback System; System Log; New Device Connect Notification; Login Captcha; Connection Diagnosis; Auto Firmware Update |
| Smart Home | Support Google Assistant |
