| Specification | Details |
|---|---|

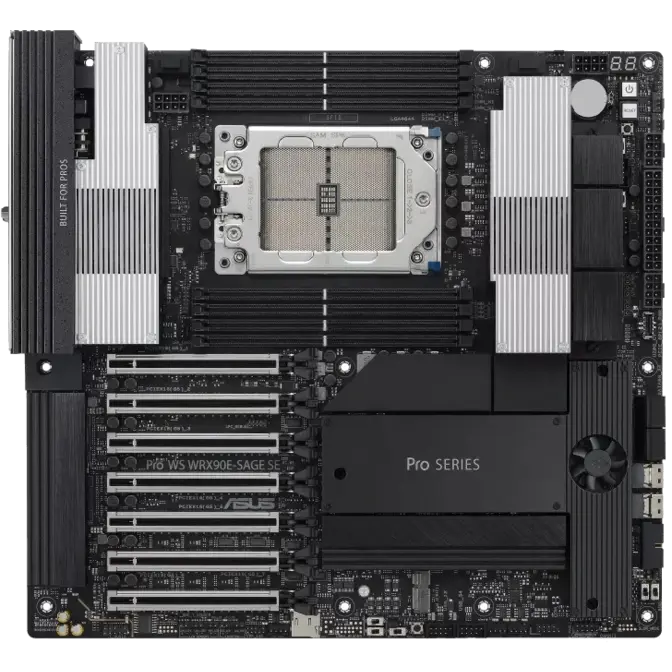

| Model | Pro WS WRX90E-SAGE SE |
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Refer to www.asus.com for CPU support list. System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration. |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DIMM slots, DDR5, ECC Registered Memory 8 Channel Memory Architecture See CPU/Memory Support. |
| Expansion Slots | 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) |
| Storage | 4 x M.2 slots (PCIe 5.0 x4) 2 x SlimSAS ports (PCIe 4.0 x4 NVMe) 4 x SATA 6Gb/s ports Supports AMD RAIDXpert2 RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 1Gb (Management LAN) 1 x Intel® dual 10Gb Ethernet ASUS LANGuard |
| USB (Rear) | 2 x USB4® (40Gbps, Type-C®) 6 x USB 10Gbps (Type-A) 1 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 20Gbps (Type-C®) 1 x USB 5Gbps header (adds 2 ports) 2 x USB 2.0 headers (adds 4 ports) |
| Audio | Realtek ALC1220P HD Audio CODEC Supports up to 32-Bit/192 kHz playback Supports 5.1 Surround Sound with HD audio chassis. |
| Back Panel I/O | 2 x USB4® (Type-C®) 6 x USB 10Gbps (Type-A) 1 x USB 2.0 (Type-A) 1 x VGA port 2 x mini DisplayPort IN 2 x Intel® 10Gb Ethernet 1 x Realtek 1Gb Ethernet 2 x Audio jacks BIOS FlashBack™, Clear CMOS |
| Internal I/O | CPU Fan, CPU OPT, W_PUMP+, 5 x Chassis Fan, VRM Fan, M.2 Fan 24-pin Main, 2 x 8-pin +12V, 2 x PCIe to CPU, 2 x PCIe Power Misc headers: TPM, COM, FlexKey, LN2 jumper, ProbeIt, Start button |
| Special Features | ASUS 5X PROTECTION III ASUS Q-Design (Q-Latch, Q-Release, Q-Code) ASUS Thermal Solution (M.2 heatsinks, VRM fans) ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, SafeSlot) |
| BMC Related | BMC switch, IPMI switch, microSD socket, VGA header, LAN LED headers, SMART PSU switch |
| Software | Armoury Crate (Fan Xpert 4) ASUS CPU-Z Adobe Creative Cloud (Trial) Norton 360 (60-day trial) WinRAR (40-day trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE (UEFI mode) |
| Accessories | PCIe 8-pin cables, 24-pin cable, Mini DP cables, SATA cables, Q-connector, M.2 Q-Latch |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | EEB, 12" x 13" (30.5 cm x 33 cm) |
