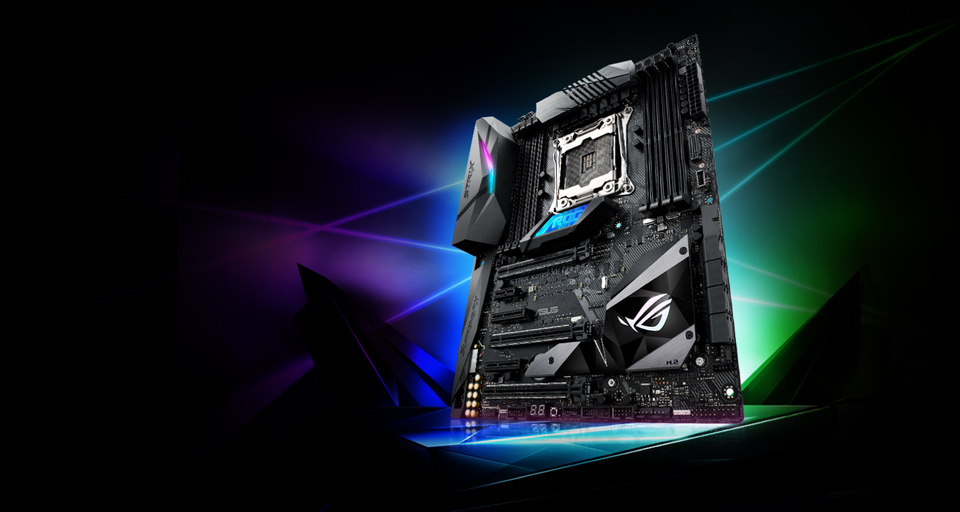

ASUS S2066 ATX ROG STRIX X299-XE GAMING DDR4 Motherboard

Web ID: 24963

Supports Intel Core X-series Processor Family, Intel Socket 2066, Intel X299 Chipset, 8 x DDR4 Slots, 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8) mode with 44-LANE CPU; (x16, x16/x8, x16/x8/x1) mode with 28-LANE CPU, (x16, x8/x8, x8/x8/x1) mode with X-Series CPU, 2 x PCIe x4, 1 x PCIe x1, 1 x M.2 PCIe, 1 x M.2 (SATA/PCIe), 8 x SATA 6Gb/s Ports, RAID 0, 1, 5, 10, Intel Optane Ready, Gigabit LAN, Wireless-AC, Bluetooth v4.2, 1 x USB 3.1 Type C, 2 x USB 3.1 (Gen2) Type A, 8 x USB 3.1 (Gen1) (4 via back panel, 4 via internal header), 4 x USB 2.0 (2 via back panel, 2 via internal header), 7.1 Channel HD Audio with Optical Out, ATX Form Factor ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG STRIX X299-XE
GTIN: 889349825143
Manufacturer Website

$549

ROG Strix X299-XE Gaming is loaded with powerful tuning, overclocking, cooling and personalization innovations to make your next build as agile as your ambitions. We've channeled ROG engineering ingenuity into ROG Strix X299-XE Gaming to create a standout ATX motherboard that's tricked out with superior SupremeFX audio for deeper in-game immersion, Aura Sync lighting with an all-new addressable-RGB-strip header to unleash infinite illumination possibilities, and special mounts that make it easy to create your own 3D-printed upgrades. Infused with the essential gaming spirit that is ROG, ROG Strix X299-XE Gaming is hungry for high-performance Intel® Core™ X Series processors — and ready to satisfy your desire for X299.



ROG Strix X299-XE Gaming ups the aesthetic ante, with an eye-catching angular heatsink and I/O cover, laser-engraved bubblegram, and a lustrous metal nameplate with polychrome ROG logo.

Personalization



outshine the competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
*Visit the ASUS Aura microsite to learn more about Aura Sync

RGB HEADERSRGB

LIGHTING PERFECTED

ROG Strix X299-XE Gaming features a duo of onboard 5050 RGB headers and an addressable header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities. It also comes with a ROG addressable strip .

*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 60 LEDs.
* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 2m.
**RGB and addressable RGB LED extension cables are included. LED strips and Aura Sync-compatible devices are sold separately.

1 x ROG Addressable LED strip (30cm) bundled

RGB Headers focus


performance

VRM COOLING

The latest high-core-count Intel Core i7 and i9 CPUs consume serious amounts of power — so ROG Strix X299-XE Gaming is equipped with serious VRM cooling. Featuring a high-mass, finned heatsink, the expansive surface area dissipates heat efficiently. And, to push the platform as far as you desire, we've even included a bracket that allows you to mount a bundled fan to accelerate the airflow.

  • 40x40mm fan
  • VRM fan bracket

M.2 Heatsink

PERFECTED COOLING FOR UNLEASHING PERFORMANCE

ROG Strix X299-XE Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.

5-Way Optimization

One-click overclock and cooling, done!

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

· An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
· Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
· All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.



Flexible cooling controls for air or liquid

With ROG Strix X299-XE Gaming you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Cooler By Design

ROG Strix X299-XE Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:

Rampage VI Extreme



Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.



DDR4 OVERCLOCKING STRENGTH IN NUMBERS

With optimized trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4 4133 MHz and beyond.

CPU : Intel LGA 2066 i9-7900X | Motherboard : ROG Strix X299-XE Gaming | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i



OC design- ASUS PRO Clock II technology

A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.


*BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options.
CPU : Intel LGA 2066 i7-7740X | Motherboard : Prime X299-Deluxe | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i

GAMING AUDIO

SupremeFX

Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilizing the S1220A codec, ROG Strix's SupremeFX audio solution is engineered to provide a flat frequency response and offer a neutral, detailed sound signature. The addition of two op-amps on the front panel headphone output ensures adequate voltage and current to drive headphones to their full potential. And our Sonic Studio software grants you full control over every aspect of audio, including noise reduction algorithms for communications, plus EQ adjustments to get the most from your headset or speakers.

  • CPU
    Intel® Socket 2066 Core™ X-Series Processors
    * Refer to www.asus.com for CPU support list
    * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
  • Chipset
    Intel® X299
  • Memory
    Intel® Core™ X-series Processors (6-core above)
    8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Intel® Core™ X-series Processors (4-core)
    4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports NVIDIA® 3-Way SLI™ Technology
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    44-Lane CPU-
    Intel® Core™ X-Series Processors Family
    3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
    1 x PCIe 3.0/2.0 x1
    28-Lane CPU-
    Intel® Core™ X-Series Processors Family
    3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
    1 x PCIe 3.0/2.0 x1
    16-Lane CPU-
    Intel® Core™ X-Series Processors Family
    3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
    1 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Core™ X-Series Processors Family :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel Rapid Start Technology
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst IV
  • Wireless Data Network
    Wi-Fi 802.11 a/b/g/n/ac
  • Bluetooth
    Bluetooth V4.2
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *2
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 front panel connector port(s)
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
    Intel® X299 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board)
    Intel® X299 Chipset :
    4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • Special Features
    OC Design - ASUS PRO Clock II Technology
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    - Aura Addressable Strip Header(s)
    ASUS Exclusive Features :
    - USB BIOS Flashback
    - AI Suite 3
    - Ai Charger
    - Onboard Button : Power
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    ASUS EZ DIY :
    - ASUS EZ Flash 3
    - ASUS USB BIOS Flashback
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
    4 x USB 3.1 Gen 1 (blue)
    2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
    1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
  • Internal I/O Ports
    1 x Aura Addressable Strip Header(s)
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x COM port(s) connector(s)
    8 x SATA 6Gb/s connector(s)
    1 x M.2_FAN connector
    1 x VROC_HW_Key
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x System panel(s) (Q-Connector)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x USB 3.1 Gen 2 front panel connector
    1 x CPU_OV jumper
  • Accessories
    User's manual
    ASUS Q-Shield
    1 x Vertical M.2 bracket set
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x ROG addressable LED strip (30cm)
    1 x Strix door hanger
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x Q-Connector
    1 x 10-in-1 ROG cable label
    1 x M.2 screw kit (long screw and mount)
    1 x Thermal sensor cable pack(s)
    1 x Cable ties pack(s)
    ROG Fan Label
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x 3D printing mount package
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
    ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    1. PCIEX4_1 max. at x1 mode
    2. Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio
