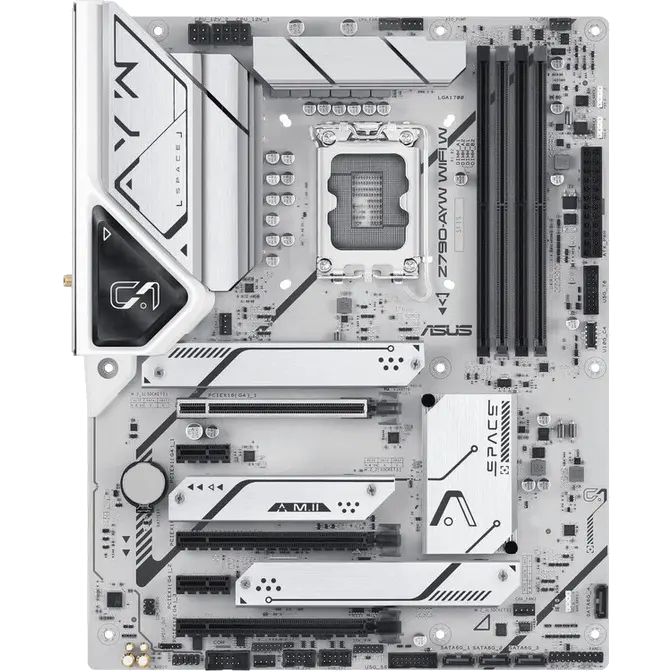

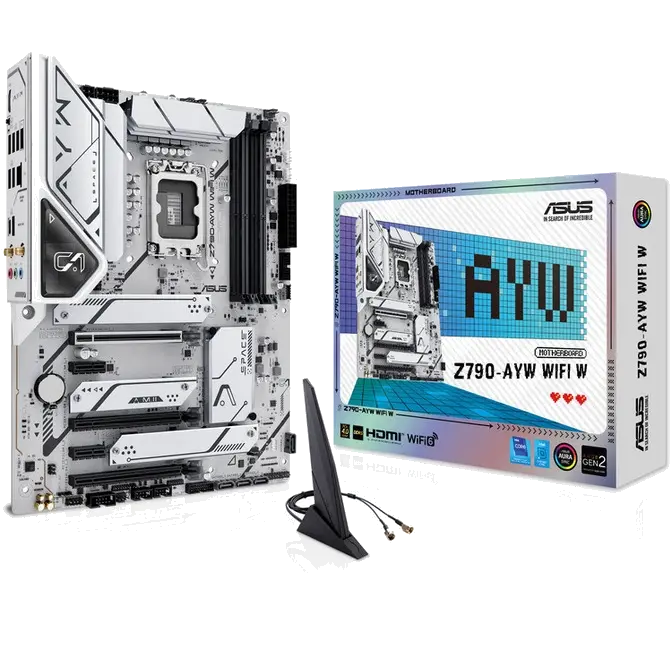

ASUS S1700 Z790-AYW WIFI W II DDR5 ATX Motherboard
Web ID: 44844
CPU Socket: Intel 1700
Motherboard Form Factor: ATX
Chipset: Intel Z790
RAM Type: DDR5
Connectivity: Wi-Fi 6 || Bluetooth Ver 5.3 || 2.5 Gigabit LAN
PCIe Size: PCIe 4.0x16
Storage Interface: 3 x M.2 PCIe || 4 x SATA
Audio: 7.1 Channel
Video Interface: 1 x HDMI
USB: 1 x USB 3.2 Type-C || 3 x USB 3.2 Type-A || 4 x USB 2.0
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: Z790-AYW WIFI W II
Manufacturer Website
$299SAVE $10
| Model | Z790-AYW WIFI W II |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | |
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) memory module | |
| OptiMem II | |
| Graphics | 1 x HDMITM port |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) |
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z790 Chipset | |
| 3 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel® Core™ Processors (14th & 13th & 12th Gen) | |
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) | |
| Intel® Z790 Chipset | |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 ax) |
| Supports 2.4/5GHz frequency band | |
| Bluetooth® v5.3 | |
| Rear USB | Total 8 ports |
| 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB | Total 9 ports |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | Audio Shielding |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Back Panel I/O Ports | 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power Related | 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage Related | 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports | |
| USB | 1 x USB 10Gbps connector (supports USB Type-C®) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | 3 x Addressable RGB Gen 2 headers |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin Front Panel System header | |
| 1 x Thunderbolt™ (USB4®) Header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| Q-DIMM | |
| Q-Slot | |
| Q-LED Core | |
| ASUS Thermal Solution | |
| M.2 heatsinks | |
| VRM heatsinks design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| ProCool | |
| Pre-mounted I/O shield | |
| Aura Sync | |
| Addressable RGB Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Sync | |
| Fan Xpert 4 (with AI Cooling II) | |
| Power Saving | |
| Two-Way AI Noise Cancelation | |
| ASUS DriverHub | |
| AI Suite 3 | |
| TurboV EVO | |
| PC Cleaner | |
| DIGI+ VRM | |
| ASUS CPU-Z | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | ASUS EZ DIY |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antenna | |
| 2 x M.2 rubber packages | |
| 1 x Screw package for M.2 SSD | |
| Documentation | 1 x Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
