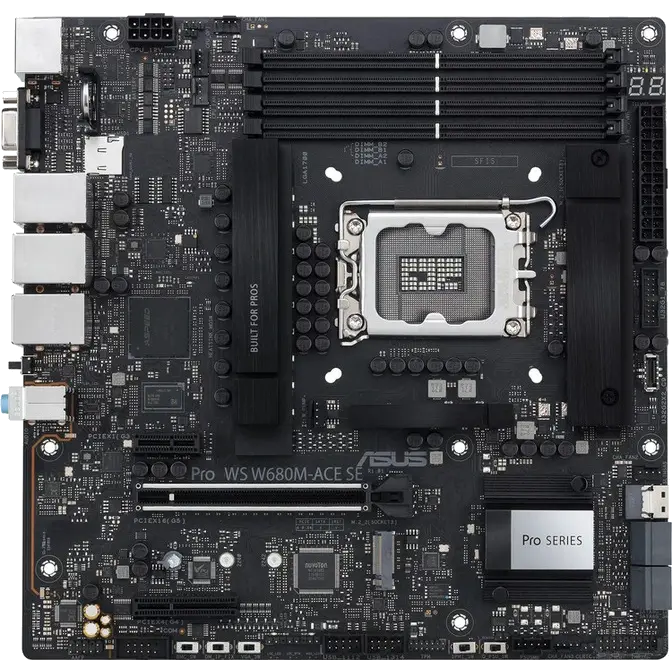

| Model | Pro WS W680M-ACE SE |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel® W680 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** 1 x VGA port from AST2600 |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen)* - 1 x PCIe 5.0 x16 slot Intel® W680 Chipset - 1 x PCIe 4.0 x4 slot - 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** |
| Ethernet | 2 x Intel® 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet dedicated for AST2600 ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* |
| USB | Rear USB (Total 6 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |

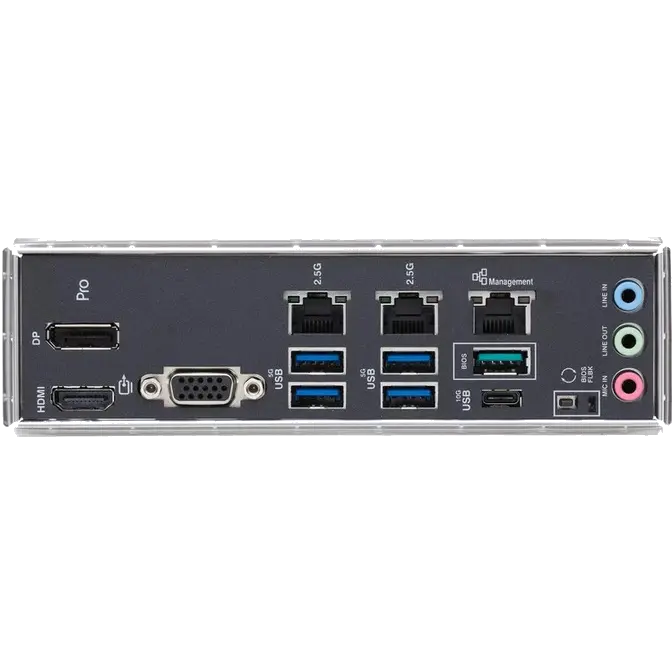

| Back Panel I/O Ports | - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 1 x DisplayPort - 1 x HDMI® port - 1 x VGA port from AST2600 - 2 x Intel® 2.5Gb Ethernet ports - 1 x Realtek 1Gb Ethernet dedicated for AST2600 - 3 x Audio jacks - 1 x BIOS FlashbackTM button |
| Internal I/O Connectors | Fan and Cooling related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin W_PUMP+ header - 3 x 4-pin Chassis Fan headers Power related - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector Storage related - 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - 1 x SlimSAS port USB - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous - 1 x LPT header - 1 x T-sensor - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x SPI TPM header (14-1pin) - 1 x 20-3 pin System Panel header with Chassis intrude function |
| BMC Related | - 1 x BMC LED and switch - 1 x VGA switch - 1 x BMC LAN fixed IP switch - 1 x IPMI switch - 1 x Q_PSU switch - 1 x PSU SMBus header - 1 x VPP_I2C header - 1 x Micro SD card socket - 1 x BMC_T_SENSOR header - 1 x Location button header - 1 x Location LED and header - 1 x Message LED and header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack™ button - BIOS FlashBack™ LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability |
| Software Features | ASUS Exclusive Software - Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) Intel® vPro UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTek. EzFlash Utility |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Manageability | WOL by PME, PXE |
| Accessories | Cables - 2 x SATA 6Gb/s cables Miscellaneous - 1 x Q-connector - 1 x M.2 Rubber Packages - 2 x Screw package for M.2 SSD - 1 x I/O Shield Documentation - 1 x User guide - 1 x ACC Express Activation Key Card |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
