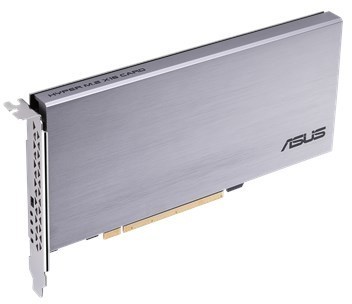

ASUS HYPER 4x M.2 PCIe x16 Card V2

Web ID: 22736

New two-phase power solution with up to 14 Watt output supports the latest NVMe drives. Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability. Support for up to four PCIe® 3.0 M.2 drives with transfer bandwidth up to 128Gbps. Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes.Limited Motherboard Support - Please check Specifications/Manufacturers Website for more information. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: HYPER M.2
GTIN: 889349811122
Manufacturer Website

$109

RAID on CPU

Hyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support. Unused CPU PCle® lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.

Design for unthrottled transfer speed

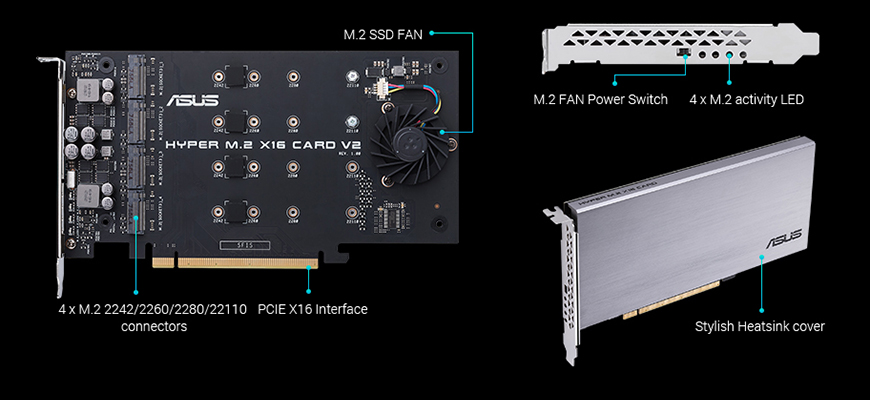

The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.

design

One card,
4X the bandwidth

Hyper M.2 x16 is designed specifically for Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

  • Interface
    PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.
  • External Connectors
    4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support(Support PCIE SSD only)
  • LED & Button
    1 x M.2 FAN Power Switch
    4 x M.2 access LEDs
  • Features
    RAID function Support on ASUS motherboards:
    Intel® RAID on CPU function ready for X299, Z370 and Z390 Series Motherboard models. (It supports Intel® SSDs only.)
    AMD® X399/X470/B450/X370/B350/X570/TRX40 Series Motherboard models*

    * Maximum number of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information:
    https://www.asus.com/support/FAQ/1037507
  • Dimentions
    20.2 * 9.6 *1.3cm
