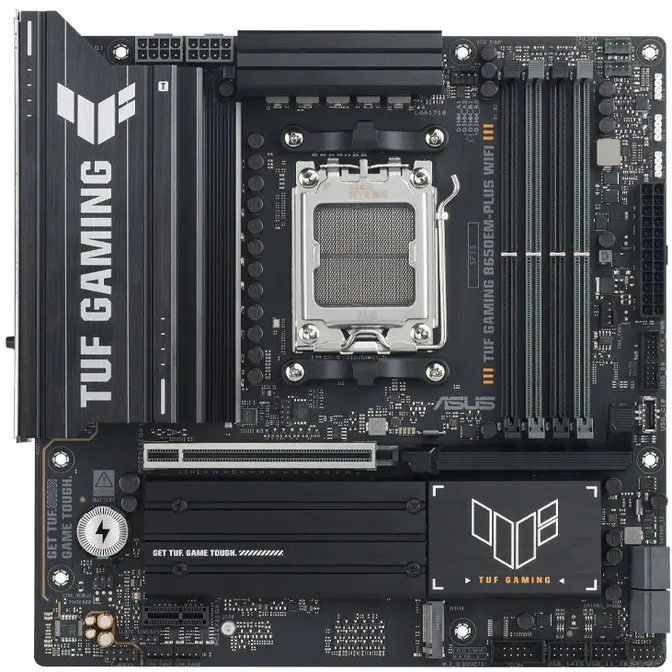

| Model | TUF GAMING B650EM-PLUS WIFI |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 |
| Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors | |
| CPU support list available via ASUS support website | |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots |
| Max capacity: 256GB DDR5 | |
| Up to 8000+ MT/s (OC) | |
| ECC and Non-ECC Un-buffered DIMM | |
| Dual channel memory architecture | |
| AMD EXPO™ support | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x DisplayPort |
| 1 x HDMI™ port | |
| DisplayPort supports max 8K@30Hz | |
| HDMI supports 4K@60Hz | |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (Ryzen 9000 / 7000) |
| 1 x PCIe 4.0 x16 slot (Ryzen 8000) | |
| 1 x PCIe 4.0 x1 slot (Chipset) | |
| PCIe bifurcation support (CPU dependent) | |
| Storage | 3 x M.2 slots |
| 4 x SATA 6Gb/s ports | |
| M.2_1 PCIe 5.0 x4 (Ryzen 9000 / 7000) | |
| M.2_1 PCIe 4.0 x4 (Ryzen 8000) | |
| M.2_2 PCIe 4.0 x4 / x2 (CPU dependent) | |
| M.2_3 PCIe 4.0 x4 (Chipset) | |
| AMD RAIDXpert2 support | |
| RAID Support | Ryzen 9000: RAID 0 / 1 / 5 / 10 |
| Ryzen 8000: RAID 0 / 1 | |
| Ryzen 7000: RAID 0 / 1 / 10 | |
| Ethernet | Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax) |
| 2x2, 2.4 / 5 / 6 GHz bands | |
| Bluetooth® v5.3 | |
| Windows 11 required for 6GHz band | |

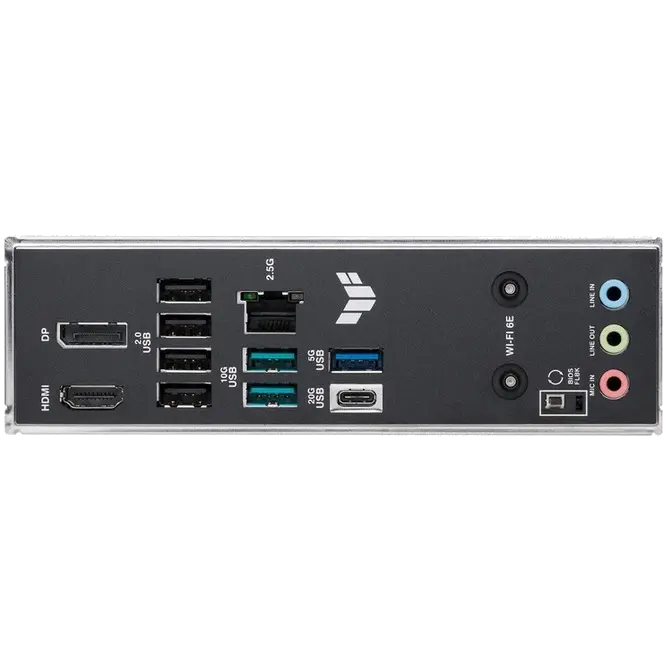

| Rear USB | 1 x USB 20Gbps Type-C |
| 2 x USB 10Gbps Type-A | |
| 1 x USB 5Gbps Type-A | |
| 4 x USB 2.0 Type-A | |
| Total rear USB ports: 8 | |
| BIOS FlashBack™ button | |
| Front USB | 1 x USB 5Gbps Type-C connector |
| 1 x USB 5Gbps header (2 ports) | |
| 2 x USB 2.0 headers (4 ports) | |
| Total front USB ports: 7 | |
| Internal headers supported | |
| Audio | Realtek 7.1 HD Audio CODEC |
| Supports up to 24-bit / 192 kHz playback | |
| Audio shielding and premium capacitors | |
| Dedicated audio PCB layers | |
| Internal I/O | CPU, CPU OPT, AIO pump fan headers |
| 3 x chassis fan headers | |
| 24-pin ATX and 2 x 8-pin CPU power | |
| 3 x Addressable RGB Gen 2 headers | |
| Clear CMOS, COM, Chassis intrusion | |
| Front panel system and audio headers | |
| Special Features | ASUS TUF Protection |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| Aura Sync RGB support | |
| Software Features | Armoury Crate |
| Fan Xpert 2+ | |
| DTS Audio Processing | |
| Adobe Creative Cloud (Trial) | |
| Norton 360 for Gamers (60-day trial) | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | Wake-on-LAN by PME |
| PXE support | |
| Accessories | 2 x SATA 6Gb/s cables |
| ASUS WiFi Q-Antenna | |
| M.2 screw and rubber packages | |
| Quick start guide and TUF sticker | |
| Operating System | Windows 11 / Windows 10 64-bit |
| Form Factor | micro-ATX |
| 9.6 in x 9.6 in (24.4 cm x 24.4 cm) |
