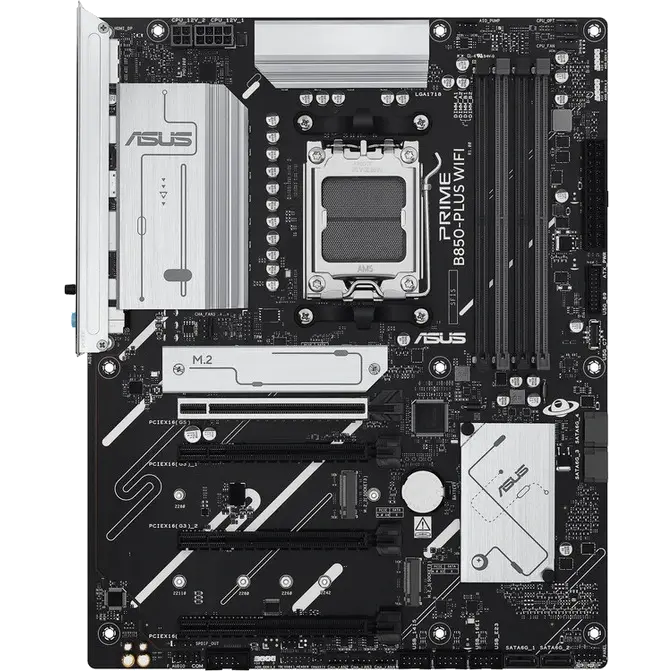

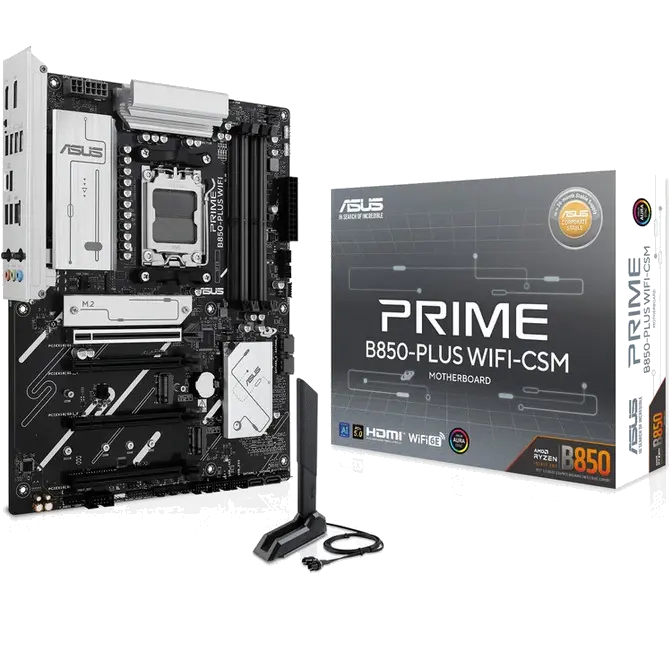

ASUS AM5 PRIME B850-PLUS WIFI-CSM ATX DDR5 Motherboard
Web ID: 46771
CPU Socket: AMD AM5
Motherboard Form Factor: ATX
Chipset: AMD B850
RAM Type: DDR5
WiFi Standard: Wi-Fi 6E
Bluetooth: Bluetooth || Ver 5.3
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 7
USB-C Ports: 1
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: PRIME B850-PLUS WIFI-CSM
GTIN: 197105931510
Manufacturer Website
$279SAVE $60
| Model | PRIME B850-PLUS WIFI-CSM |
| News & Updates | Visit ASUS Global Website for latest updates |
| CPU | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM, max. 256GB DDR5, up to 8000+MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO™, AEMP |
| Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI™ (4K@60Hz) |
| Expansion Slots | - Ryzen™ 9000/7000: 1 x PCIe 5.0 x16 - Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4) - Chipset: 1 x PCIe 4.0 x16 (x4), 2 x PCIe 3.0 x16 (x1) |
| Storage | - 3 x M.2 slots - 4 x SATA 6Gb/s ports - RAID support varies by CPU |
| Ethernet | Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth® v5.3 |
| USB (Rear) | 4 x USB 10Gbps (3 x Type-A, 1 x Type-C), 2 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, Jack-detection, Multi-streaming, 24-bit/192kHz |
| Audio Features | Audio Shielding, Premium Capacitors, Dedicated PCB Layers |
| Back Panel I/O | USB ports, DisplayPort, HDMI™, Wi-Fi, Ethernet, Audio jacks, BIOS FlashBack™ |
| Internal I/O Connectors | Fan headers, Power connectors, M.2 slots, SATA ports, USB headers, RGB headers, TPM, Thunderbolt™, etc. |
| Special Features | ASUS 5X Protection III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
| Software Features | Armoury Crate, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360, WinRAR |
| UEFI BIOS | CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey |
| Remote Management | ASUS Control Center Express (ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | SATA cables, WiFi antenna, M.2 screws, Quick start guide, ACC Express key |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
