ASUS AM5 MicroATX PRIME B650M-A CSM WIFI II DDR5 Motherboard
Web ID: 46855
CPU Socket: AMD AM5
Motherboard Form Factor: Micro-ATX
Chipset: AMD B650
RAM Type: DDR5
WiFi Standard: Wi-Fi 6
Bluetooth: Bluetooth || Ver 5.2
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: LAN || 2.5 Gigabit
Audio: 7.1 Channel
Display Output: VGA Out || HDMI Out || DisplayPort Out
USB-A Ports: 8
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: PRIME B650M-A WIFI II-CSM
GTIN: 197105034990
Manufacturer Website
$159SAVE $20
| Model | PRIME B650M-A WIFI II-CSM |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC) to 4800, ECC/Non-ECC, Un-buffered, Dual Channel, EXPO™, OptiMem II |
| Graphics Outputs | 1 x DisplayPort (8K@60Hz), 1 x VGA, 1 x HDMI® (4K@60Hz) |
| Expansion Slots | - 1 x PCIe 4.0 x16 (Ryzen 9000/7000: x16 mode; Ryzen 8000: x8/x4 mode) - 2 x PCIe 4.0 x16 (Chipset, x1 mode) |
| Storage | - 2 x M.2 slots - 4 x SATA 6Gb/s ports - M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) - M.2_2: PCIe 4.0 x4 |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.2 |
| Rear USB Ports | - 2 x USB 3.2 Gen 2 (Type-A) - 2 x USB 3.2 Gen 1 (Type-A) - 4 x USB 2.0 (Type-A) |
| Front USB Ports | - 1 x USB 3.2 Gen 1 (Type-C®) - 1 x USB 3.2 Gen 1 header (2 ports) - 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, Jack-detection, Multi-streaming, 24-Bit/192 kHz playback |
| Audio Features | Audio Shielding, Premium Capacitors, Dedicated PCB Layers |

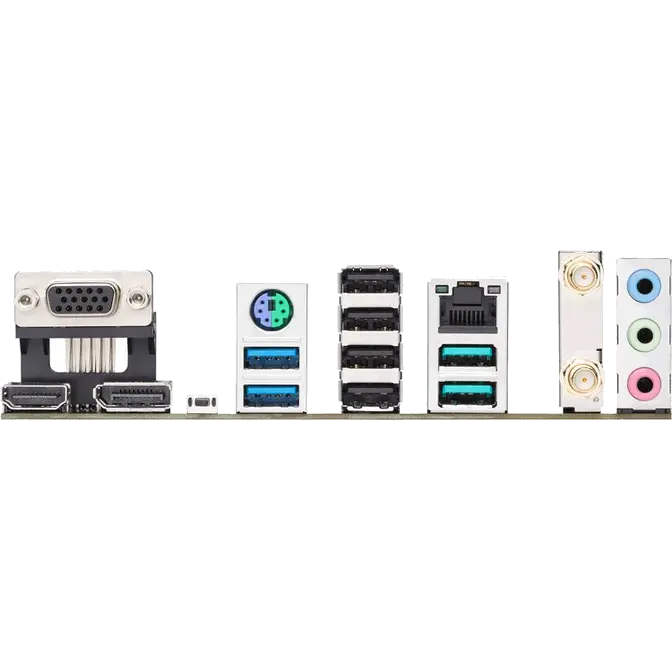

| Back Panel I/O | - 8 x USB ports - DisplayPort, VGA, HDMI® - Wi-Fi Module, Ethernet - 3 x Audio jacks - BIOS FlashBack™ button - PS/2 combo port |
| Internal I/O Connectors | - Fan: 1 x CPU, 1 x CPU OPT, 3 x Chassis - Power: 24-pin, 8-pin +12V, 4-pin +12V - Storage: 2 x M.2, 4 x SATA - USB: Type-C®, USB 3.2 Gen 1, USB 2.0 headers - Misc: RGB headers, CMOS, COM, Audio, S/PDIF, TPM, System Panel |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
| Software Features | Armoury Crate, AI Suite 3, ASUS CPU-Z, MyASUS, ACCE, Norton Trial, WinRAR |
| UEFI BIOS | ASUS EZ DIY, CrashFree BIOS 3, EZ Flash 3, EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | - 2 x SATA cables - Wi-Fi antennas - I/O Shield - M.2 screw package - ACCE Key Card - User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX (9.6" x 9.6" / 24.4 cm x 24.4 cm) |
