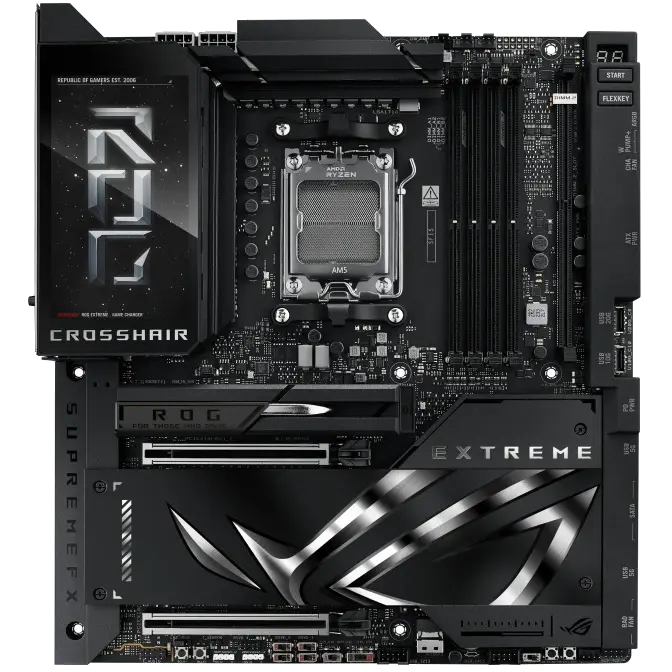

ASUS AM5 E-ATX ROG CROSSHAIR X870E EXTREME DDR5 Motherboard, *Redeem Bonus Game
Web ID: 45772
Connectivity: Wi-Fi 7 || Bluetooth || Ver 5.4 || LAN || 5 Gigabit
CPU Socket: AMD AM5
Motherboard Form Factor: E-ATX
Chipset: AMD X870E
RAM Type: DDR5
Connectivity: Wi-Fi 7 || BT 5.4 || LAN 5Gbe
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
Audio: 7.1 Channel
Display Output: USB-C Out || HDMI Out
USB: 8 x USB 3.2 Type-A || 2 x USB 3.2 Type-C || 2 x USB 4.0 Type-C
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG CROSSHAIR X870E EXTREME
GTIN: 197105984974
Manufacturer Website
$1799SAVE $40
*Purchase selected ASUS & ROG products and receive a BONUS Game copy of Resident Evil Requiem via Redemption
Valid for invoices between 29th January 2026 – 12th March 2026 | Must be redeemed by: 26th March 2026
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory Support | Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* |
| Memory Architecture | Dual Channel Memory Architecture |
| Memory Profiles | Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology |
| Graphics | 1 x HDMITM port**, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors*: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) |
| Expansion Slots (Ryzen™ 8700 & 8600 & 8400) | 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled) |
| Expansion Slots (Ryzen™ 8500 & 8300) | 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) |
| Storage | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* |
| Storage (Ryzen™ 9000 & 7000) | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*, M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** |
| Storage (Ryzen™ 8000) | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) |
| Storage (AMD X870E Chipset) | DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately., 4 x SATA 6Gb/s ports |
| RAID Technology | AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet, 1 x Marvell® AQtion 10Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7*: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band**, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate., Bluetooth® v5.4*** |
| USB (Rear) | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®) |
| USB (Front) | 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*, 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording input, Supports up to 32-Bit/384 kHz playback on front panel |
| Audio Features | SupremeFX Shielding Technology, ESS® ES9219 QUAD DAC, LED-illuminated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors |

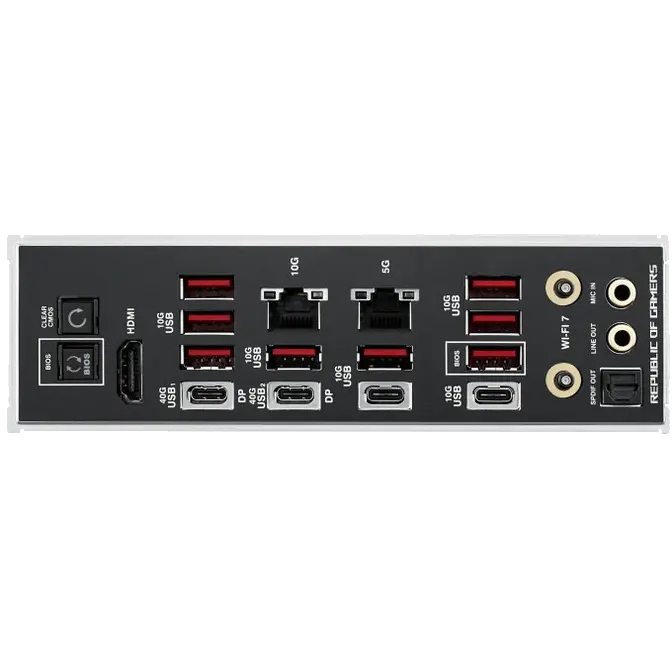

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 1 x Marvell® AQtion 10Gb Ethernet port, 2 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Internal I/O Connectors (Fan and Cooling) | 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Radiator Fan headers, 2 x W_PUMP+ headers, 1 x VRM Heatsink Fan header |
| Internal I/O Connectors (Power) | 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector |
| Internal I/O Connectors (Storage) | 3 x M.2 slots (Key M), 1 x DIMM.2 slot supports 2 x M.2 slots (Key M), 1 x SlimSAS connector, 4 x SATA 6Gb/s ports |
| Internal I/O Connectors (USB) | 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous | 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers, 2 x Addressable Gen 2 header, 1 x Alteration PCIe mode switch, 2 x BCLK button, 1 x BIOS Switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper, 12 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switches, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x Pause switch |
| Extreme OC Kit | FlexKey button, LN2 Mode, ProbeIt, ReTry button, Safe boot button, Start button, Slow Mode |
| Extreme Engine Digi+ | 10K Black Metallic Capacitors, MicroFine Alloy Choke |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, Q-DIMM.2 |
| ASUS Thermal Solution | Fan bracket, M.2 heatsink backplate, M.2 heatsink, Metal backplate, VRM heatsink design, 3D VC M.2 Heatsink |
| ASUS EZ DIY | Backplate, BIOS FlashBack™ button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM |
| Aura Sync | Addressable Gen 2 headers |
| Dual BIOS | Full Color 5" LCD Display |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | Support: up to 60W fast charging and USB Wattage Watcher*, Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A, Compatible with PD3.0 and PPS |
| Software Features | ROG Exclusive Software: ROG CPU-Z, Dolby Atmos, Internet Security (1-year full version), ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme (1 year full version), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, HWiNFO, Power Saving, LCD Display, ASUS AI Advisor, ASUS DriverHub, Turbo Vcore, ASUS GlideX, USB Wattage Watcher, WinRAR (40 Days Free Trial), Adobe Creative Cloud (Free Trial) |
| UEFI BIOS | AI Overclocking Guide, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

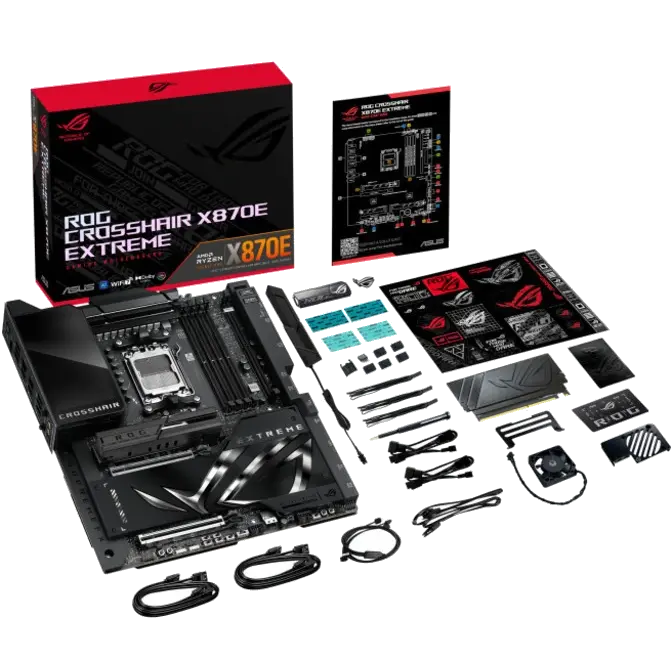

| Accessories (Cables) | 1 x 1-to-3 ARGB splitter cable, 1 x 1-to-2 ARGB splitter cable, 2 x 1-to-4 fan splitter cable, 2 x ROG weave SATA 6G cable packages, 1 x 3-in-1 Thermistor cables pack |
| Accessories (ROG Q-DIMM.2 with Heatsink) | 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad package for ROG Q-DIMM.2, 2 x Thermal pad for ROG Q-DIMM.2 |
| Additional Cooling Kit | 2 x Thermal pad for M.2 22110, 1 x DDR5 Fan holder, 1 x ROG Fan Kit |
| Miscellaneous | 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 1 x ROG logo plate sticker, 1 x ROG screwdriver, 1 x ROG stickers, 1 x ROG VIP card, 1 x M.2 Q-Slide package, 5 x M.2 backplate rubber packages, 1 x ROG Bottle Opener |
| Installation Media | 1 x USB drive with utilities and drivers |
| Documentation | 1 x Quick start guide |
| Operating System | Windows® 11 |
| Form Factor | E-ATX Form Factor, 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
