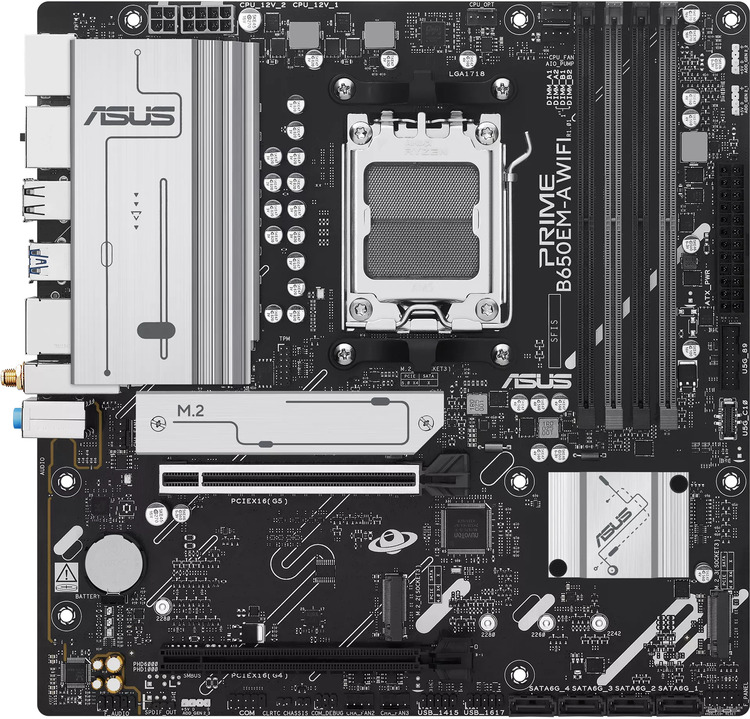

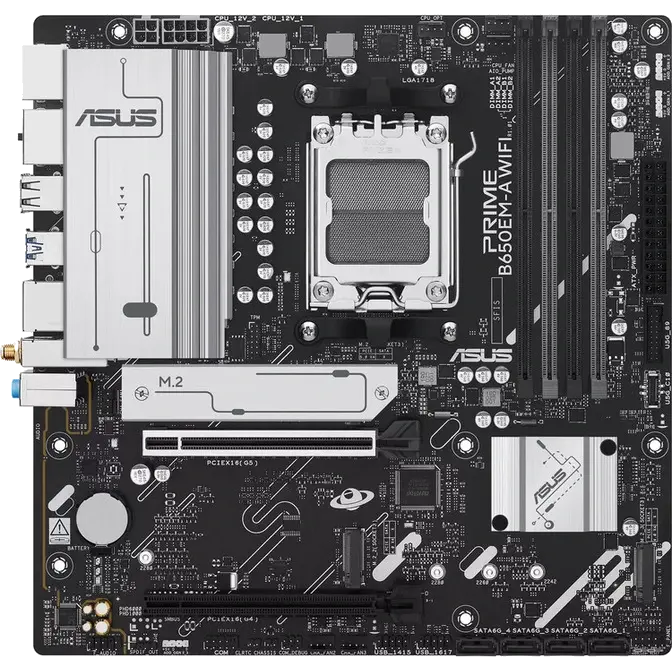

ASUS AM5 B650EM-A WIFI Micro-ATX DDR5 Wi-Fi 6 Motherboard
Web ID: 48272
CPU Socket: AMD AM5
Motherboard Form Factor: Micro-ATX
Chipset: AMD B650
RAM Type: DDR5
Connectivity: Wi-Fi 6 | BT 5.4 | 2.5GbE
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 8
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: PRIME B650EM-A WIFI
GTIN: 199291077287
Manufacturer Website
$179SAVE $20
| Model | PRIME B650EM-A WIFI |
|---|---|
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 2 x DisplayPort** 1 x HDMI™ port*** ** Supports max. 8K@30Hz (DisplayPort 1.4) *** Supports 4K@60Hz (HDMI 2.1) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)** AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (x1 mode) |
| Storage | 3 x M.2 slots and 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 Ryzen™ 8000: M.2_1 PCIe 4.0 x4*, M.2_2 PCIe 4.0 x4/x2* B650 Chipset: M.2_3 PCIe 4.0 x4 |
| RAID Support | AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz band Bluetooth® v5.4* |
| USB (Rear) | 8 ports: 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 7 ports: 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC* - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-Bit/192 kHz playback Features: Audio Shielding, Premium capacitors, Dedicated PCB layers |

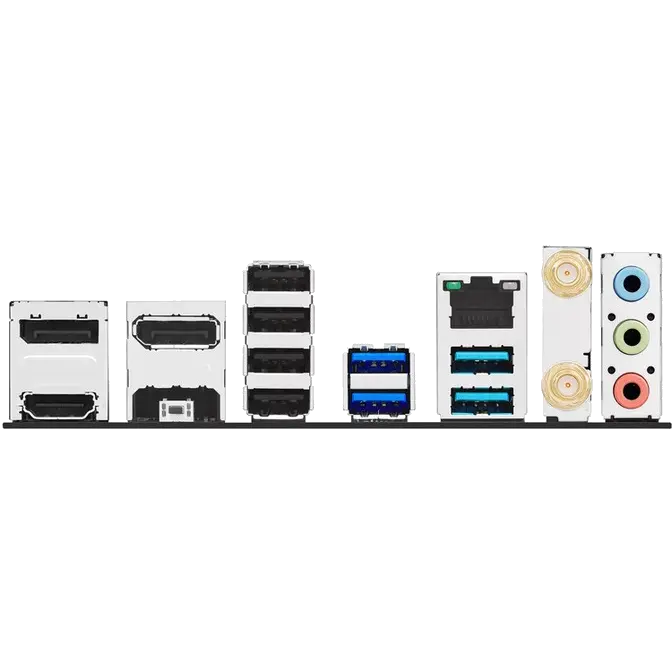

| Back Panel I/O | 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O | Fan: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan Power: 1 x 24-pin, 1 x 8-pin +12V, 1 x 4-pin +12V Storage: 3 x M.2, 4 x SATA USB: 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 3 x RGB headers, Clear CMOS, Chassis Intrusion, COM Port, Front Audio, S/PDIF Out, SPI TPM, Front Panel header |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
| Software Features | Armoury Crate, AI Suite 3, ASUS DriverHub, ASUS CPU-Z, Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days), WinRAR (40 Days) |
| UEFI BIOS | ASUS EZ DIY: CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, ASUS Wi-Fi antenna, I/O Shield, M.2 rubber package, Screw package, Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
