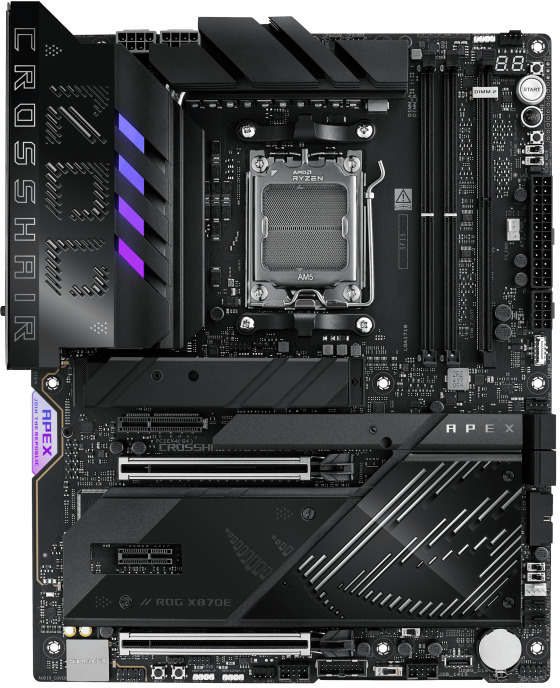

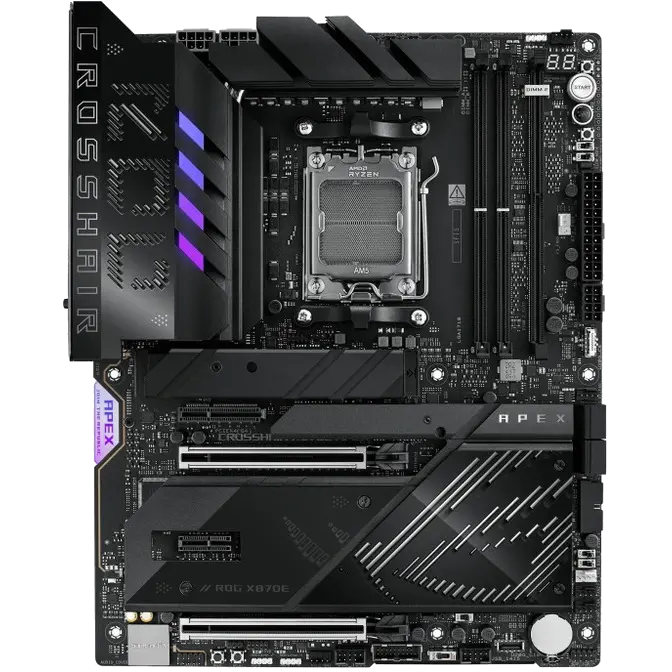

ASUS AM5 ATX ROG CROSSHAIR X870E APEX DDR5 Motherboard, *Redeem Bonus Game
Web ID: 45771
CPU Socket: AMD AM5
Cooler Socket: AM5 Bracket
Motherboard Form Factor: ATX
Chipset: AMD X870E
RAM Type: DDR5
WiFi Standard: Wi-Fi 7 || BT 5.4
Bluetooth: Bluetooth || Ver 5.4
PCIe Size: PCIe x1 || PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: LAN || 5 Gigabit
Audio: 7.1 Channel
Display Output: USB-C Out
USB: 5 x USB 3.2 Type-A || 1 x USB 3.2 Type-C || 2 x USB 2.0 || 2 x USB 4.0 Type-C
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG CROSSHAIR X870E APEX
GTIN: 197105890251
Manufacturer Website
$1229SAVE $20
*Purchase selected ASUS & ROG products and receive a BONUS Game copy of Resident Evil Requiem via Redemption
Valid for invoices between 29th January 2026 – 12th March 2026 | Must be redeemed by: 26th March 2026
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 |
| Memory Speed | 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors |
| Memory Type | ECC and Non-ECC, Un-buffered Memory* |
| Memory Architecture | Dual channel memory architecture |
| Memory Profiles | Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs* |
| Graphics Resolution | Supports max. 4K@60Hz as specified in DisplayPort 1.4a |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors*: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) |
| Expansion Slots | AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) |
| Expansion Slots | AMD Ryzen™ 8500 & 8300 Series Desktop Processors*: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) |
| Expansion Slots | AMD X870E Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors***: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) |
| Storage | AMD X870E Chipset: DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
| RAID Technology | AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7*: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band**, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth® v5.4*** |
| USB (Rear) | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A) |
| USB (Front) | 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*, 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording input, Supports up to 32-Bit/384 kHz playback on front panel |
| Audio Features | SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover |

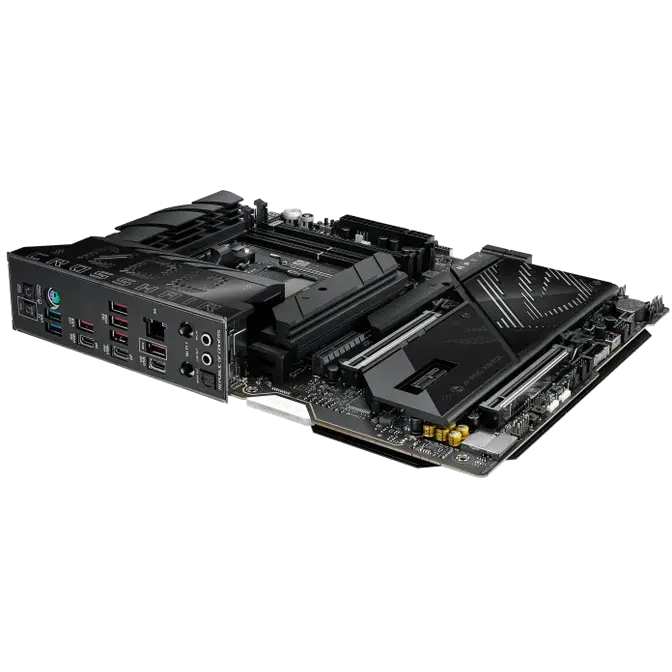

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 1 x PS/2 keyboard/mouse combo port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Full Speed Fan headers, 1 x W_PUMP+ header, 1 x Extra Flow Fan header |
| Internal I/O Connectors | Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector |
| Internal I/O Connectors | Storage Related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports |
| Internal I/O Connectors | USB: 2 x USB 20Gbps connectors (support USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous | 1 x 80 Light Bar jumper, 3 x Addressable Gen2 headers, 1 x Alteration PCIe mode switch, 2 x BCLK button, 1 x BIOS Switch button, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper, 1 x Pause switch, 12 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switches, 1 x RSVD_4 header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header |
| Extreme OC Kit | FlexKey button, LN2 Mode, ProbeIt, ReTry button, Safe boot button, Start button, Slow Mode |
| Extreme Engine Digi+ | SMD Capacitor, MicroFine alloy choke |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| ASUS Thermal Solution | M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, Metal backplate |
| ASUS EZ DIY | Backplate, BIOS FlashBack™ button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM |
| Aura Sync | Addressable Gen2 header(s) |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | Support: up to 60W fast charging and USB Wattage Watcher*, Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A, Compatible with PD3.0 and PPS |
| Software Features | ROG Exclusive Software: ROG CPU-Z, Dolby Atmos, Internet Security (1-year full version) |
| ASUS Exclusive Software | Armoury Crate: AIDA64 Extreme (1 year full version), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, WinRAR (40 Days Free Trial), Adobe Creative Cloud (Free Trial) |
| UEFI BIOS | AI Overclocking Guide, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

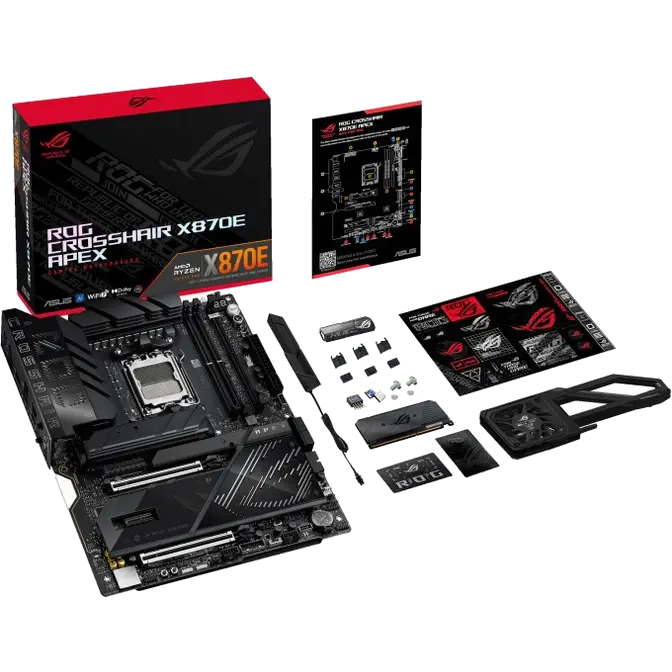

| Accessories | ROG DIMM.2 with Heatsink: 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad for ROG DIMM.2, 2 x M.2 screw package for ROG DIMM.2 |
| Additional Cooling Kit | 1 x ROG Memory Fan Kit |
| Miscellaneous | 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 3 x M.2 Q-Slide package, 3 x M.2 rubber package, 1 x ROG stickers, 1 x ROG thank you card, 1 x ROG Bottle Opener |
| Installation Media | 1 x USB drive with utilities and drivers |
| Documentation | 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
