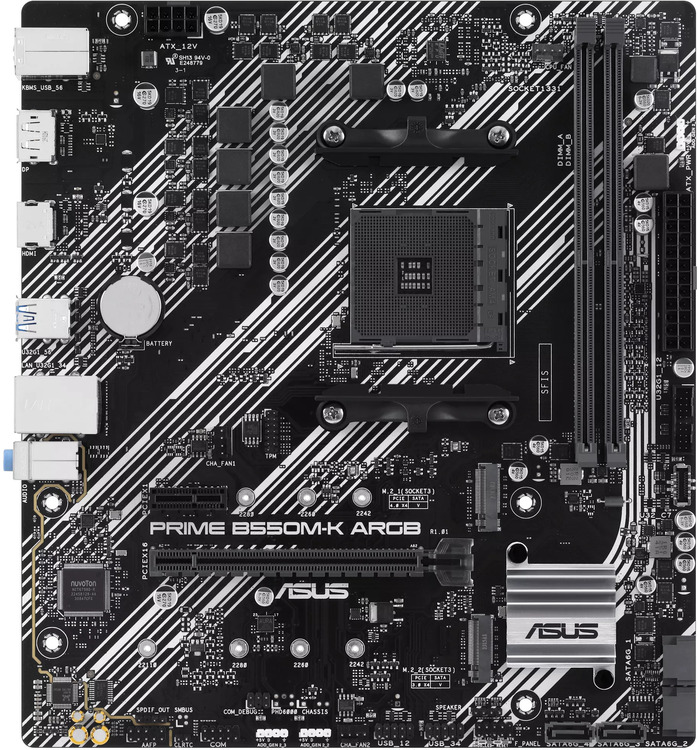

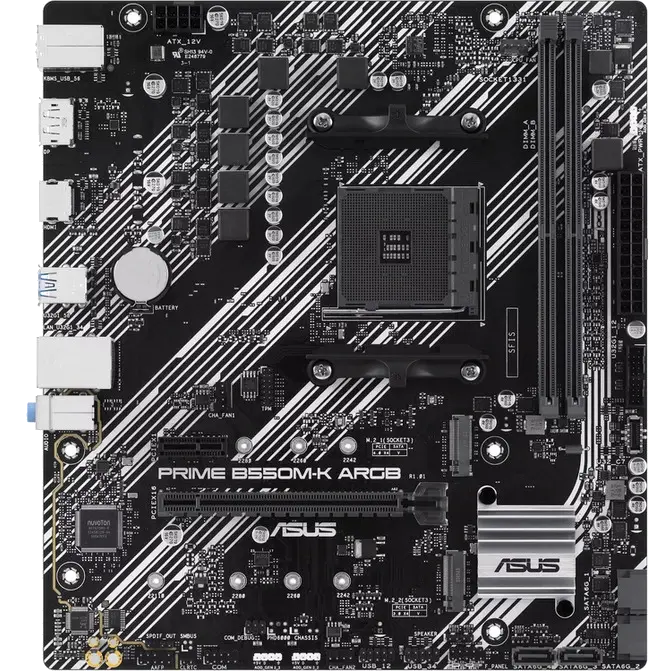

ASUS AM4 MicroATX PRIME B550M-K ARGB DDR4 Motherboard
Web ID: 45669
CPU Socket: AMD AM4
Motherboard Form Factor: Micro-ATX
Chipset: AMD B550
RAM Type: DDR4
PCIe Size: PCIe x1 || PCIe x16
Storage Interface: 2 x M.2 PCIe || 4 x SATA
LAN: 1 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB: 4 x USB 3.2 Type-A || 2 x USB 2.0
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: PRIME B550M-K ARGB
Manufacturer Website
$104SAVE $5
| Model | PRIME B550M-K ARGB |
| Socket | AM4 |
| CPU | AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 Chipset |
| Memory | 2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory |
| Graphics | 1 x DisplayPort, 1 x HDMI™ port |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB: 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A); Front USB: 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers; Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector; Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports; USB: 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, Aura Sync |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR; UEFI BIOS: ASUS EZ DIY |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: 2 x SATA 6Gb/s cables; Miscellaneous: 1 x I/O Shield, 1 x Screw package for M.2 SSD; Documentation: 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.6 inch x 8.7 inch (24.4 cm x 22.1 cm) |
