ASUS AM4 ATX TUF X470-PLUS Gaming Motherboard

Web ID: 23111

AMD Ryzen AM4 Socket, X470 Chipset, 4 x DDR4 Memory slots, 2 x PCIe 3.0 x16 (x16, x8) slots, 1 x PCIe 2.0 x16 (x4 mode), 3 x PCIe x1, 1 x M.2 PCIe, 2 x M.2 PCIe/SATA Slots, 6 x SATA 6Gbps, RAID 0, 1, 10, DVI, HDMI, Gigabit LAN, 1 x USB 3.1 Type-C (Gen1), 2 x USB 3.1 (Gen2), 6 x USB 3.1 (Gen1) (2 via back panel, 4 via internal header), 6 x USB 2.0 (2 via back panel, 4 via internal header), 7.1 Channel High Definition Audio, ATX Form Factor
Manufacturer Warranty: 3 Year
Manufacturer PN: TUF X470-PLUS Gaming
GTIN: 889349951668
Manufacturer Website

$269

Arm Your Battlestation

TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

TUF X470-plus Gaming


Easy PC DIY Experience

TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.

TUF gaming alliance

TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.



TUF PROTECTION

SafeSlot

Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

safeslot


ESD GUARDS

Electrostatic discharge protection

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV

ESD Guard




Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

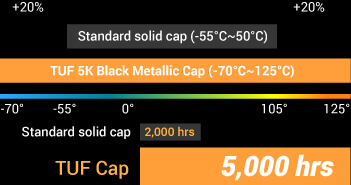

TUF CAPACITORS

+20% temperature tolerance and 5X-longer lifespan.

TUF MOSFETs

Certified military-grade MOSFETs with lower RDS(on)*.

*Lower RDS(on) results in better power efficiency and reduced heat generation.



TUF LANGuard

Best surge protection

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

PERFORMANCE LEVEL UP

FLEXIBLE COOLING CONTROLS

GPU Temperature Sensing

System temperatures are key to a stable gaming rig ? especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.

* ASUS GeForce 700 and later cards supported.

TUF X470-plus Gaming



Fan Xpert 4 Core

TUF X470-PLUS Gaming features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.

  •
    Multiple temperature sources
  •
    All-in-one water-cooling set
  •
    4-pin PWM/DC fan
  •
    Smart protection
  • With Fan Xpert 4 Core you're able to control system fans based on inputs from up to three temperature sources. For example, Fan Xpert 4 Core can be set to spin up the chassis fans in response to the GPU temperature. So, when the gaming action heats up, additional cooling kicks in — just when you most need it. Choose your temperature sources and thresholds, from motherboard and CPU to GPU, and leave Fan Xpert 4 Core to do the rest.

DDR4 SUPPORT

TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.

Gaming Audio

DTS CUSTOM FOR GAMING HEADSETS

Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ? Aerial, Soundscape, and Tactical ? for different genres, you'll have a distinct advantage in every game.

  • CPU
    AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
    Supports CPU up to 8 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD X470
  • Memory
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    AMD 7th Generation A-Series/Athlon X4 Processors
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
    Multi-VGA output support : HDMI/DVI-D ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB (for iGPU exclusively)
  • Multi-GPU Support
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD X470 chipset
    1 x PCIe 2.0 x16 (max at x4 mode)
    3 x PCIe 2.0 x1
  • Storage
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD 7th Generation A-Series/Athlon X4 Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
    AMD X470 chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
    6 x SATA 3Gb/s port(s)
    Support Raid 0, 1, 10
  • LAN
    Realtek® RTL8111H
    TUF LANGuard
  • Audio
    Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
  • USB Ports
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
    2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
    1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
    AMD X470 chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
    AMD X470 chipset :
    4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
    AMD X470 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    ASUS TUF PROTECTION
    - ASUS SafeSlot: Protect your graphics card Investment
    - ASUS ESD Guard: Enhanced ESD protection
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    AURA :
    - Aura Lighting Control
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 4 Core
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A,
    1 x USB 3.1 Gen 1 (blue) USB Type-CTM,
    2 x USB 2.0
    2 x USB 3.1 Gen 1 (blue)
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x RGB Header(s)
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x AIO_PUMP connector (1 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x COM port header
  • Accessories
    User's manual
    ASUS Q-Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x TUF GAMING Sticker
    1 x TUF Certification card(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
  • Manageability
    DMI 3.0, WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
