Name

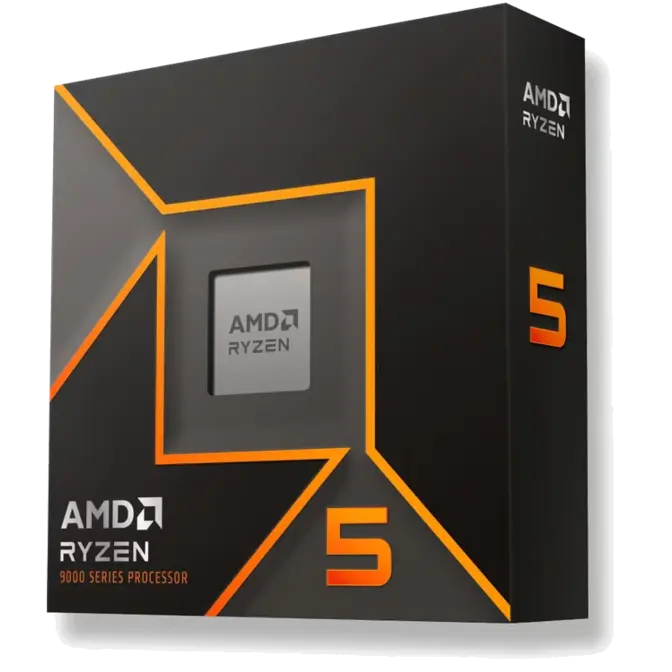

AMD Ryzen™ 5 9600X

Family

Ryzen

Series

Ryzen 9000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

Granite Ridge AM5

Architecture

Zen 5

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 5.4 GHz

Base Clock

3.9 GHz

L1 Cache

480 KB

L2 Cache

6 MB

L3 Cache

32 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 4nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

Package Die Count

2

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Premium air cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

95°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 2.0 (480Mbps) Ports

1

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28 , 24

Additional Usable PCIe Lanes from Motherboard

X870E

8x Gen4

X870

4x Gen4

X670E

12x Gen4

X670

12x Gen4

B650E

8x Gen4

B650

8x Gen4

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

192 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5600

2x2R

DDR5-5600

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires mobo support)
Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes
Product ID Boxed

100-100001405WOF

Product ID Tray

100-000001405
Supported Technologies

AMD EXPO™ Technology , AMD Ryzen™ Technologies

Warranty Information

Name: AMD AM5 Ryzen 5 9600X 6 Core 5.4GHz CPU 100-100001405WOF - Computer Alliance
Brand: AMD
SKU: 42160
Price: 349.00 AUD
Availability: BackOrder

3 Year

Manufacturers Warranty

AMD AM5 Ryzen 5 9600X 6 Core 5.4GHz CPU 100-100001405WOF
