General Specifications

Name

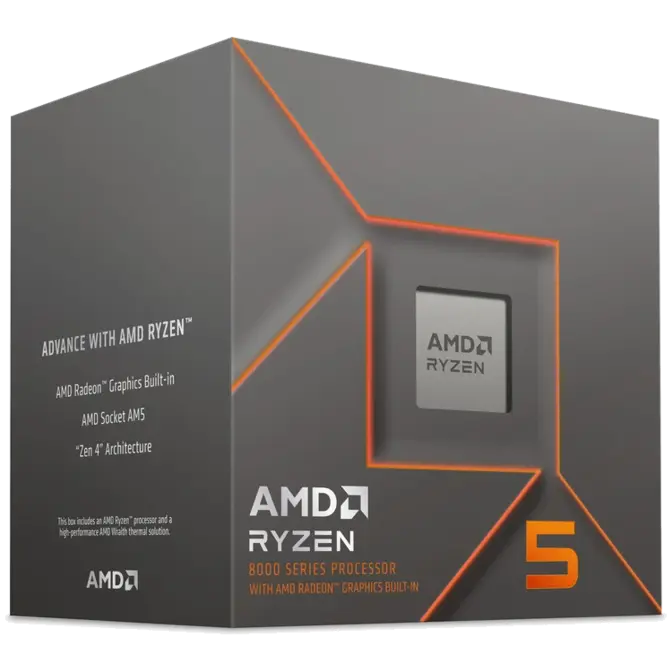

AMD Ryzen™ 5 8500G

Family

Ryzen

Series

Ryzen 8000 Series

Form Factor

Desktops

AMD PRO Technologies

No

Regional Availability

Global

Former Codename

Phoenix

Processor Architecture

2x Zen 4 , 4x Zen 4c

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 5 GHz

Max Zen4c Clock

Up to 3.7 GHz

Base Clock

3.5 GHz

Zen4 Base Clock

4.1 GHz

Zen4c Base Clock

3.3 GHz

L2 Cache

6 MB

L3 Cache

16 MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

TSMC 4nm FinFET

CPU Compute Die (CCD) Size

137mm²

Package Die Count

1

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax)

95°C

Launch Date

1/31/2024

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps)

2

Native USB 3.2 Gen 2 (10Gbps)

2

Native USB 2.0 (480Mbps)

1

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

14 , 10

NVMe Support

Boot , RAID0 , RAID1

System Memory Type

DDR5

Memory Channels

2

Max. Memory

256 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

Graphics Capabilities

Graphics Model

AMD Radeon™ 740M

Graphics Core Count

4

Graphics Frequency

2800 MHz

DirectX® Version

12

DisplayPort™ Version

2.1

DisplayPort Extensions

Adaptive-Sync , HDR Metadata , UHBR10

DisplayPort Max Refresh Rates (SDR)

7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)

7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

HDMI® Version

2.1

HDCP Version Supported

2.3

USB Type-C® DisplayPort™ Alternate Mode

Yes

Multi-Monitor Support

Yes

Max Displays

4

AMD FreeSync™

Yes

Wireless Display

Miracast

Max Video Encode Bandwidth (SDR)

1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth

1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory

Available

AI Engine Capabilities

AMD Ryzen™ AI

Not Available

Product IDs

Product ID Boxed

100-100000931BOX

Product ID Tray

100-000001491 , 100-000000931

Product ID MPK

100-100000931MPK

Security, Virtualization, and Manageability

AMD Enhanced Virus Protection (NX bit)

Yes
