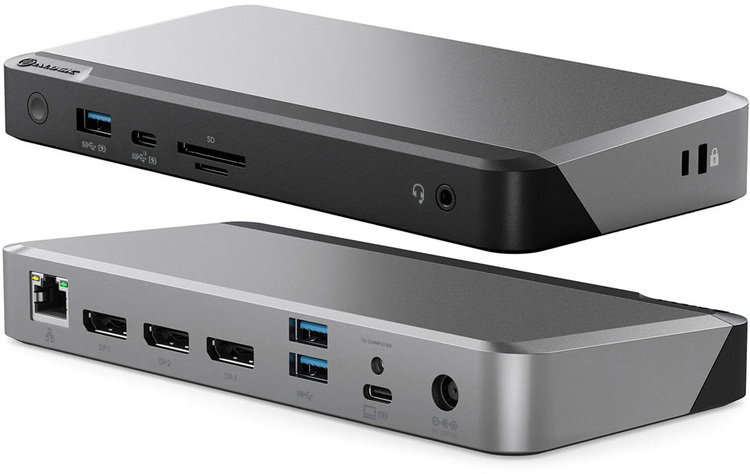

Alogic MX3 USB-C Triple Display DP Alt. Mode Docking Station with 100W Power Delivery
Web ID: 32682
Supports up to 3x 4K displays
Comprehensive support for connecting peripherals:
3 x DisplayPort
3 x USB-A (5G)
1 x USB-C (10G)
Combo Headphone/Microphone Jack
SD 4.0 and Micro SD 4.0 Card Reader
Power Delivery of up to 100W to charge and power connected laptops
Gigabit Ethernet port for wired networking in corporate environments
Durable and stylish ABS housing
Lock slots for securing the device in shared working environments
Manufacturer Warranty: 2 Year
Manufacturer PN: DUPRMX3-WW
The ALOGIC USB-C MX3 Triple Display Dock is designed to expand the capabilities of your USB-C equipped laptop. Engineered for compatibility across all Windows USB-C enabled laptops, the MX3 dock provides access to all of the ports required in a home office or corporate environment.
The dock provides for connection of up to three external monitors, Gigabit Ethernet networking, 3 x USB-A 3.2 (5G), 1 x USB-C 3.2 (10G), 3.5mm Combo Headphone Jack and SD and Micro SD Card Readers.
When connected the dock will also charge USB-C laptops with up to 100W of power – all over a single cable.
Feature laden, this dock is a cost effective and functional companion for any Windows laptop.
Triple Display – Up to 4K
The MX3 dock can support up to three external displays connected to the 3 x DisplayPort outputs*. The dock supports extension or mirroring across the three external displays when used with a Windows Laptop.
* The quantity and resolution of video outputs supported is dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for details on the output capabilities of computers based on their specifications.
In addition to supporting up to three external displays, the dock provides connections for all other standard peripherals including:
• 3 x DisplayPort Video Ports (up to 4K)*
• 3 x USB-A (5G)
• 1 x USB-C (10G)
• Gigabit Ethernet
• Combo Headphone/Microphone Jack
• SD 4.0 and Micro SD 4.0 Card Reader
The dock also features lock slots for securing it to a desk when used in an office or shared working environment.
100W Laptop Charging / Power Delivery
When connected, the dock can charge laptops with up to 100W of power. This allows for a perfect single cable solution to add multiple displays, USB accessories, Ethernet, headphones/mic and charge your laptop all at the same time.
Plug and Play: Driverless
The MX3 dock is designed to work as an extension of your laptop without the need to install drivers or additional software. Plug and Play compatible, the MX3 dock is supported by major operating systems out of the box.
Product Dimensions: 190 x 90 x 26.5mm (W x D x H)
Colour: Space Grey and Black
Weight (product): 535g
3 x DisplayPort (DP1.4/DP++)
1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support
1 x USB-A 3.1 Gen 1 (5G) BC 1.2 and Apple Charging Support
2 x USB-A 3.1 Gen1 (5G)
1 x 3.5mm TRRS Audio / Microphone Jack
1 x RJ45 Ethernet 1Gbps
1 x SD Card Reader (SD 4.0)
1 x Micro SD Card Reader (SD 4.0)
1 x USB-C Port
135W External Power Adapter (supplied)
Dock can provide up to 100W power to computer
Resolution Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 DSC enabled host*
*See resolution support table below for maximum outputs
Analogue audio line/microphone in/out
