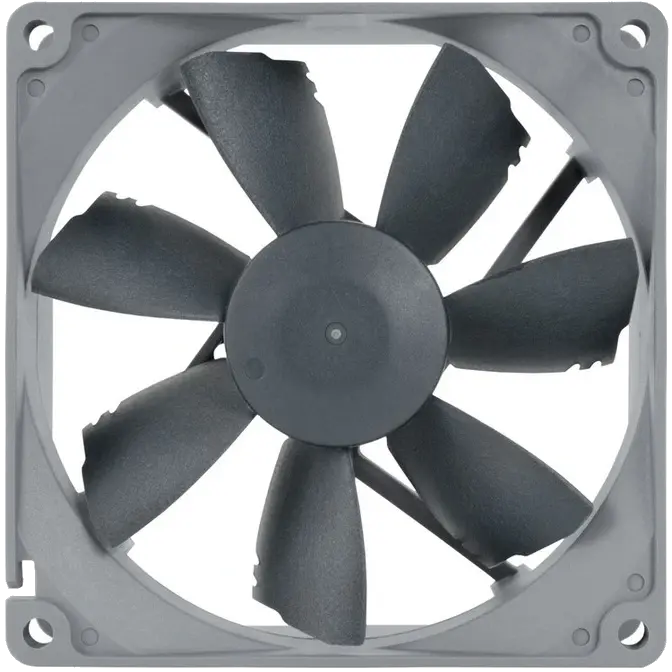

92mm Noctua NF-B9 Redux Edition 1600RPM Quiet Case Fan PN NF-B9-REDUX-1600

Web ID: 13139

The NF-B9's highly-optimised blade design achieves an exceptional level of airflow and static pressure that most other fans can only reach at much higher speeds
Manufacturer Warranty: 6 Year
Manufacturer PN: NF-B9-REDUX-1600
GTIN: 842431012418
Manufacturer Website

Noctua - Bild

The NF-B9's highly-optimised blade design achieves an exceptional level of airflow and static pressure that most other fans can only reach at much higher speeds. Bevelled blade tips, Vortex-Control Notches as well as Noctua's SCD drive system and premium-grade SSO-Bearing ensure outstanding quietness and long-term stability.




BBTBevelled Blade Tips
Due to advanced design measures like the bevelled blade tips, the NF-B9 is surprisingly quiet despite its outstanding airflow and pressure performance. button

VCNVortex-Control Notches
Psychoacoustic optimizations like the Vortex-Control Notches make the NF-B9's noise pattern more pleasant to the human ear. button

SCDSmooth Commutation Drive
The new SC drive system reduces torque variations and thereby ensures improved running smoothness, particularly at lower speeds. button

SSOSelf-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability. button



Size   92x92x25 mm



Bearing   SSO-Bearing



Blade Geometry   NF-B9 Blade Design with BBT & VCN



Rotational Speed (+/- 10%)   1600 RPM



Rotational Speed with L.N.A. (+/- 10%)   1300 RPM



Rotational Speed with U.L.N.A. (+/- 10%)   1000 RPM



Airflow   64.3 m³/h



Airflow with L.N.A.   52,6 m³/h



Airflow with U.L.N.A.   41,1 m³/h



Acoustical Noise   17,6 dB(A)



Acoustical Noise with L.N.A.   13,1 dB(A)



Acoustical Noise with U.L.N.A.   7,9* dB(A)



Static Pressure   1,61 mm H2O



Static Pressure with L.N.A.   1,09 mm H2O



Static Pressure with U.L.N.A.   0,64 mm H2O



Input Power   1,32 W



Input Current   0,11 A



Voltage Range   12 V



MTBF   > 150.000 h


Warranty   6 years
