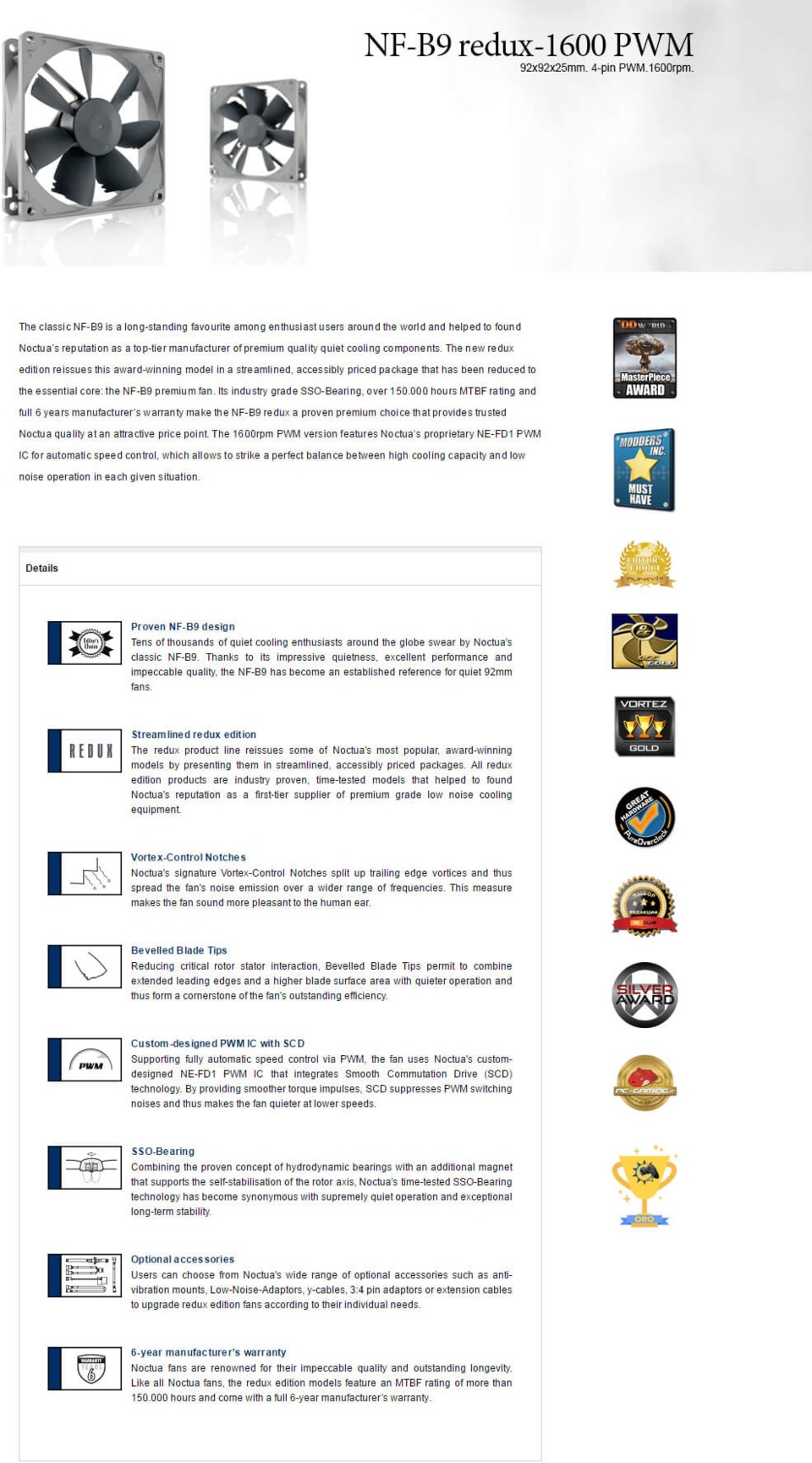

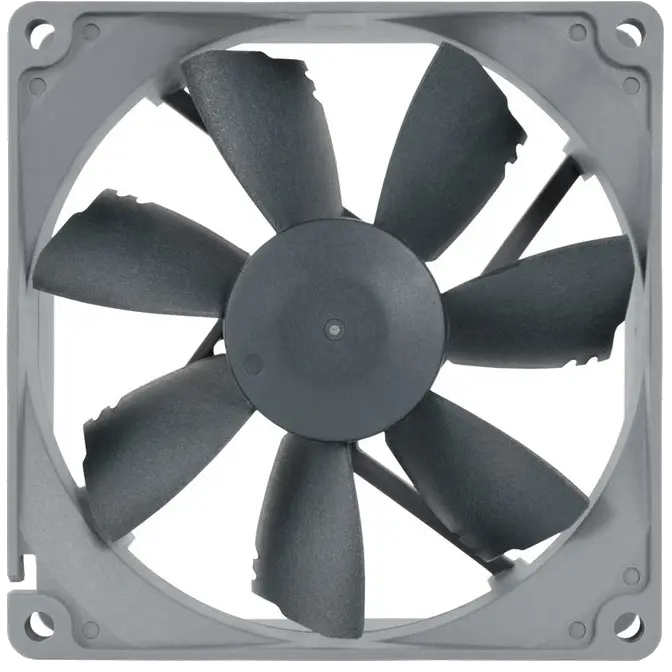

Dimensions without anti-vibration pads

92 x 92 x 25 mm

Frame shape

Square

Mounting hole spacing(s)

82.5 x 82.5 mm

Weight

80 g

Material frame

PBT GF30

Material impeller

PBT GF30

Material anti-vibration pads

Silicone rubber

Bearing

SSO

Rotational direction

Counter-clockwise

Frame colour

Light Grey

Impeller colour

Dark Grey

Connector type

A2543-4PIN (or equal)

Cable length

400 mm

Wire

26 AWG

Sleeving

Fibreglass silicone mesh

Rotational speed (max.)

1600 rpm

Rotational speed @ 20% PWM

400 rpm

Rotational speed @ 0% PWM

0 rpm

Acoustical noise (max.)

17.6 dB(A)

Airflow (max.)

64.3 m³/h (37.85 CFM)

Static pressure (max.)

1.61 mm H2O

Motor type (phases)

Single phase

Slots

4

Driver IC

NE-FD1

Rated voltage

12 V

Starting voltage

7 V

Max. operating voltage

13.2 V

Pin configuration

Pin 1

Black: Ground (GND)

Pin 2

Yellow: Voltage (Vcc)

Pin 3

Green: RPM Signal

Pin 4

Blue: PWM Signal

Input power (max)

0.96 W

Input power (typical)

0.91 W

Input current (max)

0.08 A

Input current (typical)

0.08 A

Safety standards

EN62368-1

EMC standards

EN55032, EN55035

UL

CE

UKCA

Production standards

ISO 9001 & ISO 14001

Flammability

UL 94 V-0

REACH

RoHS

CMRT

EMRT

Ingress protection

IP50

Operating temperature

-10°C to +70°C

Operating humidity

15 – 90 %

Storage temperature

-20°C to +75°C

Storage humidity

15 – 90 %

MTTF

> 150,000 h

Locked rotor protection

Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.

Polarity protection

Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.

Overvoltage protection

Overcurrent protection

Insulation resistance

10 M? / between unshielded wire and frame at 500 VDC/min

Dielectric strength

5 mA max. / measured between lead wire (+) and frame at 500 VAC/min

Packaging weight (including product)

160 g

EAN

4716123315315

UPC

842431012401

Packaging unit

30 pcs

Packaging unit weight

5.5 kg
