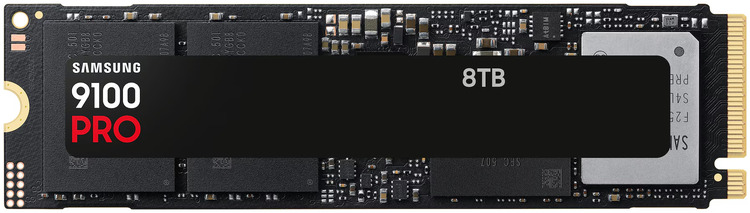

8TB Samsung 9100 PRO PCIe 5.0 NVMe M.2 SSD
Web ID: 47648
Storage Size: 8TB
Drive Form Factor: M.2 2280
Storage Interface: M.2 PCIe
Manufacturer Warranty: 5 Year
Manufacturer PN: MZ-VAP8T0BW
GTIN: 887276904962
Manufacturer Website
$2399
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Sequential Read | Up to 14,800 MB/s Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 13,400 MB/s Performance may vary based on system hardware & configuration |
| Warranty | 5-year Limited Warranty or 4,800TBW Limited Warranty |
| Application | Client PCs, Game Consoles |
| Weight | Max 9.5g |
| Dimension (WxHxD) | Max 80.15 x Max 22.15 x Max 3.88 mm |
| Rated Capacity | 8,000GB (1GB = 1 Billion bytes by IDEMA) Actual usable capacity may be less |
| Form Factor | M.2 (2280) |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 8GB Low Power DDR4X SDRAM |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 |
| WWN Support | Not supported |
| Device Sleep Mode Support | Supported |
| Random Read | Up to 2,200,000 IOPS Performance may vary based on system hardware & configuration |
| Random Write | Up to 2,600,000 IOPS Performance may vary based on system hardware & configuration |
| Avg Power Consumption | Read: 10.5 W / Write: 8.8 W |
| Idle Power Consumption | Typical 9.3 mW |
| Sleep Power Consumption | Typical 8.6 mW |
| Allowable Voltage | 3.3 V ± 5% |
| Reliability (MTBF) | 1.5 Million Hours |
| Operating Temperature | 0 - 70 ? |
| Shock Resistance | 1,500 G & 0.5 ms (Half sine) |
| Installation Kit | Not Available |
| Management Software | Magician Software for SSD management |
