Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

160 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 70.8A 0.3A 3A

Combined Load

130W 130W 850W 3.6W 15W

Total Output

850W

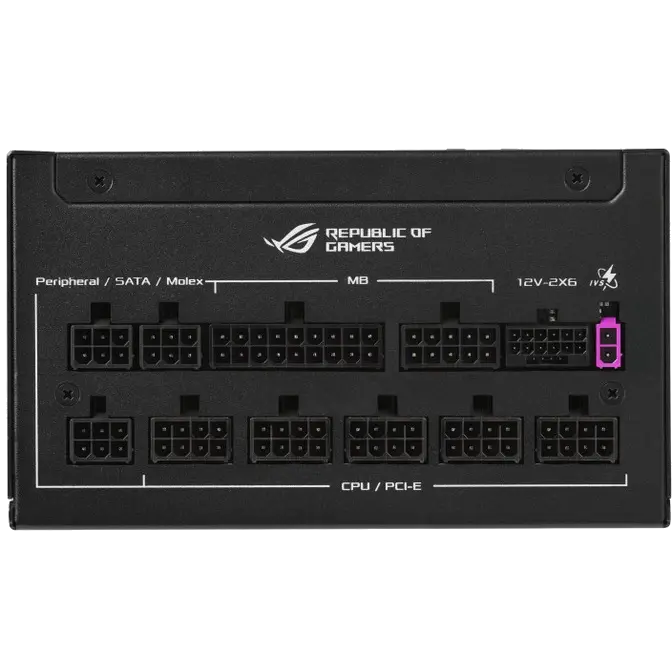

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 3
SATA x 6
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 3 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1

Weight

2.8 kg (single PSU)

Cybenetics Noise Level Certification

TBD

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
