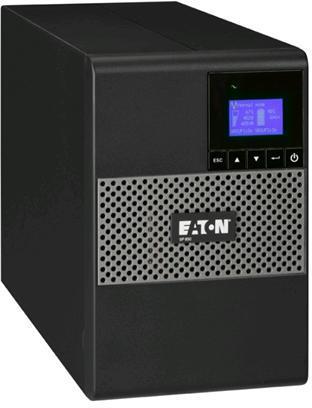

850VA Eaton 5P Line Interactive UPS PN 5P850AU

Web ID: 12153

The Eaton 5P is a Line interactive, density optimised (up to 1550VA in 1U) power protection for IT & Telecom environment. Wide power management capabilities offering point-to-point and network supervision ONLY WHILE STOCKS LAST!
Manufacturer PN: 5P850AU
Warranty: 2 Year
Manufacturer Website

Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Tower
Part Number 5P850AU
Rating (VA/Watts) 850/600
Dimensions (H x W x D, mm) 230 x 150 x 345
Weight (kg) 10.4
Warranty 3 years on electronics, 2 years on batteries
(Ships with the following items)
Eaton Intelligent Power Software CD
USB cable
Serial cable
Safety guide
Quick start guide
CD with 10-language user manual
Electrical Input
(1) Aust. 10A
Australian 10A
Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V)
Output Receptacles
(3) IEC-320-C13
(2) Aust. 10A
Australian 10A
Remotely controlled sockets 2 groups of 1 x AU (10 A) output receptacles
Output Frequency 50/60 Hz +/- 0.1 % (autosensing)
Battery Management ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection
Cold start (No mains power) Yes
User Interface 3 LEDS + Multilingual LCD : access to measures, alarm messages and customization
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise < 40 dBA
Operating Temperature 0 to 35°C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick
Approvals CE, CB report
Quality Designed, manufactured and marketed under ISO9001 & ISO14001 quality system

Selecting the Right UPS

Eaton's power management solutions are based on protecting the nine most common power problems present in any environment. This unique approach makes your product selection decisions about power protection much simpler. The nine power problems listed below are potentially harmful to both your data and your hardware. Eaton's products offer three levels of power protection:

Series 3, Series 5 and Series 9. Based on the parameters defined by your application, you can select an uninterruptible power system (UPS) from the series that best matches your power protection needs.

To provide maximum power protection, Eaton offers a full line of Series 9 UPSs with both single-phase and three-phase models in the Series 9 family.

Within each Series, Eaton has created 3 classes of products; to provide "Good, Better and Best" levels of features and performance and enable the best product fit for any application and budget.

Series 3 Standby UPS: Backup power

The Eaton's series 3 UPS primarily protects against three of the nine power problems including power failures, power sags and power surges. This essential, cost-effective protection is necessary in order to prevent damage such as data loss, file corruption, hardware damage and equipment shutoff. For example, if your utility fails you could lose all of your work-in-progress. The Series 3 UPS offers a degree of protection against the remaining power problems and is most commonly used to protect single workstations and point-of-sale (POS) equipment.

Series 5 Line Interactive UPS: Keeping it smooth

Eaton's series 5 UPS are most effective against five power problems (power failures, power sags, power surges, under-voltage and over-voltage) and offer a degree of protection against other power problems. Some of the damages you risk by not using a Series 5 UPS include premature hardware failure, data loss and corruption, data error, keyboard lockup, storage loss and system lockup. Series 5 UPSs are recommended for small network systems - all the way up to enterprise networking environments.

Series 9 On Line Double Conversion UPS: Total Protection

Eaton's series 9 UPSs protect against all nine power problems: power failures. power sags, power surges, under-voltage, over-voltage, line noise, frequency variation, switching transients and harmonic distortion. Eaton's series 9 comprehensive protection minimises the opportunity for component stress, burnt circuit boards, data crashes and program failures. Series 9 UPSs offer the highest level of power protection available and are always recommended for mission-critical applications like server farms, hospitals and Voice Over Internet Protocol (VOIP) applications.
