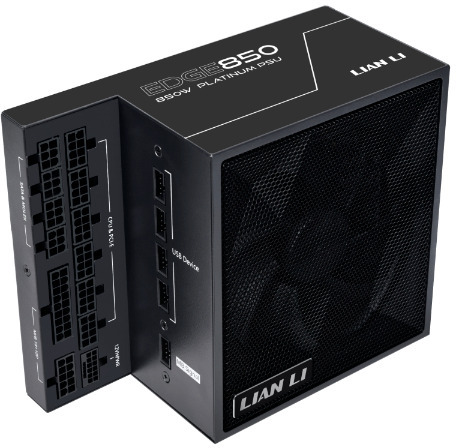

850 Watt Lian Li EG0850.BE Edge Platinum Gen5 Modular Power Supply Black
Web ID: 42304
Power Supply: 850W
Certification: 80 Plus Platinum
Form Factor: ATX (PSU)
Manufacturer Warranty: 10 Year
Manufacturer PN: EG0850.BE
GTIN: 840353045828
Manufacturer Website
$249
| MODEL NAME | EDGE850 |
| MODEL NO. | EG0850 BLACK / EG0850 WHITE |
| COLOR | Black/ White |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
| POWER SUPPLY DESIGN | Fully modular |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM |
| MAX. DC OUTPUT | 850W |
| COMBINED +3.3V & +5V | 120W |
| COMBINED +12V | 849.6W |
| INPUT VOLTAGE | 100-240Vac |
| INPUT FREQUENCY RANGE | 10-5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 92.41%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP |
| CONNECTORS | 1 x 24/20-Pin motherboard connector (500mm) x1pcs |
| 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs | |
| 1 x 8/6+2 Pin PCle connector (550m m) x3pcs | |
| 1 x 12V-2×6 connector (550mm) × 1pcs | |
| 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs | |
| 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs | |
| 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs | |
| 4 x Y Type SATA connector (400mm-125mm x 2) x1pcs | |
| USB*9pin – USB*9pin connector (350mm) × 1pcs | |
| USB*9pin -Type A connector (550mm) × 1pcs | |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2000RPM |
| FAN NOISE LEVEL | 25.96dBA |
| WARRANTY | 10 Years |
