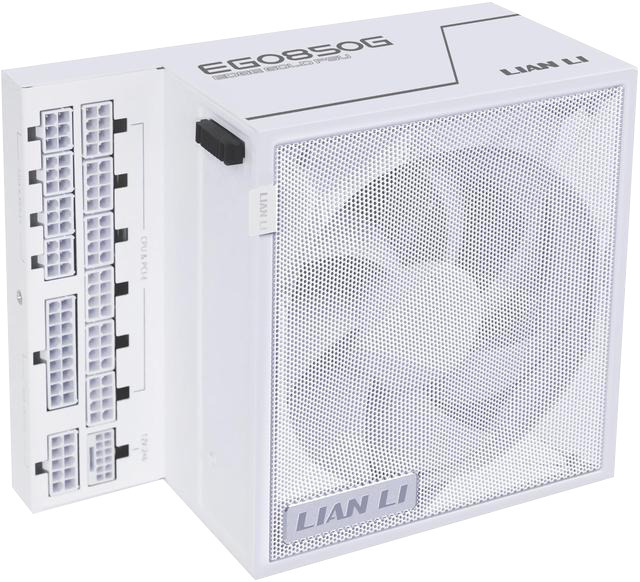

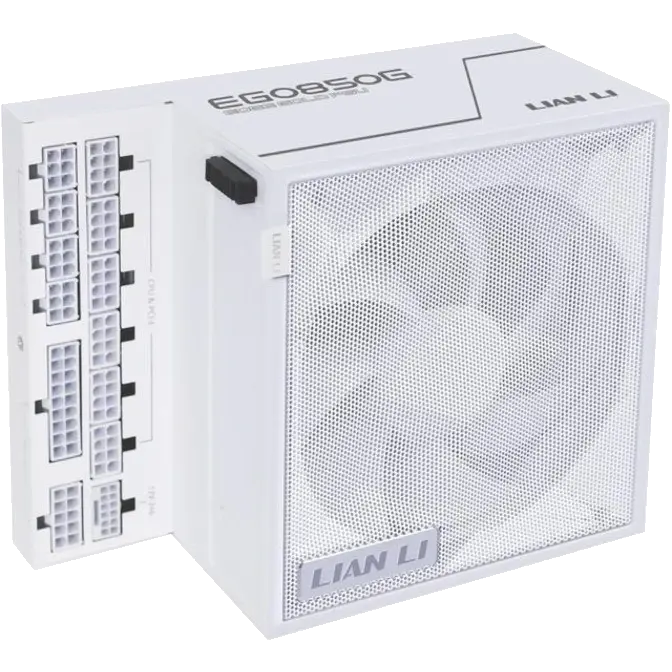

850 Watt Lian Li EDGE Gold ATX Modular Power Supply White
Web ID: 44750
Power Supply: 850W
Certification: 80 Plus Gold
PSU Form Factor: ATX (PSU)
Note: Does not include USB Hub
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 10 Year
Manufacturer PN: EG0850G.W
GTIN: 840353047051
Manufacturer Website
$199
| PRODUCT NAME | EDGE GOLD 850 |
|---|---|
| MODEL | EG0850G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | Black/ White |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| MAX. DC OUTPUT | 850W |
| COMBINED +3.3V & +5V | 120W |
| COMBINED +12V | 849W |
| INPUT VOLTAGE | 100-240Vac |
| INPUT FREQUENCY RANGE | 10-5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 90.71%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP |

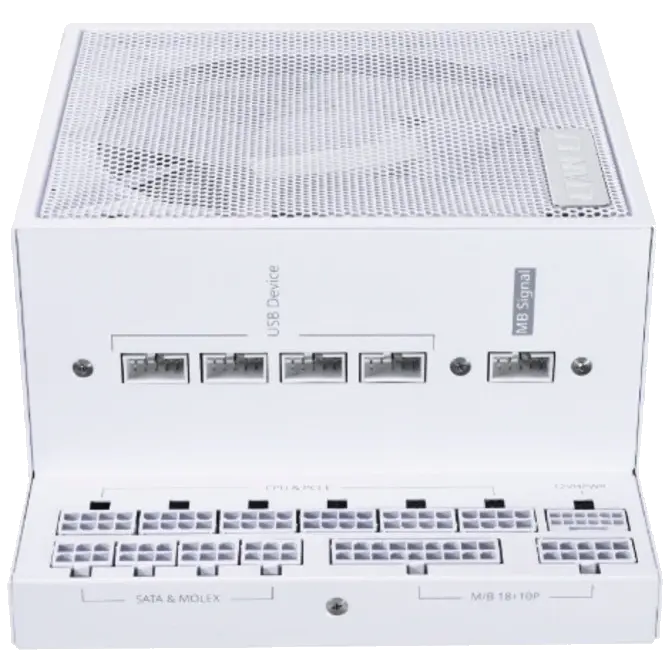

| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2000RPM |
| FAN NOISE LEVEL | 30.9dBA |
| WARRANTY | 10 Years ( Hub 2 Years ) |
