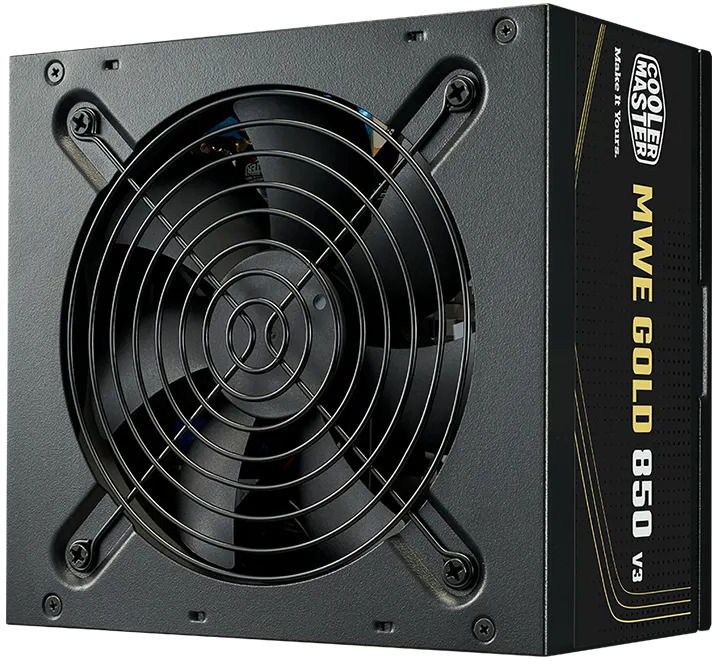

850 Watt Cooler Master MWE Gold V3 ATX 3.1 Power Supply
Web ID: 44850
Power Supply: 850W
Certification: 80 Plus Gold
PSU Form Factor: ATX (PSU)
Manufacturer Warranty: 5 Year
Manufacturer PN: MPE-8506-ACAG-BAU
GTIN: 884102125775
Manufacturer Website
$129
| Model | MPE-8506-ACAG |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-6A 850 |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2400 RPM 850 |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours 850 |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| PCI-e 6+2 Pin Connectors | 4 850 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| 12V-2x6 (12+4 Pin) Connectors | 1 850 |
| Series | MWE Gold Series |
| Modular | Non Modular |
| Form Factor | ATX |
| 80 Plus Efficiency | Gold |
