Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400 W (VA)
Clamping voltage 300 V AC
Reaction time less than 1 nanosecond
Maximum transient spike impulse current 196,000 amps (equivalent to 49,000 amps using UL1449 standard)
Maximum energy dissipation 5868 Joules (equivalent to 2100 Joules using UL1449 standard)
Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits
Number of multi-stage filter banks: 2
Number of isolated banks: 2
Number of dedicated outlets: 4+4
Total number of protected AC outlets: 8
RJ 45 data protection: 1 in and 1 out
AV/TV Connection: In and out
Cable TV ‘F’ type connection: In and out
Earth potential rise protection
Earth leakage range less than 1 milli amp
Operating conditions: Indoor/AC mains
Operating temperatures: -10C/+60C
Cable length: 1.8m
Model No: B8+

Warranty Information

Name: 8 Port Thor B8+ Smart Filter 8 Surge Protection Power Board with Power Filtering - Computer Alliance
Brand: Thor
SKU: 6957
Price: 169.00 AUD
Availability: BackOrder

6 Year

Manufacturers Warranty

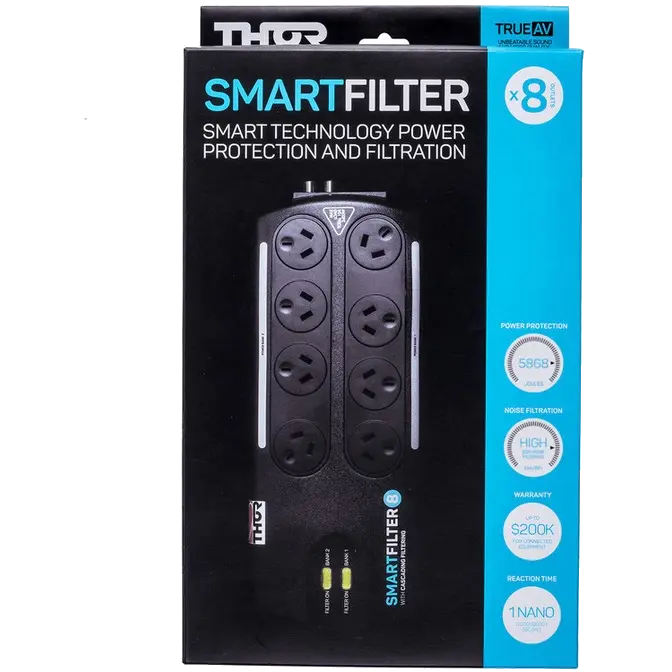

8 Port Thor B8+ Smart Filter 8 Surge Protection Power Board with Power Filtering
