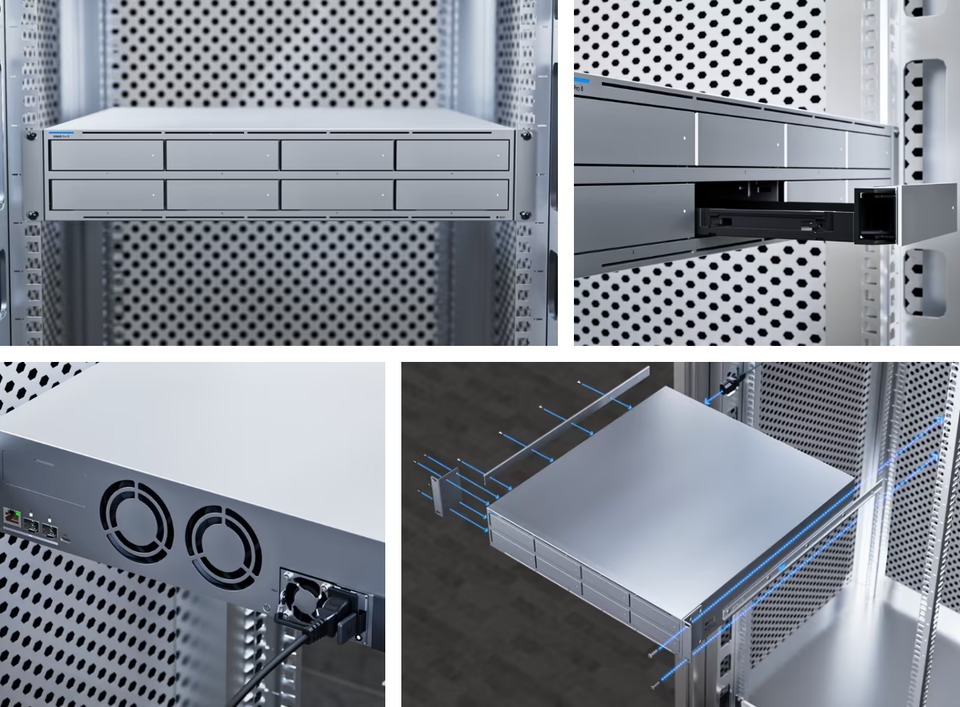

2U rack-mount NAS with (8) 2.5/3.5″ HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.
| Overview | |
|---|---|
| Dimensions | 442.4 x 480 x 87.4 mm (17.4 × 18.9 × 3.4") |
| Storage Capacity | (8) 3.5" drive bays (2) M.2 NVMe bays |
| Networking Interface | (2) 10G SFP+ (10G Only) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Power Redundancy | ? |
| Form Factor | Rack mount (2U) |
| Hardware | |
| Hard Drive Capacity | (8) 2.5/3.5" HDD / SSD support (2) M.2 NVMe SSD support |
| Max. Power Budget for Drives | 225W |
| Max. Power Consumption | 250W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Processor | Quad-Core ARM® Cortex®-A57 at 2.0 GHz |
| Memory | 16 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 11.5 kg (25.35 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LEDs | Ethernet ? SFP+ ? HDD ? System ? |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ? |
| Certifications | FCC, CE, IC |
| Software | |
| Supported File Protocols | NFS ? SMB ? |
| Supported Features on unifi.ui.com | |
| RAID Type | RAID 5 RAID 6 RAID 10 |
| RAID Group | Multiple |
| Hot Spare Support | ? |
| Personal Drive & Shared Drive | ? |
| SSD Cache | ? |
| Max. NVMe SSD Capacity Supported | 4 TiB |
| File Encryption | ? |
| Backup to Remote UNAS | ? |
| Backup to CIFS/SMB Server | ? |
| Backup to Cloud Services | Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi ? |
| Snapshots | ? |
| Share Links | ? |
| Time Machine Backup | ? |
| Client App Support | ? |
| User Groups | ? |
1 Year
Manufacturers Warranty
