8 Bay QNAP TS-832X-2G 10 Gigabit NAS Unit

Web ID: 24723

The powerful 8-bay, quad-core TS-832X includes two 10GbE SFP+ ports to fully support 10GbE high-speed networks at a budget price with maximized ROI. It is also an ARM-based NAS that supports Qtier technology for efficient auto-tiered storage. The PCIe slots extend greater application potential, for example, by installing QNAPs new PCIe wireless network card QWA-AC2600 the TS-832X is transformed into a convenient wireless base station that allows devices to directly connect to the NAS for easy access to its services and Internet connection. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: TS-832X-2G
Manufacturer Website

$1195

The powerful 8-bay, quad-core TS-832X includes two 10GbE SFP+ ports to fully support 10GbE high-speed networks at a budget price with maximized ROI. It is also an ARM-based NAS that supports Qtier™ technology for efficient auto-tiered storage. The PCIe slots extend greater application potential, for example, by installing QNAP’s new PCIe wireless network card QWA-AC2600 the TS-832X is transformed into a convenient wireless base station that allows devices to directly connect to the NAS for easy access to its services and Internet connection.

  • Dual 10GbE SFP+ ports for accelerating virtualization and massive file sharing.

  • PCIe expandability allows for 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

  • Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.

  • Secure private cloud supporting centralized storage, backup, sharing, disaster recovery, and storage capacity expansion.



Available Models

  1. TS-832X-8G

    AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7GHz processor, 8 GB RAM

Quad-core CPU and dual 10GbE SFP+ ports

The TS-832X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor with 2GB/8GB DDR4 RAM (upgradable to 16GB) and supports SATA 6Gb/s. When processing AES 256-bit full NAS volume encryption, the TS-832X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-832X comes with two 10GbE SFP+ ports to fully support 10GbE high-speed networks, delivering a major speed increase for virtualization tasks, fast backup & restoration, and large-data applications.

Windows File Transfer (2 x 10GbE)

Read

2300 MB/s

Write

756 MB/s

10 Gigabytes file transfer

Windows File Transfer with Encryption (2 x 10GbE)

Read

1187 MB/s

Write

467 MB/s

10 Gigabytes file transfer

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-832X with QTS 4.3.4
Volume type: RAID 5; 8 x Intel SSDSC2BB240G4 SSD

Client PC:
Intel® Core™ i7-6700, 16GB RAM, CPU @ 3.40GHz, Mellanox ConnectX®-3 Pro, Win10

Extend NAS functionality with two PCIe slots

The TS-832X features two PCIe slots (1 x PCIe Gen2 x1, 1 x PCIe Gen2 x2) that allow for installing various expansion cards for greater application potential.

  • 10GbE adapters

    Support lightning-fast throughput for bandwidth-demanding tasks such as fast backup/restoration for an ever-growing amount of data and virtualization.

    » Learn More: 10GbE NAS solution

  • QM2 M.2 SSD/10GbE PCIe cards

    Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

    » Learn More: QM2,Qtier

  • USB 3.1 Gen 2 (10Gbps) cards

    USB 3.1 provides faster maximum speeds of 10Gb/s – double that of USB 3.0 – to greatly boost data transfer performance, allowing compatibility with newer, faster USB devices for transferring large-sized media files.

  • Wireless network cards

    Use WirelessAP Station along with a PCIe wireless network card (for example: QNAP QWA-AC2600) to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

    » Learn More: WirelessAP Station

SSD caching and auto tiering enable optimized storage efficiency

The TS-832X supports SSD caching to improve the workflow of random IOPS demanding applications. Qtier™ Technology empowers the TS-832X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

» Learn More: SSD cache,Qtier

Snapshots – a modern way to protect data

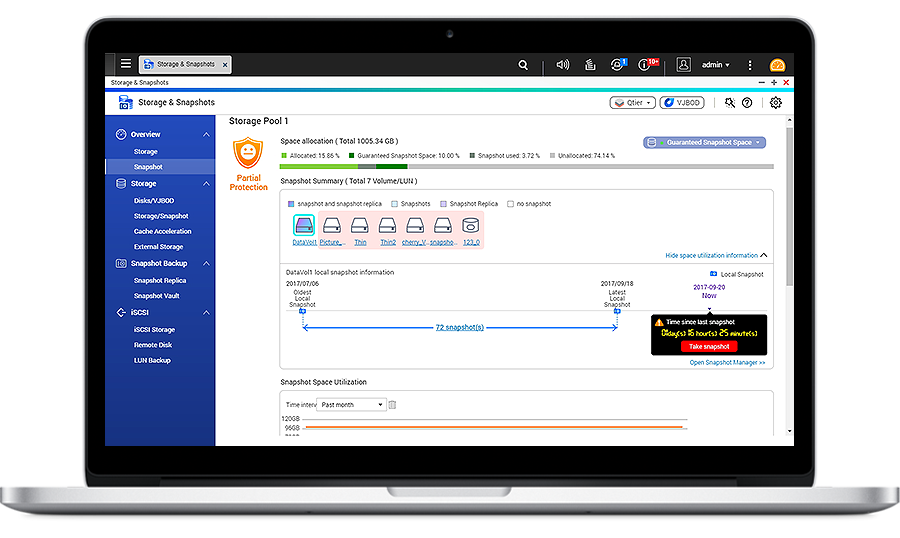

Essential for NAS data protection, snapshots help protect your data by fully recording the NAS system state and the metadata. You can use the Storage & Snapshots Manager or File Station to easily manage snapshots and quickly restore the system to its normal state if an error occurs. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data.

» Learn More: Volume & LUN snapshots ,Mitigate the threat of ransomware

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!

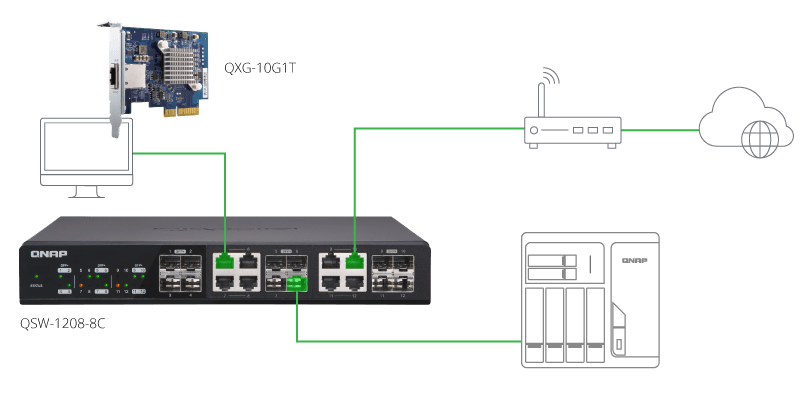

QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

» Learn More: 10GbE switches,10GbE LAN cards

Host container applications

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency as well as rapidly deploying application services across several platforms including the cloud, servers, and PCs.

» Learn More: Container Station,QIoT Containers

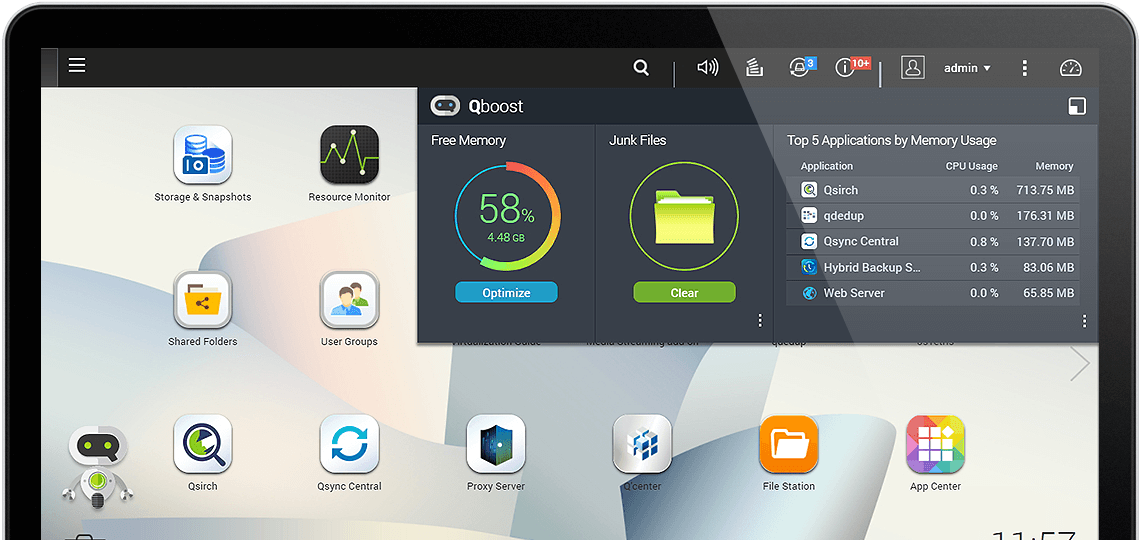

QTS – The intelligent, intuitive and creative NAS operating system

With multiple modularized applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The built-in App Center with hundreds of install-on-demand apps also opens up vast potential for extensive NAS functionality. The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. QTS breaks the barriers of devices, platforms, and geography to bring you advanced features and optimized cloud experiences.

» Learn More: QTS,App Center

Optimized collaboration with seamless file sharing and sync

The TS-832X centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-832X will be made available for all linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

» Learn More: Cross-platform file sharing ,Qsync



Complete backup planning

The TS-832X provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

  • Snapshots for Volume & LUN

    Block-based snapshots are a dependable method for protecting data in the face of the growing threat of ransomware. Snapshots can be taken by schedule or manually and then backed up to other NAS/servers to provide an all-encompassing backup solution.

    » Learn More: Volume & LUN snapshots

  • Windows and Mac backup

    Use the free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is also supported for Mac® users. It is easy, fast and convenient.

    » Learn More: Data backup & Disaster recovery

  • Hybrid Backup Sync

    Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

    » Learn More: Hybrid Backup Sync

Whole new QVR Pro surveillance solution

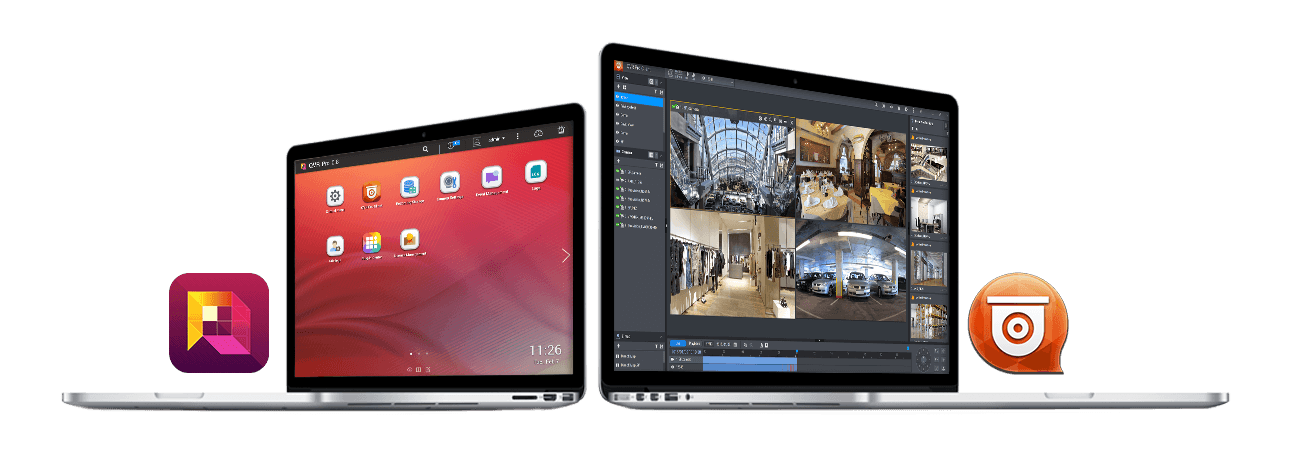

QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on the TS-832X and leverage the advantages of storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live view and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use USB webcams as ONVIF network camera with the QUSBCam2 app.

» Learn More: QVR Pro

  • 5,000+

    compatible IP cameras

  •
  • 8

    free IP camera channels

  •
  • 16

    max. IP camera channels

  •
  • QUSBCam2

    record from USB webcams

Flexible and economical storage expansion

You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

  • Upgrade RAID Capacity

    Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.

    » Learn More: Online RAID capacity upgrade

  • Migrate to a New NAS

    Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

    » Learn More: Migrating from old NAS

  • Attach Expansion Enclosures

    Connect two UX-800P or UX-500Pexpansion enclosures and use the Storage & Snapshots Manager to easily handle NAS capacity expansion.

Expand storage capacity of other QNAP NAS with Virtual JBOD

QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage capacity of your QNAP NAS with unused storage space from other QNAP NAS. The unused storage capacity of the TS-832X can be mounted as local disks in other NAS, and you can create virtual storage pools and volumes for operating NAS services to maximize storage utilization.

Note: ARM-based NAS do not currently support the VJBOD "Host" function to utilize other NAS storage space.

» Learn More: VJBOD

More productivity applications

  • Qfiling

    Automates file organization. Files are well-organized and archived based on your settings.

    » Learn More: Qfiling

  • Qsirch

    A powerful full-text search engine to quickly and precisely find media files, documents, and emails.

    » Learn More: Qsirch

  • QmailAgent

    Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

    » Learn More: QmailAgent

  • IFTTT Agent

    A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.

    » Learn More: IFTTT Agent

  • Browser Station

    Enable remote access through NAS-hosted web browsers to access local LAN resources without needing complex VPN settings.

    » Learn More: Browser Station

  • QIoT Suite Lite

    Combines the security and large capacity potential of QNAP NAS while providing an IoT solution on a private cloud. It only takes three steps to quickly deploy your own IoT application.

    » Learn More: QIoT Suite Lite

TS-832X-2G



CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 2GB DDR4 2400 (1 x 2 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay Hot-swappable 8 x 3.5"/2.5" SATA 6Gb/s HDD or SSD
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port 3 x USB 3.0 (Front: 1; Rear: 2)
PCIe Slot Slot 1: Gen2 x1 (for Wi-fi AIC)
Slot 2: Gen2 x2
Audio 1 x Built-in speaker, 1 x 3.5mm line out jack
Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-8
Buttons Power, Reset, USB One- touch-copy
System Warning Buzzer
Form Factor Tower
Dimensions (H x W x D) 188.2 x 329.3 x 279.6 mm
7.41 x 12.96 x 11.01 inch
Weight Net weight: 6.52 kg (14.37 lbs)
Power Consumption (W) HDD standby:24.53 W
In operation:49.43 W
(with 8 x 2TB HDDs installed )
Sound Level 20.7 dBA
Fan System: 2 x 12 cm smart fan (12V DC)
CPU: 1 x 6 cm fan
Power Supply Unit 250W, 100-240V AC, 50/60Hz, 3.5A
Operating Temperature & Relative Humidity 0 ~ 40°C ( 32°F ~ 104°F ), 5 ~ 95% RH non-condensing, wet bulb: 27°C (80.6°F)
Security Slot Kensington security slot

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
