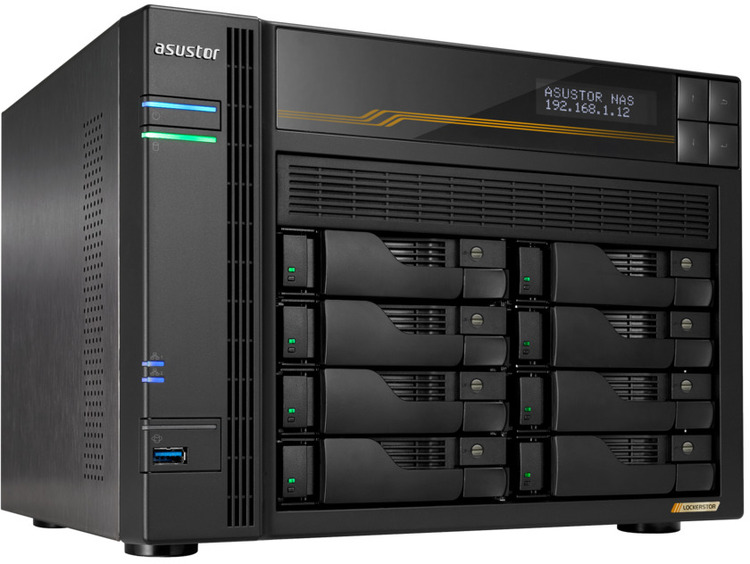

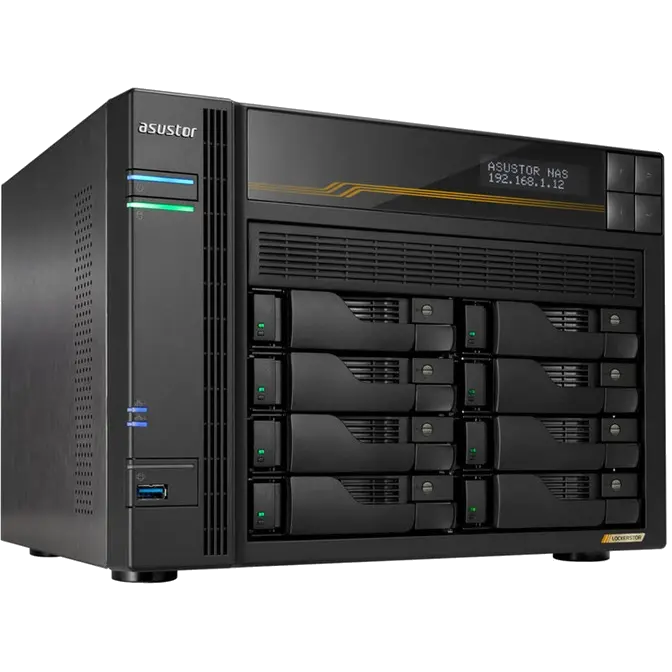

8 Bay Asustor LOCKERSTOR 8 Gen3 10Gb NAS Unit with 4xNVMe Slots
Web ID: 46322
Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz, 3.8 GHz Turbo
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)
Manufacturer Warranty: 3 Year
Manufacturer PN: AS6808T
Manufacturer Website
$2889
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | AMD Ryzen V3C14 |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.3GHz (burst up 3.8 GHz) | |
Memory |
Memory | 16GB ECC DDR5-4800 SO-DIMM Compatibility |
| Memory Module Pre-installed | 16GB (1x 16GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 64GB Installation Guide
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 8 |
| M.2 Drive Slots | 4 Installation Guide | |
| Compatible Drive Type Compatibility |
|
|
| M.2 PCIe Interface | PCIe 4.0 x1 | |
| Maximum Drive Bays with Expansion Unit | 20 | |
| Supports Hot Swappable Drives | ||

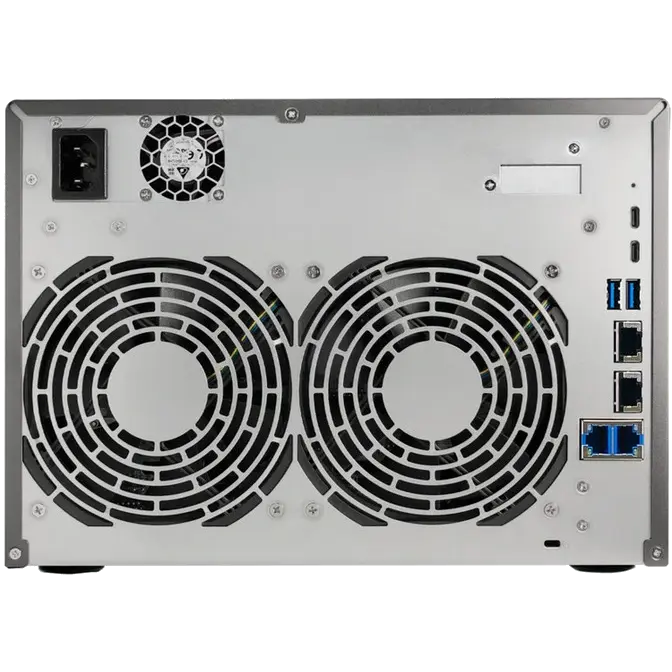

External Ports |
Expansion |
|
| Network |
|
|
|
|
PCIe Expansion Slots | PCIe 4.0, x4 link, (for optional 10 GbE card) Installation Guide |
|
|
Multimedia Output | N/A |
Others |
System Fan | 2x 120mm |
| LCD Panel | ||
| Power Supply Unit / Adapter | 250W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 58.5 W (Operation); 2.4 W (Sleep Mode) |
| Noise Level | 22dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 215.5(H) x 293(W) x 230(D) mm |
| Weight | 6.45 kg / 14.22 lb Package Contents | |
