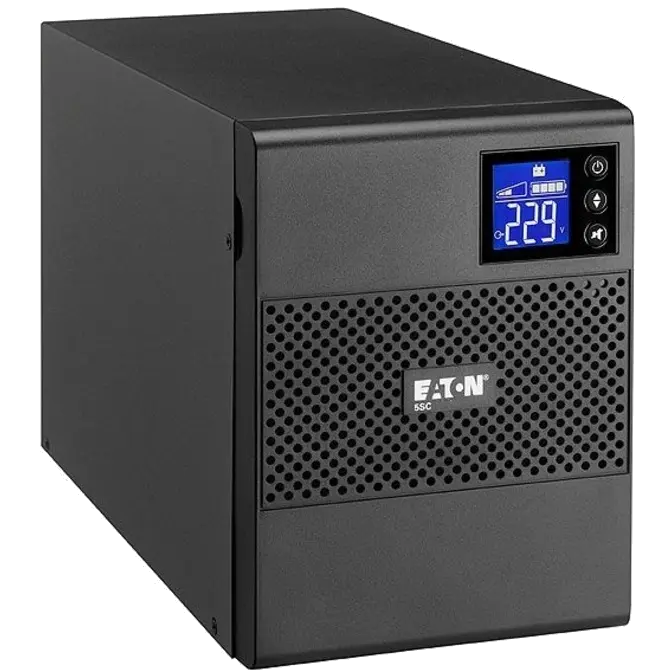

750VA Eaton 5SC Line Interactive Sinewave UPS PN 5SC750i

Web ID: 13473

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: 5SC750i
GTIN: 743172045157
Manufacturer Website

TopologyLine Interactive
Catalog Number5SC750
Rating (VA/Watts)750/525
EfficiencyUp to 94%
Dimensions (H x W x D, inches)8.2 x 5.9 x 13.4
Dimensions (H x W x D, mm)209 x 150 x 340
Weight (kg)10.5
Weight (lbs)23.1
Warranty3-Year warranty covering UPS and battery with a full UPS service plan and battery replacement after online registation.
(Ships with the following items)
User manual CD
Eaton Intelligent Power Manager Software CD
USB cable
Serial Cable (RJ45 to DB9)
Important Safety Instructions
Limited Warranty Details
Electrical Input
Input Cord6 feet (1.8 meters)
Input Voltage Range96 - 144 Vac
Nominal Voltage120Vac
Frequency50/60 Hz
Frequency Range60 Hz: 55–65 Hz
50 Hz: 45–55 Hz
Electrical Output
Nominal Voltage120V Default (100/110)
Efficiency (Normal Mode)Up to 94%
Battery DescriptionSealed, lead-acid; maintenance free
Battery ManagementABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacement
Battery ReplacementUser Replacable - non-hotswap
Start On BatteryCold-start enabled; first cold start is always forbidden
User InterfaceGraphical display. UPS status in a single view.

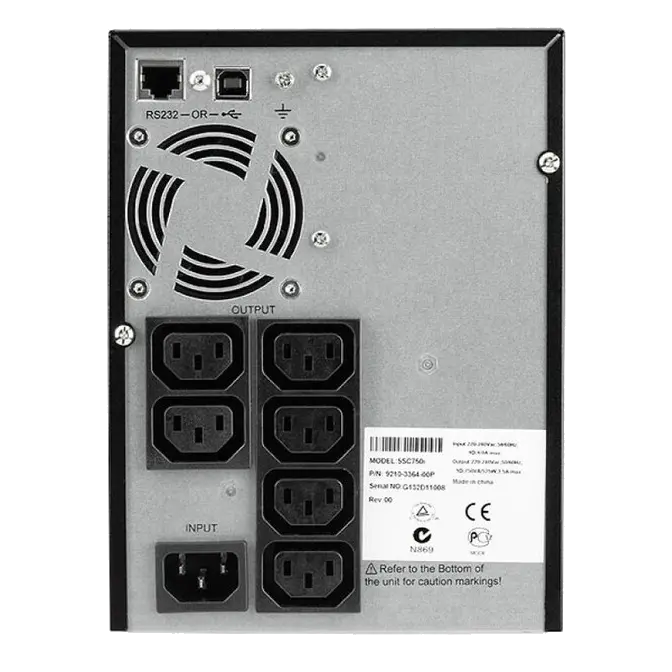

Communication PortsRS-232 (RJ45) port; USB port as standard (HID). 6-foot RS-232 and USB cables included
Power Management SoftwareEaton Intelligent Power Software Suite CD (included)
Environmental & Standards
RoHS ComplianceYes
Audible Noise<55 dB at 1 meter
Operating Temperature0 to 35°C (32°F to 90°F)
Safety markingsCE/cULus/NOM
EMC MarkingsIEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Storage Temperature0 to 40°C (32°F to 104°F)
Relative Humidity0–90% non-condensing

Selecting the Right UPS

Eaton's power management solutions are based on protecting the nine most common power problems present in any environment. This unique approach makes your product selection decisions about power protection much simpler. The nine power problems listed below are potentially harmful to both your data and your hardware. Eaton's products offer three levels of power protection:

Series 3, Series 5 and Series 9. Based on the parameters defined by your application, you can select an uninterruptible power system (UPS) from the series that best matches your power protection needs.

To provide maximum power protection, Eaton offers a full line of Series 9 UPSs with both single-phase and three-phase models in the Series 9 family.

Within each Series, Eaton has created 3 classes of products; to provide "Good, Better and Best" levels of features and performance and enable the best product fit for any application and budget.

Series 3 Standby UPS: Backup power

The Eaton's series 3 UPS primarily protects against three of the nine power problems including power failures, power sags and power surges. This essential, cost-effective protection is necessary in order to prevent damage such as data loss, file corruption, hardware damage and equipment shutoff. For example, if your utility fails you could lose all of your work-in-progress. The Series 3 UPS offers a degree of protection against the remaining power problems and is most commonly used to protect single workstations and point-of-sale (POS) equipment.

Series 5 Line Interactive UPS: Keeping it smooth

Eaton's series 5 UPS are most effective against five power problems (power failures, power sags, power surges, under-voltage and over-voltage) and offer a degree of protection against other power problems. Some of the damages you risk by not using a Series 5 UPS include premature hardware failure, data loss and corruption, data error, keyboard lockup, storage loss and system lockup. Series 5 UPSs are recommended for small network systems - all the way up to enterprise networking environments.

Series 9 On Line Double Conversion UPS: Total Protection

Eaton's series 9 UPSs protect against all nine power problems: power failures. power sags, power surges, under-voltage, over-voltage, line noise, frequency variation, switching transients and harmonic distortion. Eaton's series 9 comprehensive protection minimises the opportunity for component stress, burnt circuit boards, data crashes and program failures. Series 9 UPSs offer the highest level of power protection available and are always recommended for mission-critical applications like server farms, hospitals and Voice Over Internet Protocol (VOIP) applications.
