| Product No. | SST-TR750R-GM |
|---|---|
| Model (safety certification) | SST-AX0750FCGD-7QH |
| Color | Black (lead-free paint) |
| Max. DC Output | 750W |
| Power density | 415.3W/L |
| Load Range | |
| +3.3V | Max. 18A | Min. 0A | Range ±5% | Line Reg. ±1% | Ripple 50mV |
| +5V | Max. 18A | Min. 0A | Range ±5% | Line Reg. ±1% | Ripple 50mV |
| +12V | Max. 62.5A | Min. 0A | Range ±5% | Line Reg. ±1% | Ripple 120mV |
| +5VSB | Max. 3.0A | Min. 0A | Range ±5% | Line Reg. ±1% | Ripple 50mV |
| -12V | Max. 0.3A | Min. 0A | Range ±10% | Line Reg. ±1% | Ripple 120mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 750W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC(PF>0.9 at full load) |
| Efficiency | 87% ~ 89% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over current protection Over voltage protection Short circuit protection Under voltage protection Over Temperature protection |

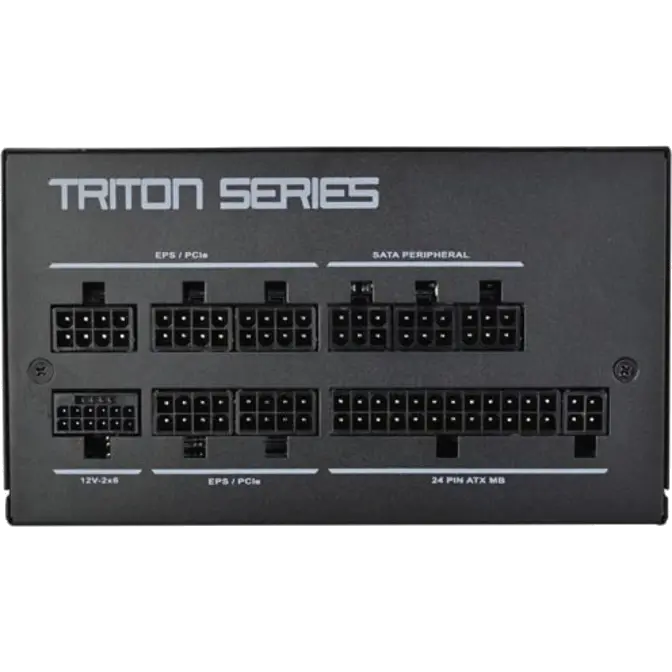

| Connectors | 1 x 24-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 1 x 12+4-Pin 12V-2x6 connector 3 x 8 / 6-Pin PCIe connectors 6 x SATA connector 2 x 4-Pin Peripheral connector |
| Cooling System | Single 120mm HMB bearing fan |
| Noise Level | 18 dBA min. |
| Certification | Cybenetics Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) x 86mm (H) x 140mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 2.0kg |
3 Year
Manufacturers Warranty
