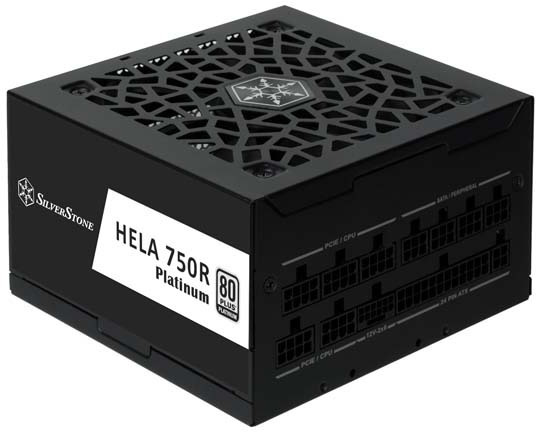

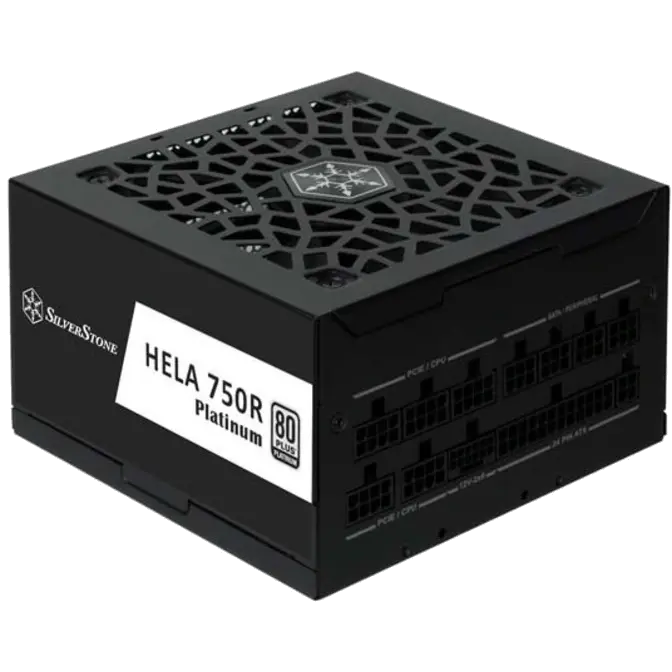

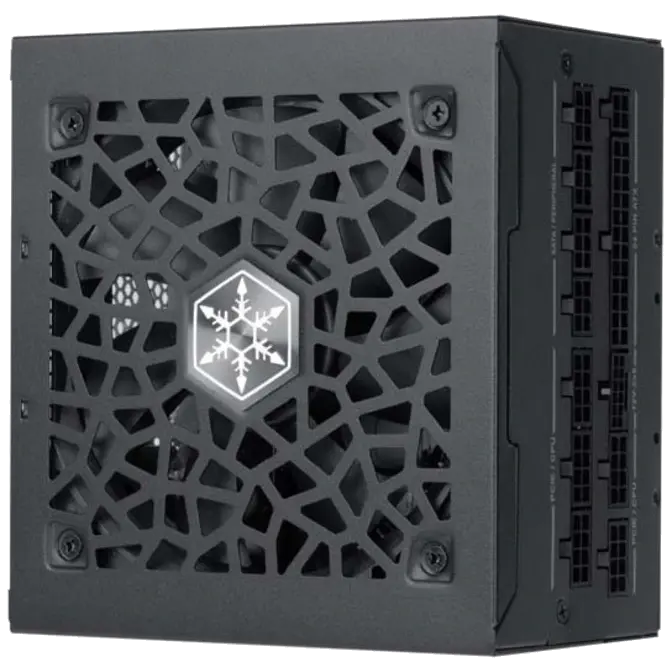

Product No.

SST-HA750R-PM

Model (safety certification)

SST-AX0750MCPT-C

Color

Black (lead-free paint)

Max. DC Output

750W

Power density

415W/L

Load Range

Output	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	20A	20A	62.5A	2.5A	0.3A
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±5%	±5%	+5~-7%	±5%	±5%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC(PF>0.9 at full load)

Efficiency

89% ~ 91% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

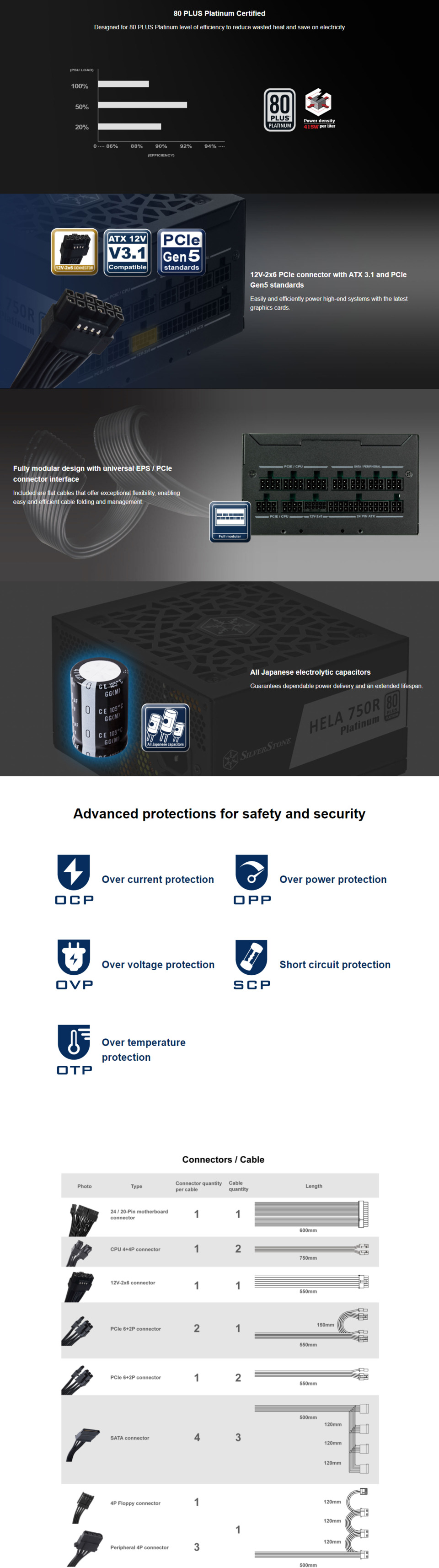

Protection

Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 8-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12V-2x6 connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector

Cooling System

120mm Fluid Dynamic Bearing fan

Noise Level

0 dBA minimum

Certification

80 PLUS Platinum

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 140mm (D)
5.9” (W) x 3.39” (H) x 5.51” (D)

Other
