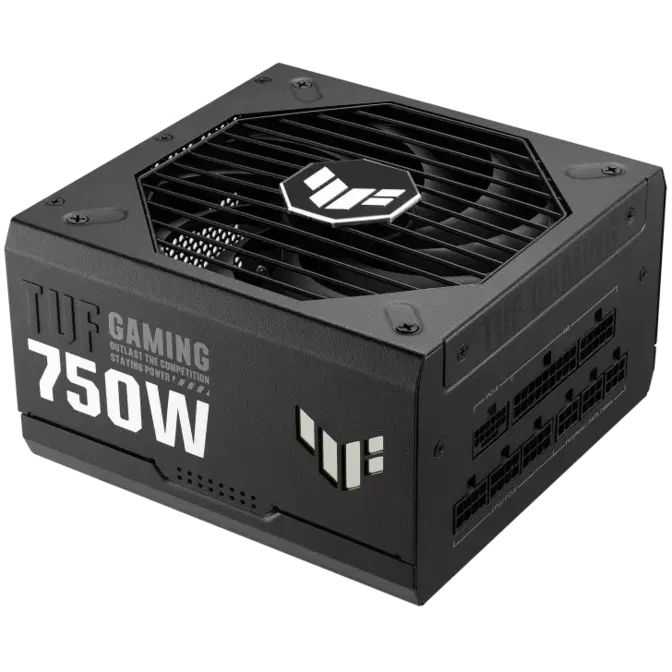

The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
Model
TUF Gaming 750W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS

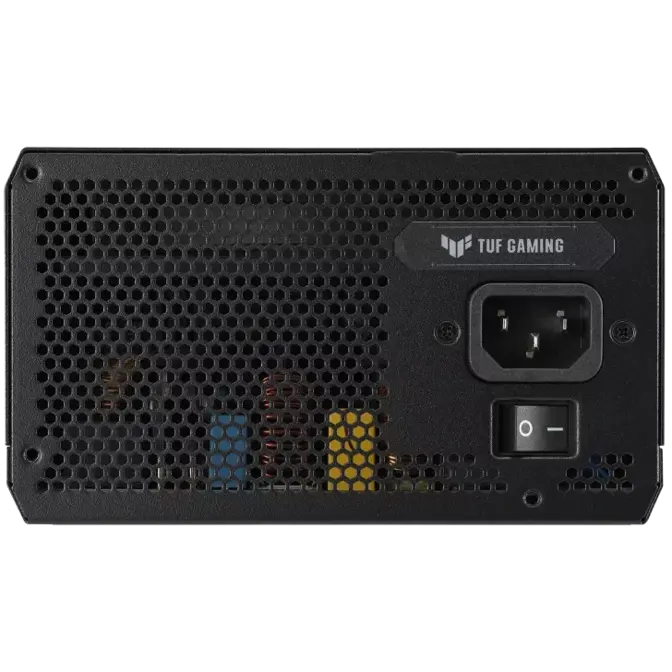

AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A62A 0.8A 3A
Combined Load
130W 130W 744W 9.6W 15W
Total Output
750W

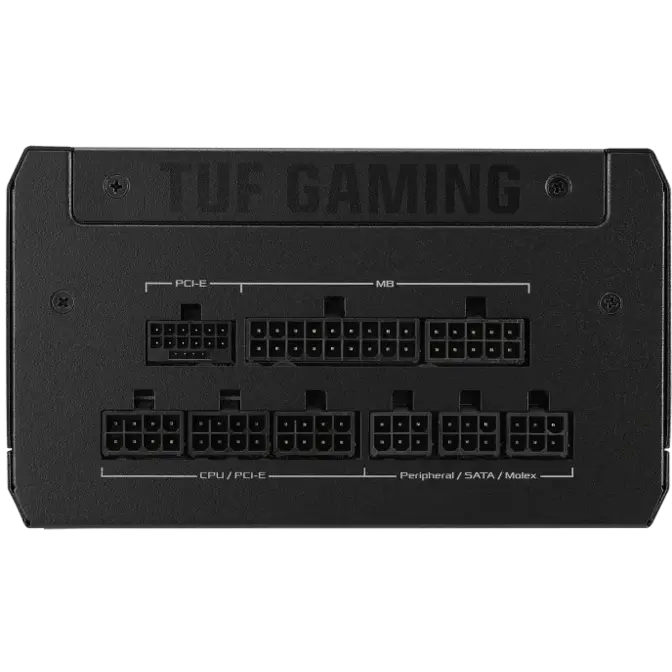

Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Weight
2.38kg (single PSU)
0dB Fan Button
No
