700 Watt SilverStone SFX 80 Plus Platinum Power Supply

Web ID: 26719

Support standard SFX form factor, Silent running 92mm FDB fan with 18 dBA minimum, All Japanese capacitors, High efficiency with 80 PLUS Platinum certification, Class-leading single +12V rail, Strict 3% voltage regulation and low ripple & noise, 100% modular cables, All cable with flexible flat arrays ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SX700-PT
Manufacturer Website

$259

High efficiency with 80 PLUS Platinum certification

Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

All Japanese electrolytic capacitors

Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use

100% modular cable design for easy removal in a case with cable routed and tied down

±3% regulation and low ripple & noise performance for high stability

Flexible flat cables have much greater flexibility to allow for tighter folding and management of cables

Standard SFX form factor

125 mm (W) x 63.5 mm (H) x 100 mm (D)



700 watt silverstone sfx 80 plus platinum power supplyOver current protection 700 watt silverstone sfx 80 plus platinum power supply Over power protection 700 watt silverstone sfx 80 plus platinum power supply Over voltage protection 700 watt silverstone sfx 80 plus platinum power supply Short circuit protection 700 watt silverstone sfx 80 plus platinum power supply Under voltage protection 700 watt silverstone sfx 80 plus platinum power supply Over temperature protection

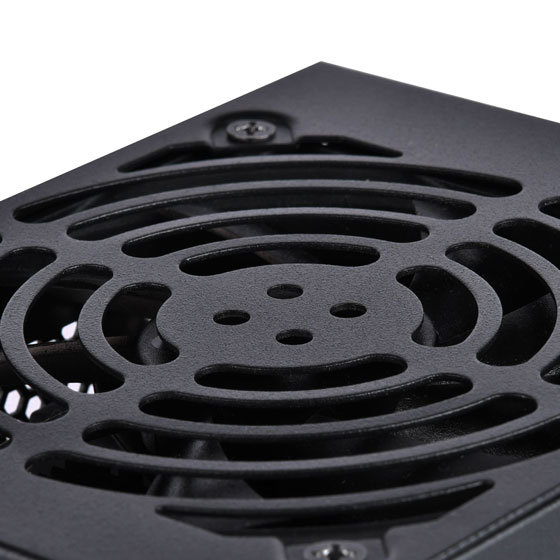

Close up view of fan

Close up view of fan

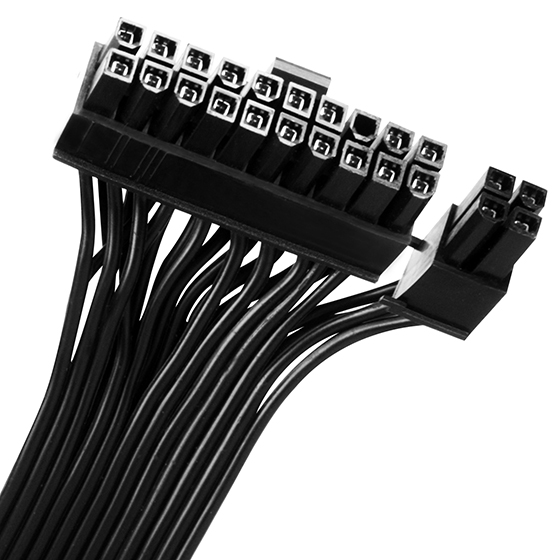

1 x 24 / 20-Pin motherboard connector

1 x 24 / 20-Pin motherboard connector

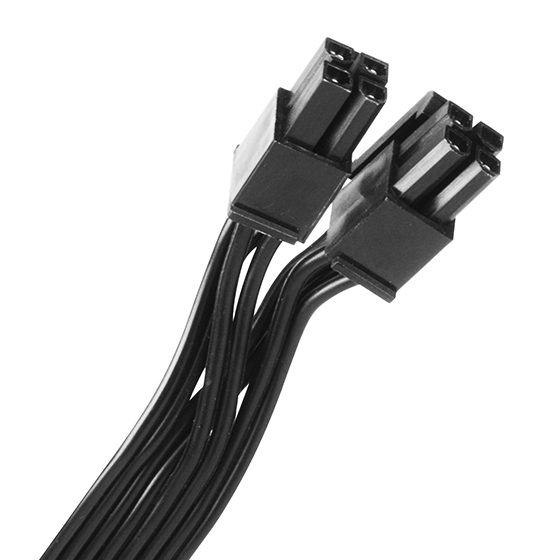

2 x 8 / 4-Pin EPS / ATX 12V connector

2 x 8 / 4-Pin EPS / ATX 12V connector

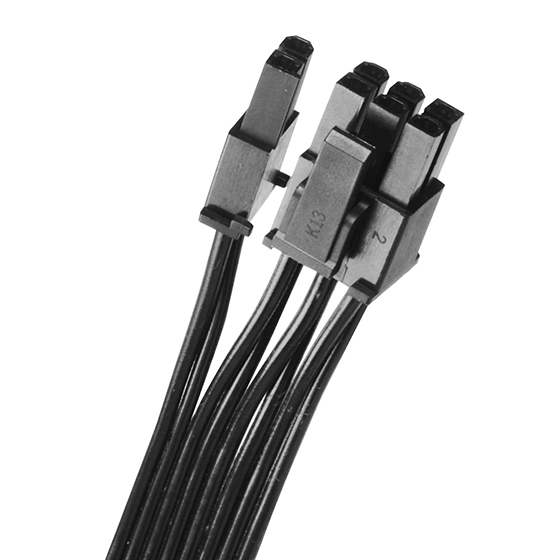

 4 x 8 / 6-Pin PCIE connector

4 x 8 / 6-Pin PCIE connector

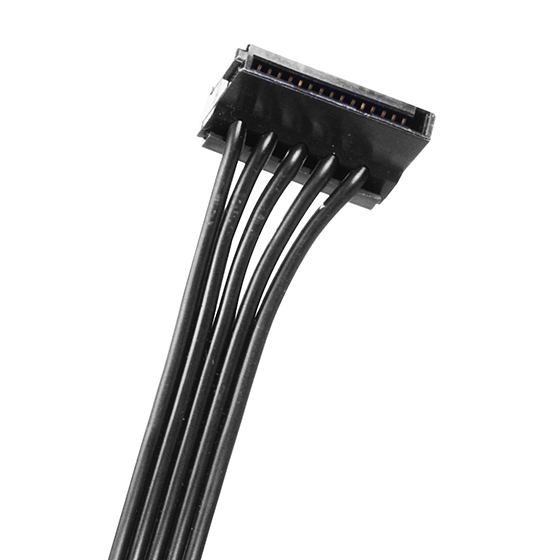

6 x SATA connector

6 x SATA connector

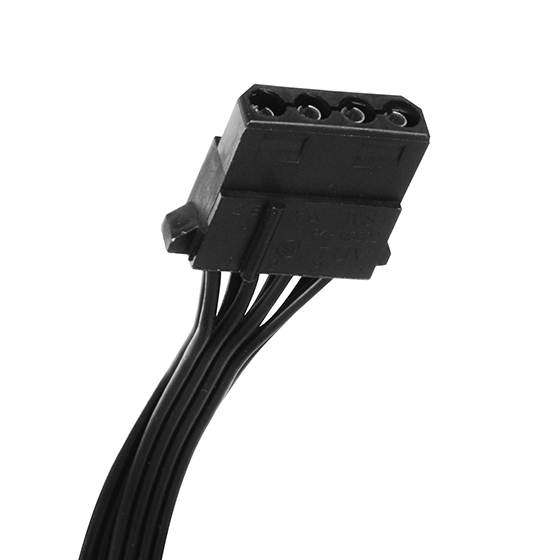

3 x 4-Pin Peripheral connector

3 x 4-Pin Peripheral connector

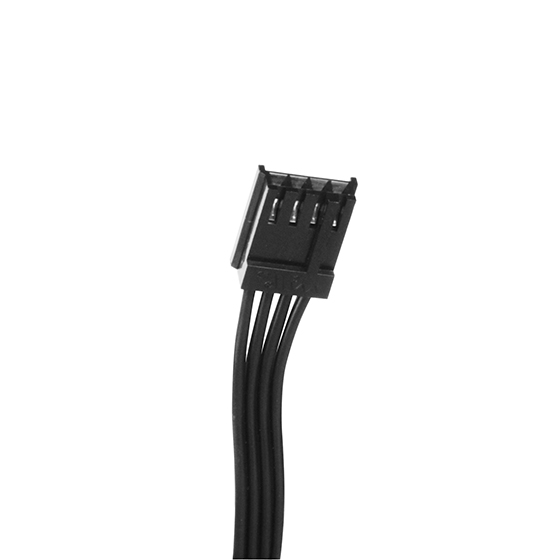

1 x 4-Pin Floppy connector

1 x 4-Pin Floppy connector

SPECIFICATIONS

Model No.

SST-SX700-PT

Max. DC Output

700W

Power density

882W per liter

Load Range



+3.3V +5V +12V +5VSB -12V

Max.(Amps)

22A 22A 58.4A 2.5A 0.3A

Peak (Amps)

/ / / / /

Min.(Amps)

0A 0A 0A 0A 0A

Range (%)

±3% ±3% ±3% ±5% ±10%

Line Reg.(%)

±1% ±1% ±1% ±1% ±1%

Ripple(mVp-p)

50mA 50mA 120mV 50mV 120mV
Color

Black(Lead-Free Paint)

Combined +3.3V & +5V

110W

Combined +12V

700W

Input Voltage

90V ~ 264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC(PF>0.9 at full load)

Efficiency

87% ~ 90% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

Connectors

1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
2 x 8 / 6-Pin PCIE connector (400mm / 150mm)
2 x 8 / 6-Pin PCIE connector (550mm / 150mm)
6 x SATA connector ("300mm / 220mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)

Cooling System

Single 92mm FDB fan

Form factor

SFX

Noise Level

18 dBA minimum

Dimension

125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)

Weight

0.96 Kg

Certification

80 PLUS Platinum

Other

GPU Support list
Compatible with ATX12V v2.4

? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
